Beschreibung

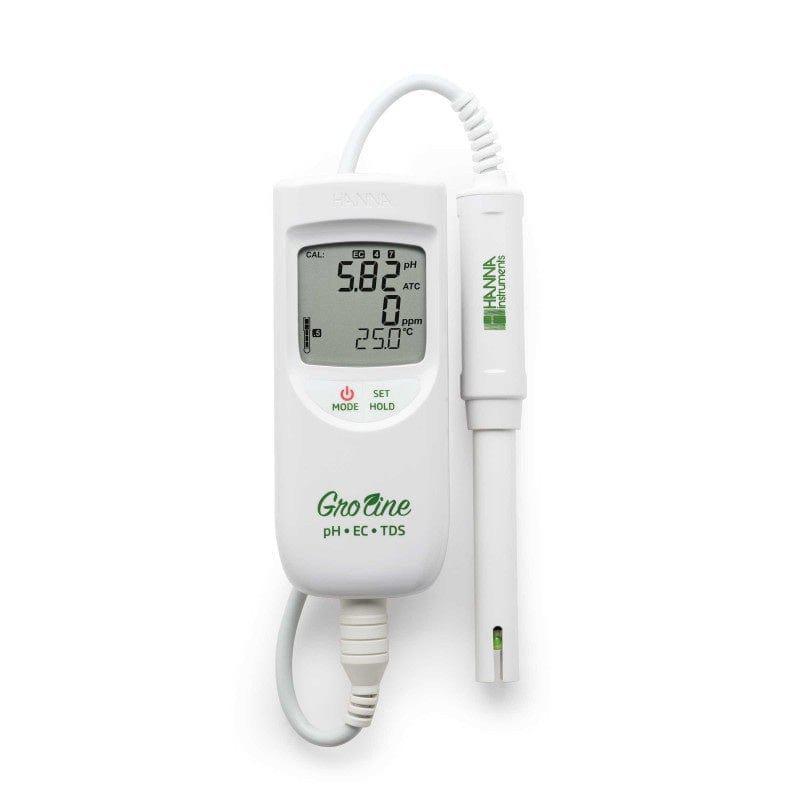

The HI-9814 is a lightweight, waterproof portable pH, conductivity, TDS and temperature meter supplied with a specialist multiparameter probe designed for hydroponics, greenhouse and agricultural applications.
- Compact, robust casing
- Simultaneous readout of pH, EC or TDS and °C
- Simple two-button keyboard
- Waterproof design to withstand the humidity of a growing environment
- Specialist multi-parameter electrode
- Optional green protective rubber holster - HI-710025
The HI-9814 boasts many advanced features that are usually found in more expensive portable meters, including automatic calibration, buffer/standard recognition and temperature compensation. On-screen tutorial messages and indicators for the calibration status and stability can be viewed on the large multi-level LCD display.
What you get:
- HI-9814 is supplied with HI-1285-7 multi-parameter probe
- HI-50036 Quick Cal buffer solution sachet (3)
- HI-700661 pH electrode cleaning solution sachet for agriculture (3)
- 1.5 AAA batteries (3)
- Instructions and instrument quality certificate
The HI-9814 is supplied complete with the HI-1285-7 specialist electrode that features the following key benefits:
- Pre-amplified pH electrode - prevents interference from humidity and sources of electrical noise including circulating pumps, motors and ballasts from grow lights.
- Amperometric EC/TDS sensor - EC/TDS readings are performed by a two-pin amperometric sensor, best suited to low conductivity applications
- Built-in temperature sensor - readings of pH and EC/TDS must be temperature compensated in order to obtain accurate results. The built-in temperature sensor provides a speedy temperature reading which is then used to adjust the pH and EC/TDS results accordingly for higher accuracy.
- Polypropylene body - the durable body of the HI-1285-7 electrode is chemically resistant to many aggressive chemicals used in hydroponics and protects all three sensors.
- DIN Connector - the HI-1285-7 has been specifically designed for use with the HI-9814 meter, the DIN connector means the probe is not interchangeable.
| pH - Range | 0 to 13.00 pH | |
| Resolution | 0.01pH | |
| Accuracy | ±0.02 pH | |
| Calibration | automatic, one or two-points using standard buffers (standard pH 4.01, 7.01, 10.01); one point calibration using quick calibration solution | |
| Conductivity - Range | 0.00 to 6.00 mS/cm | |
| Resolution | 0.01 mS/cm | |
| Accuracy | ±2% F.S. | |
| TDS - Range | 0 to 3000 ppm (500 CF); 0 to 3999 ppm (700 CF) | |
| Resolution | 10 ppm (mg/L) | |
| Accuracy | ±0% F.S. | |
| Temperature - Range | 0 to 50.0°C | |
| Resolution | 0.1°C | |
| Accuracy | ±0.5°C | |
| Temperature Compensation | pH: automatic; ED/TDS: automatic with β set at 1.9%/°C | |
| EC/TDS Calibration | automatic, one point at1.41 mS/cm or 5.00 mS/cm; one point calibration using quick calibration solution | |
| TDS Conversion Factor | 0.5 (500 ppm) or 0.7 (700 ppm) | |
| Electrode | HI-1285-7 polypropylene body, pre-amplified multi-parameter probe with internal temperature sensor, DIN connector and 1m cable | |
| Battery Type/Life | 1.5V (3) AAA / approximately 500 hours of continuous use; auto-off after 8 minutes of non-use | |
| Auto-off | after 8 minutes, 60 minutes, disabled | |
| Environment | -5 to 50°C; RH max 100% | |
| Dimensions | 154 x 63 x 30 mm | |
| Weight | 196g |
