Beschreibung

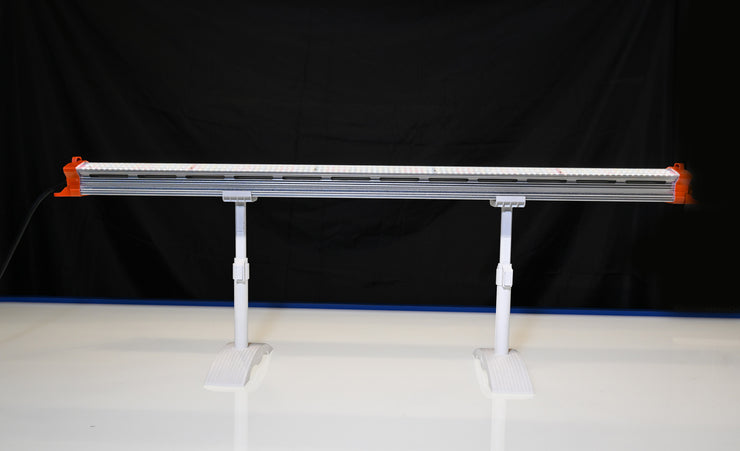

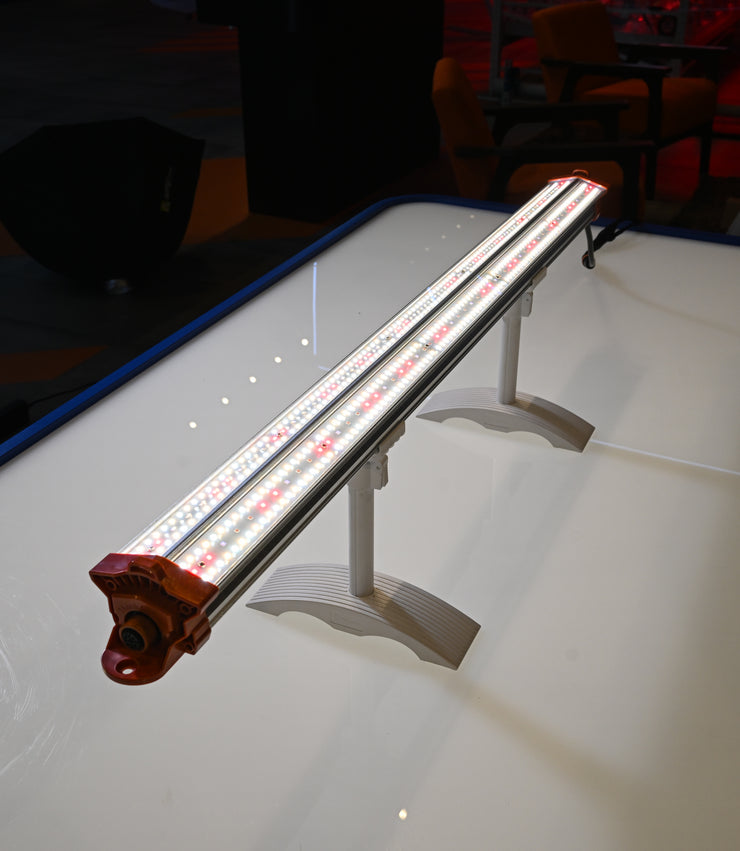

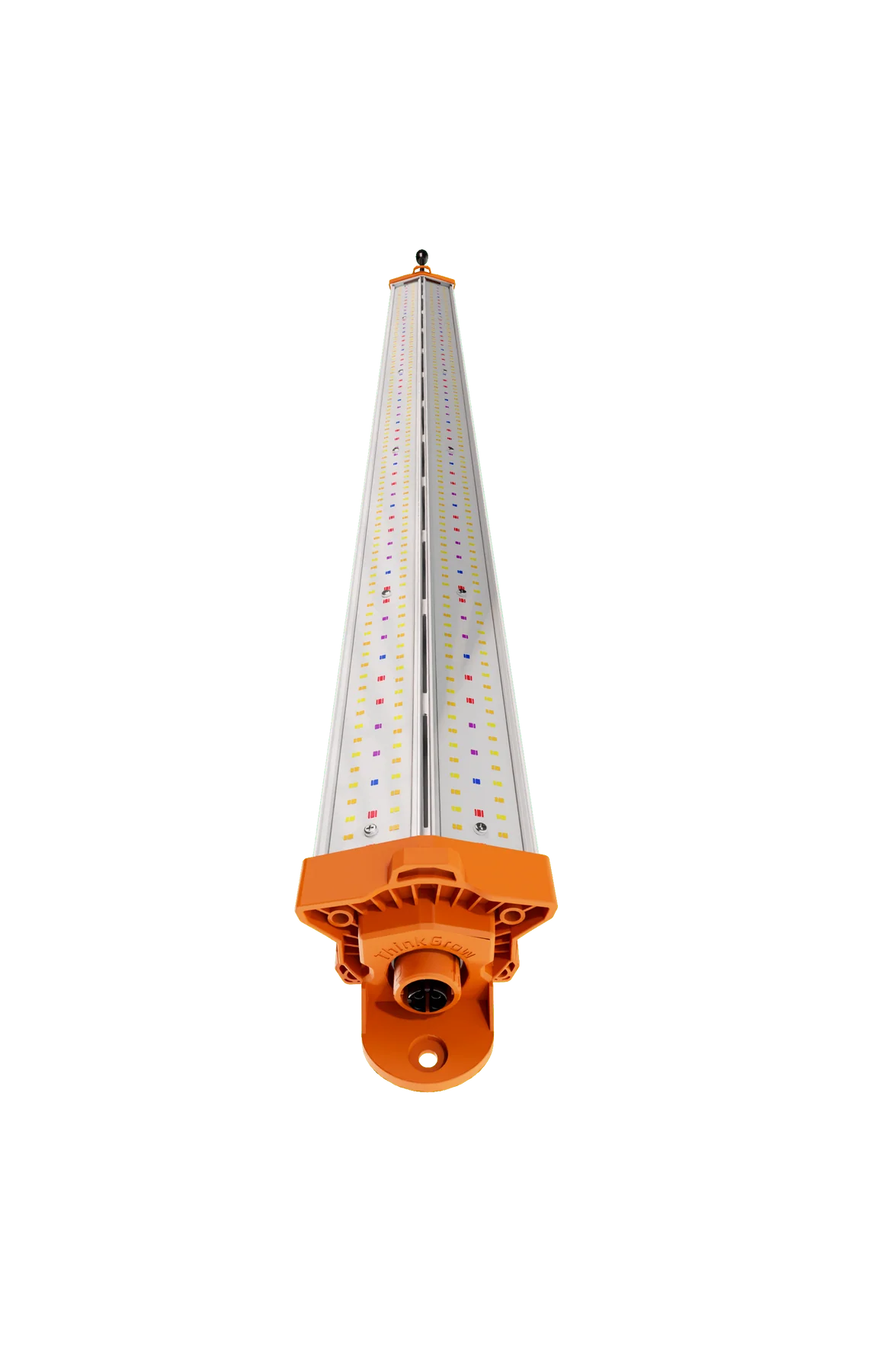

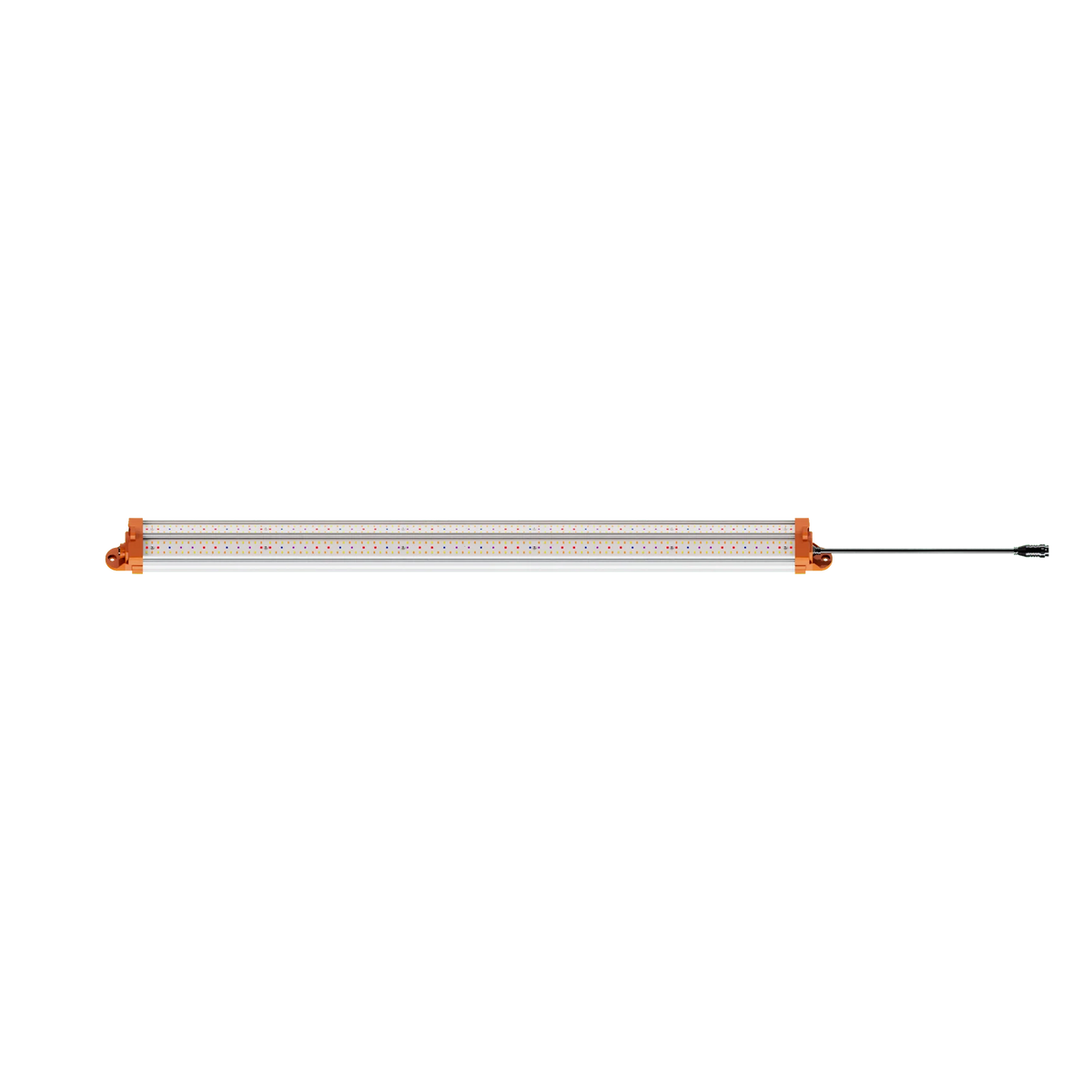

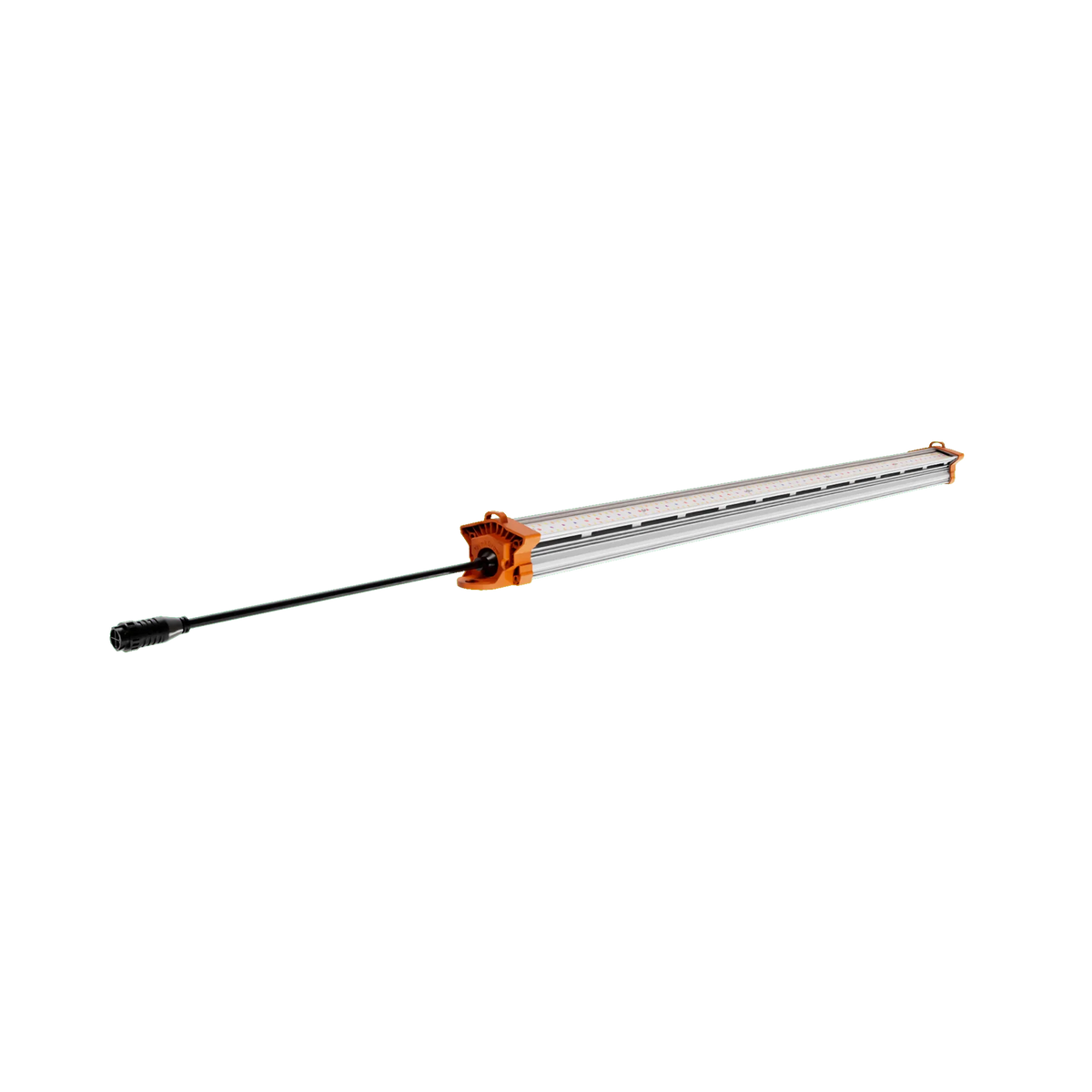

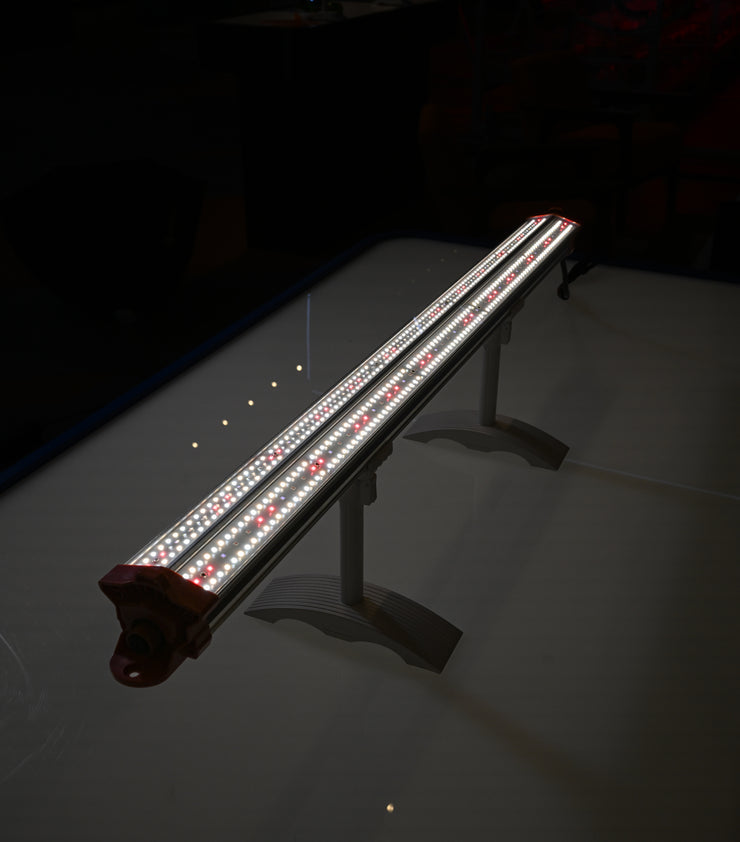

ThinkGrow Model One ICL-150 Multi-Purpose LED Bar – 120 W Driver Built In
One bar, three ways to use it — top, side, or under-canopy lighting, your choice. The ThinkGrow ICL-150 is a 4 ft multi-purpose LED bar with a wide 150-degree beam angle and a built-in 120 W driver, designed to reach the parts of the canopy that overhead lighting alone can't — lower leaves, side branches, and inner bud sites that would otherwise sit in shade. Getting usable light to every part of the plant improves flower development and lifts overall yield and quality.
Where the ICL-300 is purpose-built for deep inner-canopy penetration with its 300-degree spread, the ICL-150's tighter, more directional 150° beam makes it the more flexible option for mixed roles — bridging gaps in top coverage, lighting up side branches, or working the lower canopy, all from the same fixture.
You'll also need a controller adapter. The ICL-150 doesn't plug straight into a TrolMaster controller — it needs a TrolMaster LMA-T lighting control adapter in between. The LMA-T connects to the ICL-150's input jack, then plugs into the controller's Full Spectrum and Far Red ports — one LMA-T can control up to 256 ThinkGrow fixtures.
Important: The ICL-150 is a four-channel fixture (Full Spectrum, Deep Red, Far Red, UV). The two-channel Hydro X Station (HCS-1) can only drive two of those channels — for full four-channel spectrum control, pair the LMA-T with a Tent-X, HCS-2, or HCS-3 controller instead.
*Power cord, stand, and LMA-T controller adapter are all sold separately.
Key Specifications
- Model: ICL-150
- Spectrum: 4-channel — Full Spectrum, Deep Red, Far Red, UV
- Input Power: 120 W (integrated driver)
- Input Voltage: Auto-sensing 100–277V AC
- Power Factor: ≥90%
- PPF: Up to 360 µmol/s
- Efficacy: Up to 3.0 µmol/J
- Coverage Angle: 150°
- Lifetime (L90): >54,000 hours
- IP Rating: IP66 — sealed cover, moisture-resistant
- Working Environment: 0–40°C (32–104°F), ≤90% RH
- Product Dimensions: 1493.6 × 90.2 × 69.2 mm (58.80 × 3.55 × 2.72 in)
- Weight: 3.02 kg (6.66 lb)
- Certifications: ETL (conforms to UL STD.8800), FCC
- Warranty: 5-year manufacturer warranty
- Package Contents: 1× ICL-150 Multi-Purpose LED Bar
Power & Daisy-Chaining
Current draw per fixture depends on your supply voltage, which sets how many ICL-150 bars can run on a single daisy-chain from one power source:
| Supply Voltage | Current per Fixture | Max Fixtures per Chain |
|---|---|---|
| 110V~ | 1.1A | 8 |
| 120V~ | 1.0A | 9 |
| 208V~ | 0.58A | 15 |
| 220V~ | 0.55A | 16 |
| 240V~ (UK mains) | 0.5A | 17 |
| 277V~ | 0.43A | 20 |
On standard 240V UK mains, that's up to 17 ICL-150 bars on one daisy-chain before you need a second power run. Each fixture links to the next via its male/female data port — position one fixture's input right next to the previous fixture's output and lock them together.
Controller Compatibility
- Works with the full TrolMaster Hydro-X family (HCS-1, HCS-2, HCS-3) and Tent-X (TCS-1) — via an LMA-T adapter, which can control up to 256 ThinkGrow fixtures from a single unit
- On HCS-2, HCS-3, and Tent-X, unlocks advanced 4-channel spectrum tuning — Full Spectrum, Deep Red, Far Red, and UV adjusted independently to create custom light recipes
- On the entry-level HCS-1, only 2 of the 4 channels (Full Spectrum + Far Red) can be controlled
Applications & Benefits
- Fills gaps in top-canopy coverage or works as dedicated side- or under-canopy lighting
- Wide 150° beam spreads light further than a narrow-angle bar for flexible placement
- Improves photosynthetic efficiency without additional heat load
- Ideal for vertical racks, multi-tier systems, and dense plant canopies
- Sealed IP66 cover protects the lamp beads in humid grow room conditions
- Daisy-chainable up to 20 fixtures per run for large multi-bar setups
For growers looking to plug lighting gaps anywhere in the canopy, the ThinkGrow ICL-150 delivers the same four-channel precision as the ICL-300 in a more flexible, multi-purpose format.
