Description
The new MKII from DimLux is engineered to be one of the most advanced indoor HPS fixtures available. Designed in the Netherlands, this lighting system delivers exceptional efficiency, consistent output and a smarter ballast platform that outperforms traditional HID systems.
The manual can be found here.
The MKII series continues DimLux's reputation for building some of the finest indoor grow lights in the industry. Every component is designed to maximise output, improve lamp stability and deliver easier day to day operation.
DimLux ballasts use smart ballast technology to maintain optimal lamp performance over time. As the lamp ages, the ballast automatically adjusts voltage and current to keep light output consistent. This reduces lumen drop and helps your lamp run at its best for significantly longer than standard HID systems.
With your lamp operating at peak levels, replacement frequency is reduced. Many growers see optimal performance for two years or more from a single lamp, making the MKII an excellent long term investment.
DimLux Expert Series MKII Features
Unparalleled digital ballast efficiency: 97 percent efficient and around 30 percent smaller and lighter than previous Expert Series models.
Includes DimLux Xtreme DE HPS bulb rated for 400V 1000 to 1250W performance.
• Standard equipped with the new Ultra Optics Hybrid 98 Reflector. This reflector delivers 98 percent reflectivity. Combined with a premium Philips lamp, output reaches up to 2107 micromoles per second PPF.
• Boost mode increases lamp output by up to 20 percent, achieving as high as 2528 micromoles per second PPF when boosted to 1200W.
• Single push button for adjusting power levels in clear steps of 500, 600, 700, 800, 900, 1000, 1100 and 1200W.

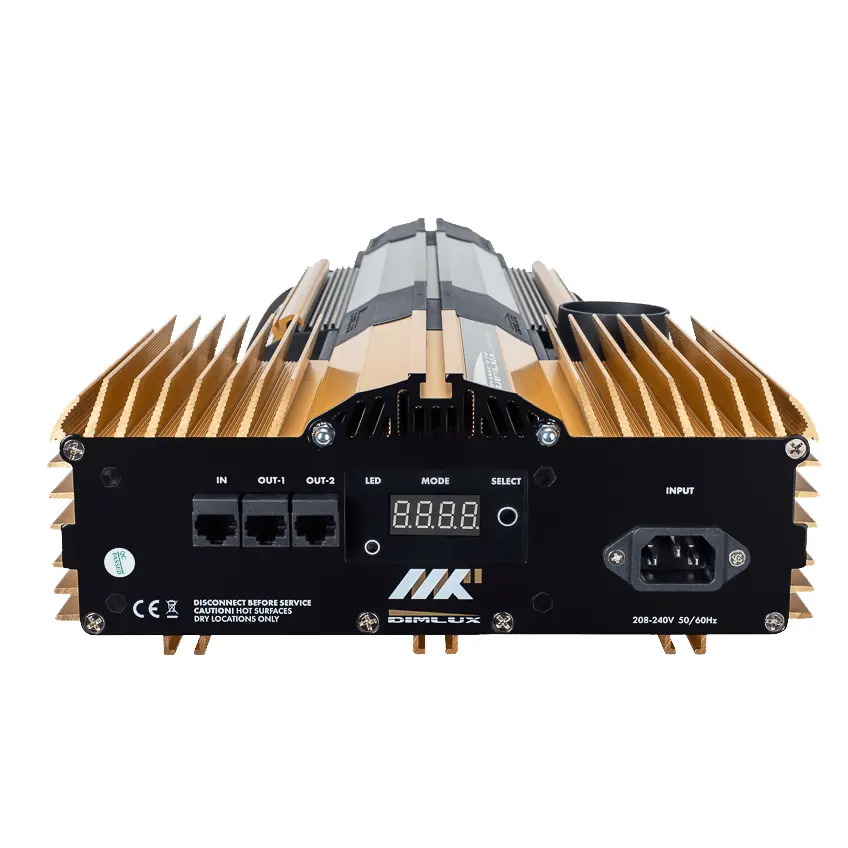

• Upgraded four character display with scrolling text for complete status and error messages.
• Fully enclosed ballast housing for improved protection against moisture and dust.
• Compatible with the Maxi Controller for remote control, sunrise and sunset modes and multi fixture synchronisation.
• Integrated Smartport for accessories such as a plant temperature camera, humidity sensor and other compatible devices.
Power and Control
600 to 1200W adjustable output
On and off switching plus stepless dimming when used with the Maxi Controller
Soft start for low inrush current, with zero inrush when paired with the Maxi Controller
Soft dim technology for smooth transitions
Dim levels include Soft Off, 600W, 700W, 800W, 900W, 1000W, 1100W and 1200W
Ultra high frequency output for stable lamp ignition and consistent performance
Diagnostic display provides real time system information
Electrical and Output Specifications
Input voltages: 240V or 277V
Input power at 240V (100 percent): 1035W
Input power at 240V (120 percent boost): 1242W
Input current at 240V (100 percent): 4.5A
Input current at 240V (120 percent boost): 5.4A
Frequency: 50 to 60 Hz
Power factor: 0.99
System PPF at 1000W: 2107 micromoles per second
System PPF at 1200W: 2528 micromoles per second
Illumination Surface
At 1000W: minimum 1.4 square metres (15.06 square feet), maximum 3.3 square metres (35.52 square feet)
At 1200W: minimum 1.65 square metres (17.76 square feet), maximum 4 square metres (43.05 square feet)
50mm extraction port connection
Controller compatibility: Maxi Controller
Dimensions: 25 x 10.75 x 5 inches
Weight: 13 lbs
Compatible Lamps
Philips Green Power 1000W,
BLV Horturion 1000W 400V DE Metal Halide,
BLV Horturion 1000W 400V DE EL 2.2 Plus
The DimLux Expert Series MKII is built for growers who need maximum light output, full digital control and long term performance from a premium HPS system.
