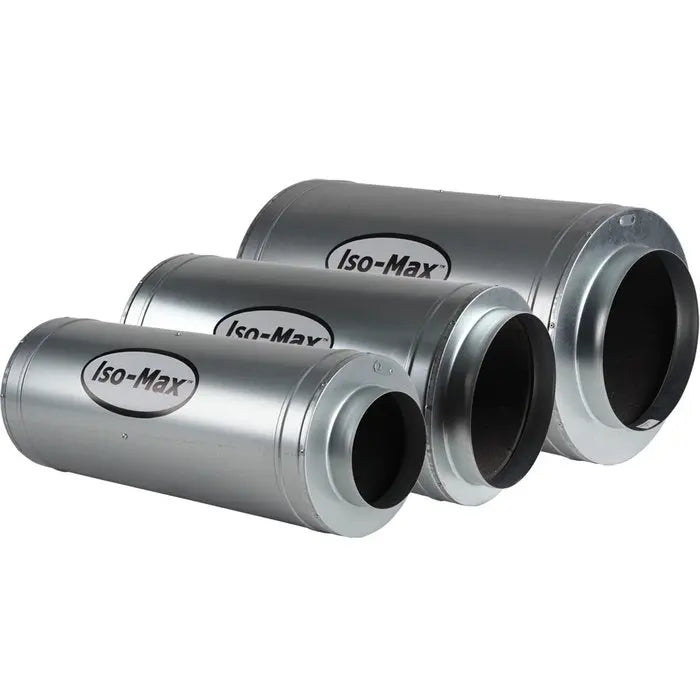

IsoMax Acoustic Fan

CANSKU: 1003

Size: 6" 3 speed - 310 / 360 / 410 m3/hr
Price:
Sale price$294.00

Description

Iso-Max is a totally unique diagonal tube fan, designed to be efficient, powerful and silent. Iso-Max, like Max-Fan, uses the stator-rotor system that enables it to be efficient, air performance and power consumption wise.

However, Iso-Max is a particular type of fan, because it is a fan, integrated into a silencer. It has a full metal housing and for noise-reduction, a special type of foam is added. Its low weight, strong air performance and quietness makes Iso-Max the most advanced choice for a ventilation application.

  • Silent, High airflow extractor fan
  • Integrated silencing technology
  • Energy saving
  • Excellent build quality
  • Available in a range of sizes up to 14 inch

Specifications:

6-Inch

Airflow: 310/30/410 m3/hr

Current: 0.2 amps

Power consumption: 52 watts

Full diameter: 230mm (9 inches)

Length: 680mm (26.7 inches)

Weight: 5.86kg (12.9 lb)



8-Inch- Controller

Airflow: 570/770/870m3/hr

Noise level: 55db

Current: 0.36/0.4/0.6 amps

Power consumption: up to 128 watts

Full diameter: 260mm

Length: 680mm

Weight: 7.7kg



8-Inch

Airflow: 870m3/hr

Noise level: 55db

Current: 0.36/0.4/0.6 amps

Power consumption: up to 128 watts

Full diameter: 260mm

Length: 680mm

Weight: 7.7kg



10-Inch

Airflow:1480m3/hr

Noise level: 52db

Current: 0.9 amps

Power consumption: 160 watts

Weight: 10.14kg

Full diameter: 310mm

Length: 680mm



10-Inch-L

Airflow: 2310 m3/hr

Current: 1.7 amps

Power consumption: 290 watts

Full diameter: 350mm (13.77 inches)

Length: 680mm (26.77 inches)

Weight: 13.34kg



12-Inch

Airflow: 2380 m3/hr

Noise level: 54db

Current: 1.7 amps

Power consumption: 280 watts

Weight: 13.33kg

Full diameter: 350mm

Length: 680mm



12-Inch-L

Airflow: 3260 m3/hr

Noise level: 61db

Current: 530 watts

Power consumption: 3.2 amps

Weight: 18.52kg

Full diameter: 350mm

Length: 680mm
