Frequently Asked Questions
What is the difference between the single, twin and triple pack?
The twin and triple packs are two or three identical S4 fans in one order. Each one is the same AC-CCS4 as the single, so the specs match. The packs cost a little less than buying the same number of singles.
How much airflow does the Cloudray S4 give?
AC Infinity rates the S4 at up to 204 CFM and 29 dBA. It has 10 speed levels, so you can run it well below maximum when all you need is a gentle breeze.
What are the wind modes and oscillation settings for?
AC Infinity gives the S4 10 dynamic wind modes and 10 oscillation settings. The wind modes are designed to imitate a natural outdoor breeze instead of one constant stream of air. The oscillation settings change how wide the head sweeps, from a narrow area to wide coverage.
Can I control the S4 from the AC Infinity app?
The S4 is part of AC Infinity's UIS platform. With a compatible UIS controller you can use the AC Infinity app over WiFi for timers, schedules and climate triggers.
Can I run the S4 24 hours a day?
Yes. It has a miniaturised EC motor with dual ball bearings and is designed for long running hours in a grow tent. The listed life expectancy is 67,000 hours.
Is the S4 suitable for a humid grow tent?
Yes. AC Infinity gives it an IP54 rating, which covers dust and splashing water, so normal tent humidity is fine. Keep it out of direct spray and never submerge it.
How does the S4 compare with the S6 and S9?
The S4 is the smallest of the three, a 4 inch fan at up to 204 CFM and 29 dBA. AC Infinity lists the S6 at 325 CFM and the S9 at 405 CFM and 35 dBA. Choose by tent size and how much air you need to move. The S4 suits small tents and tight spaces.
Description
The AC Infinity CLOUDRAY S4 is an ultra-compact 4" grow tent clip fan engineered for serious airflow performance in tight grow spaces.
Built with a long-life EC motor and high static pressure design, the CLOUDRAY S4 outperforms many larger clip fans while maintaining an ultra-compact footprint.
Simple Mans Definition Of What This Does: Moves air properly so your plants grow stronger, healthier, and without weak stems or stagnant hotspots.

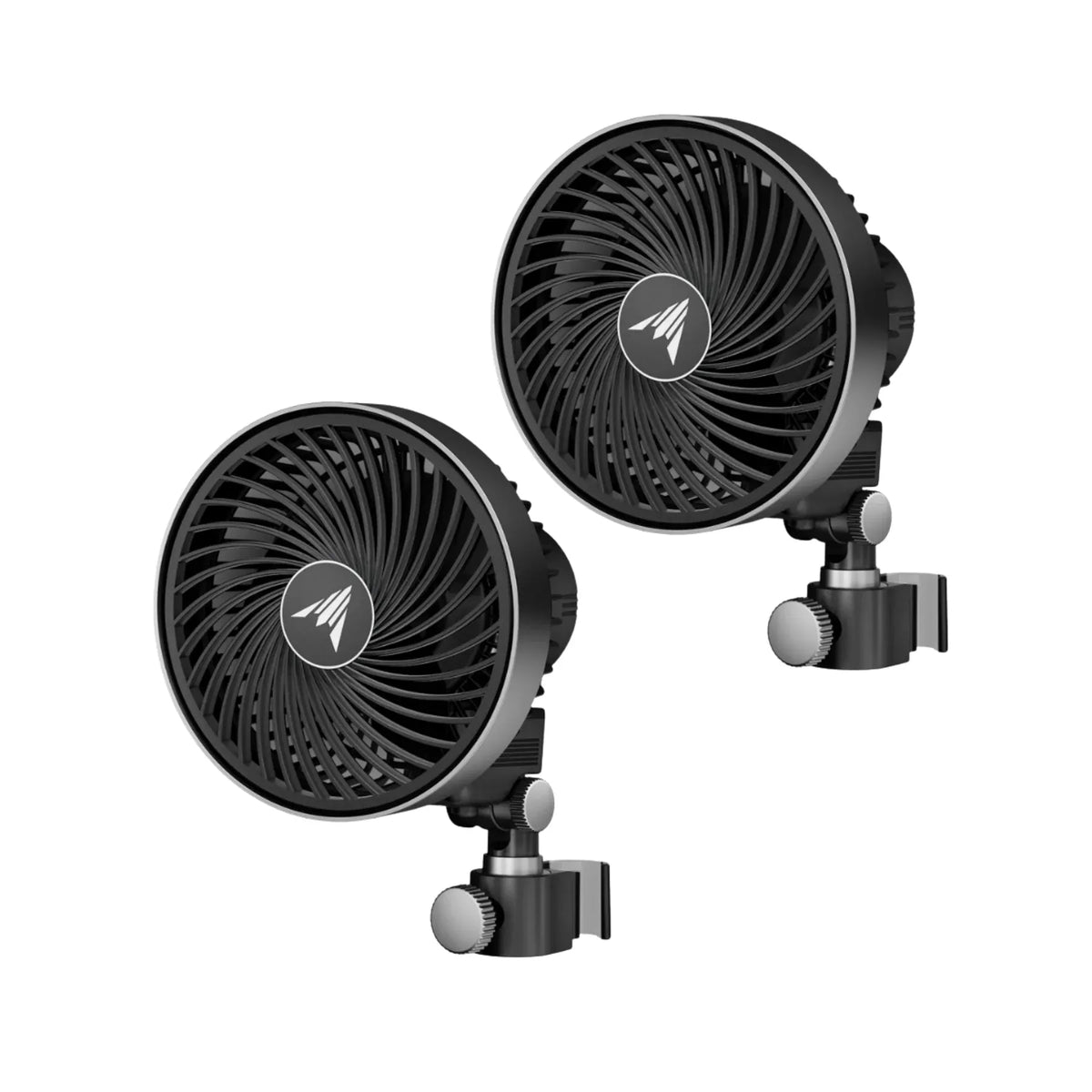

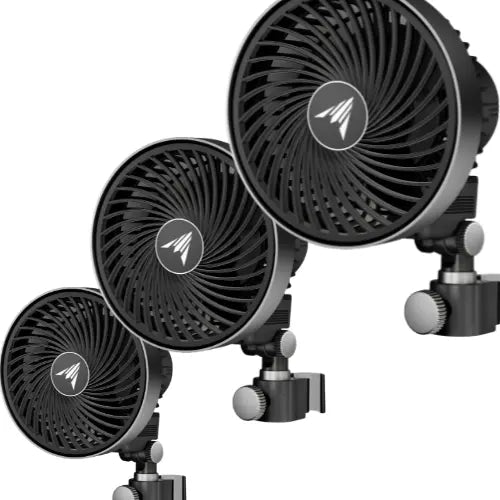

Single, twin or triple pack
Choose a single S4, a twin pack or a triple pack. Each pack is identical S4 fans in one order, handy for putting one low and one high, or for covering a tent from both ends.
Not sure which fan is right for you?
Browse our dedicated fan collections. We've got every type covered.
Why Choose the CLOUDRAY S4?
- Ultra-compact 4" impeller for tight grow tents
- 204 CFM maximum airflow for powerful circulation
- 10 digital speed levels for precise airflow control
- 10 dynamic wind modes to simulate natural outdoor breeze
- 10 automatic oscillation settings for targeted or wide coverage
- High static pressure design for superior performance in restricted spaces
- Miniaturised EC motor with dual ball bearings for extended lifespan
- IP54 rated for protection against humidity and dust
- Part of the UIS platform for smart controller and app integration
Compact Engineering. Serious Output.
Despite its small size, the specialised high static pressure motor generates greater wind velocity than many larger clip fans. The EC motor with carbon steel gears and dual-ball bearings ensures consistent performance, efficiency, and an impressive 67,000-hour life expectancy.
Technical Specifications
| Model | CLOUDRAY S4 (AC-CCS4) |
| Impeller Size | 4.0 inches |
| Maximum Airflow | 204 CFM |
| Noise Level | 29 dBA |
| Power | 11 W |
| Water Resistance | IP54 Rated |
| Oscillation | Automatic, 10 Levels |
| Life Expectancy | 67,000 Hours |
Built for Modern Growers
As part of AC Infinity's UIS ecosystem, the CLOUDRAY S4 integrates with compatible smart controllers and the AC Infinity app over WiFi. This allows complete environmental automation and remote airflow control.
