Frequently Asked Questions
How is displayLINK powered?
By Power over Ethernet (802.3af/802.3at) over a single RJ45 cable, which carries power and data together. The supplied DC adapter is the alternate option if you are connecting over Wi-Fi instead of PoE.
Where should I mount displayLINK?
In the hallway outside the grow room, beside the entry, not inside the grow room itself. Grow room humidity and wash-down will shorten the panel's life.
What does Nova AI do on the panel?
Nova is Growlink's built-in AI assistant. Ask it what changed in the room and what to do next, and it answers from your live Growlink data.
Can displayLINK run other apps?
Yes. Alongside the standard room dashboard, it runs any app built on the Growlink Builder platform full-screen.
Does displayLINK need its own climate sensors to work?
It has on-board temperature, humidity and light sensing, but its dashboard is built to show live data from your connected Growlink sensors in that room. On-panel readings can differ slightly from room sensor data, since the panel reads hallway air and picks up its own heat.
What's the warranty on displayLINK?
One year, supported through Growlink's own technical service.
Description

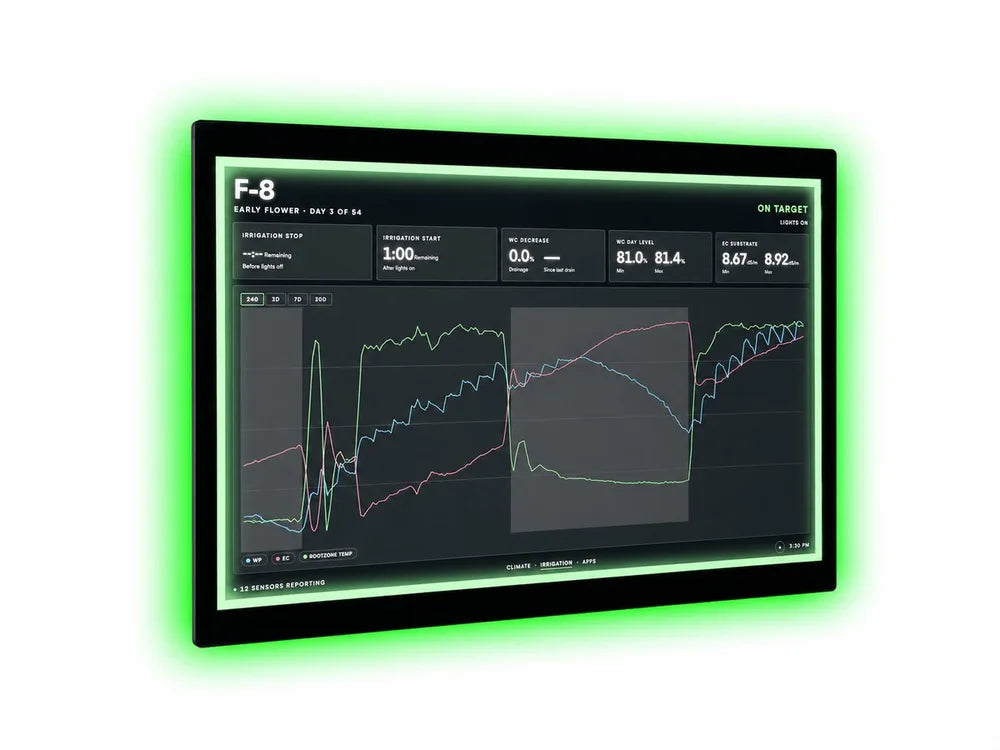

displayLINK is Growlink's dedicated 15.6" grow room panel: an always-on touchscreen display built to put live climate, irrigation and alert data on the wall of every room, powered by a single Ethernet cable.
Always On, Right Where You Work

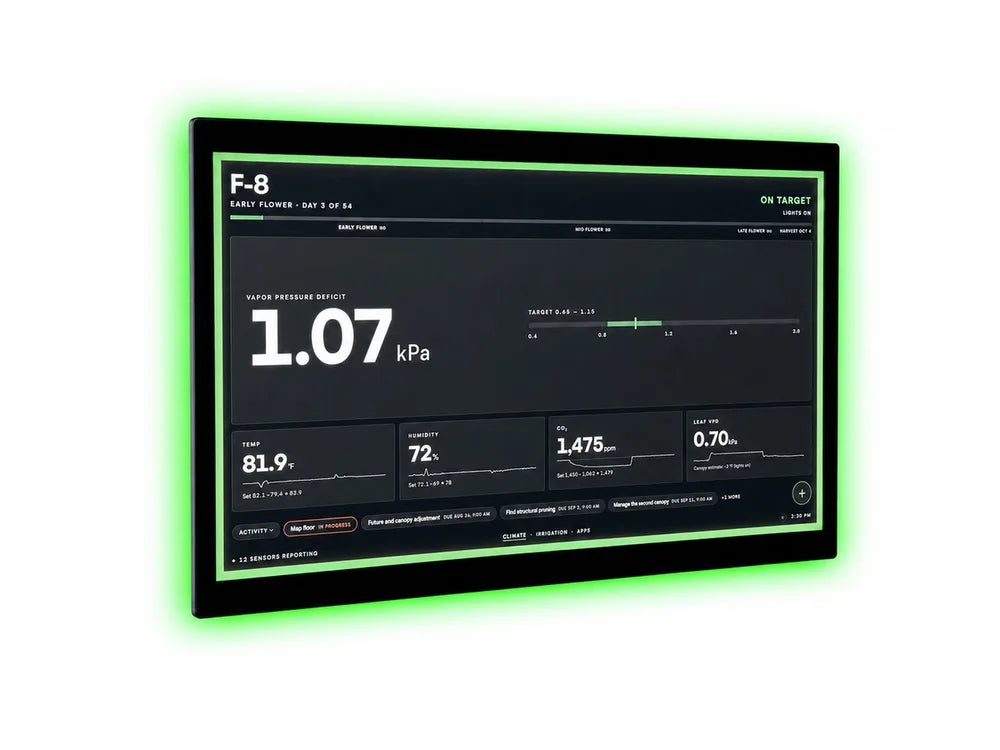

No more reaching for a phone to check a room. displayLINK runs a full HD, 10-point touch display showing temperature, humidity, VPD and CO2 against target, alongside live alerts from Nova, Growlink's built-in AI assistant.
Key Features
- Full HD touch display: 15.6" screen at 1920 x 1080, 10-point capacitive touch.
- One-cable install: Power over Ethernet carries power and data down a single RJ45 cable, with a DC adapter available as an alternative.
- Senses the room: on-board temperature, humidity and light sensing, plus a 5 MP camera.
- Nova AI, on the wall: ask Nova what changed in the room and what to do next, answered from your live Growlink data.
- Runs any Builder app: full-screen support for any app built on the Growlink panel app platform.
- Built-in I/O: relay output, two-channel digital I/O, RS-485/RS-232 serial and an external IR receiver port for tying in other room hardware.
What's in the Box
- displayLINK panel
- Power adapter
- Bracket C (2-point mount) and Bracket U (4-point mount)
- Mounting screws and screwdriver
- User manual
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 15.6", 1920 x 1080 Full HD, 16:9, 10-point capacitive touch |
| Processor | Rockchip RK3566 / RK3576S, 4 GB RAM, 32 / 64 GB storage |
| Software | Android with Growlink panel app, Nova AI built in, runs any Builder app full-screen |
| Wi-Fi / Bluetooth | Wi-Fi 6 (802.11a/b/g/n/ac/ax), Bluetooth 5.3 |
| Ethernet | RJ45 with PoE |
| Interfaces | 1 x relay, 2-channel digital I/O, RS-485/RS-232 serial, external IR receiver, USB-C with OTG |
| Sensing | Temperature and humidity, ambient light sensor, 5 MP camera |
| Audio | 4-mic array, 2 x 2 W speakers |
| Status indicator | RGB LED |
| Dimensions | 363.25 x 225.99 x 13.6 mm (14.30 x 8.90 x 0.54 in), 38.15 mm (1.50 in) deep with rear housing |
| Ship weight | 2.95 kg (6.5 lb) |
| Mounting | Bracket U, vertical double-gang box |
| Operating range | 0-40°C (32-104°F), 20-80% RH |
| Compliance | FCC Part 15 Class B, CE, WEEE |
| Warranty | 1 year |
Installation

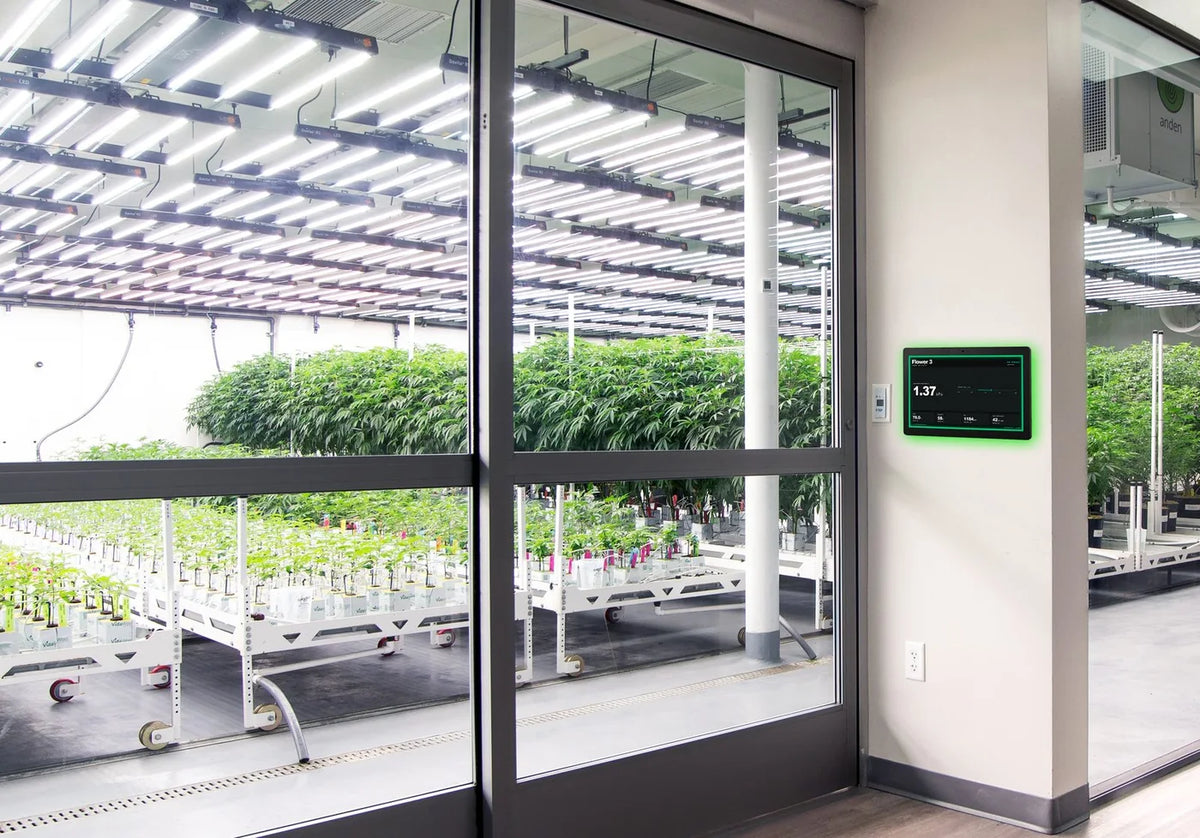

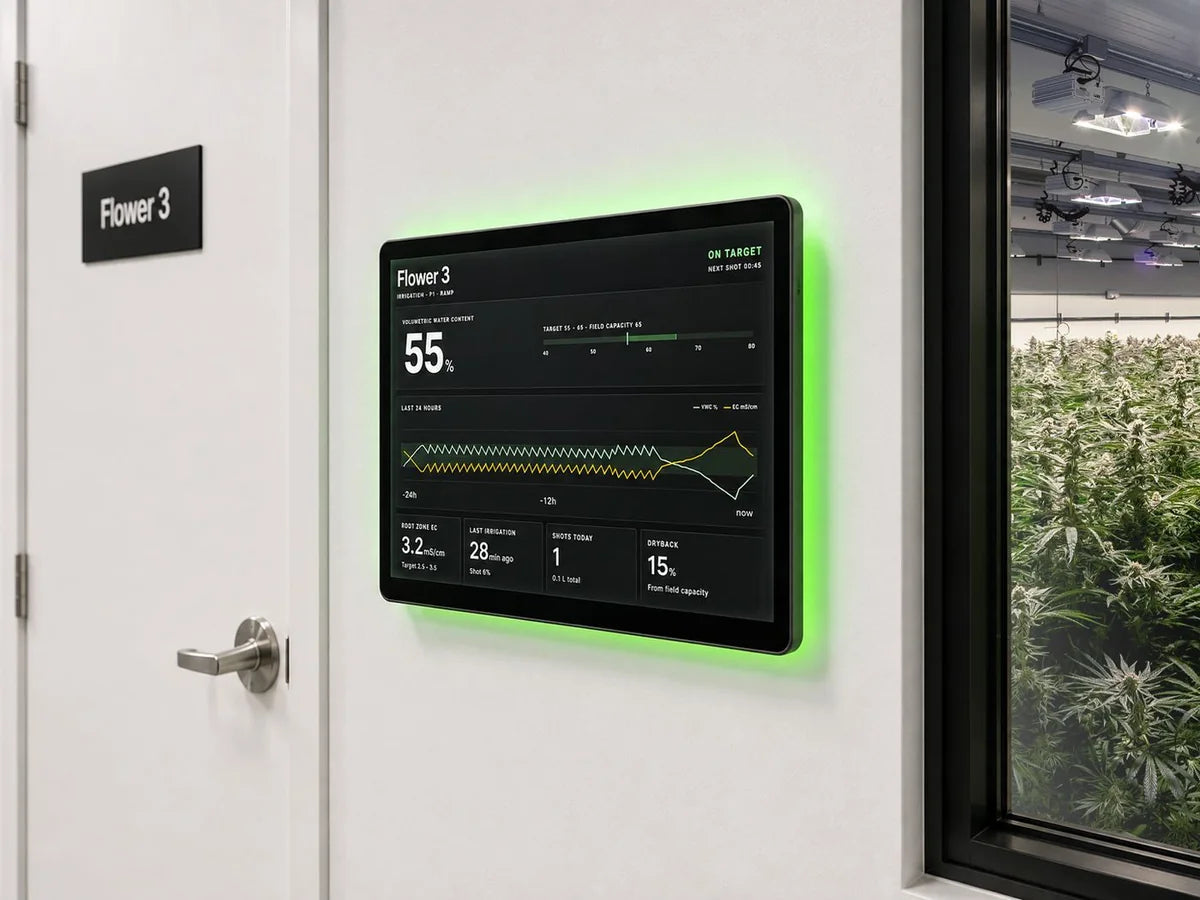

displayLINK mounts to a standard vertical double-gang box using the included Bracket U. Growlink's guidance is to mount it in the hallway outside the grow room rather than inside it, since grow room humidity and wash-down will shorten the panel's life. Once powered, the panel starts in the Growlink setup screen: join the network, sign in with your Growlink account and assign it to a room, and that room's live dashboard loads full-screen.
Who Is This For?
Growers already running Growlink LINKS sensors who want room data visible on the wall without walking back to a laptop, and multi-room facilities where staff need setpoints and alerts at a glance in every room they work in.
See the full Growlink range for the sensors and hubs displayLINK is built to show.
This product is coming soon to The Hydro Bros. It's shown here so you can see what's on the way: final UK pricing and stock availability will be confirmed closer to launch.
