Description
The ControlLED Lighting & Environment Controller is the central control hub for the ControlLED range, designed to manage advanced LED lighting systems with optional environmental control from one intuitive interface.
Compatible with the ControlLED Dio-Tech system.
This controller is designed to work seamlessly with ControlLED fixtures, including the ControlLED Dio-Tech 830W LED Grow Light. When paired together, the controller provides centralised control of dimming, spectrum scheduling, sunrise and sunset simulation, and multi-room operation.
The Dio-Tech Primary unit acts as the master fixture, while the controller allows system-wide automation and monitoring across single or multiple grow spaces.

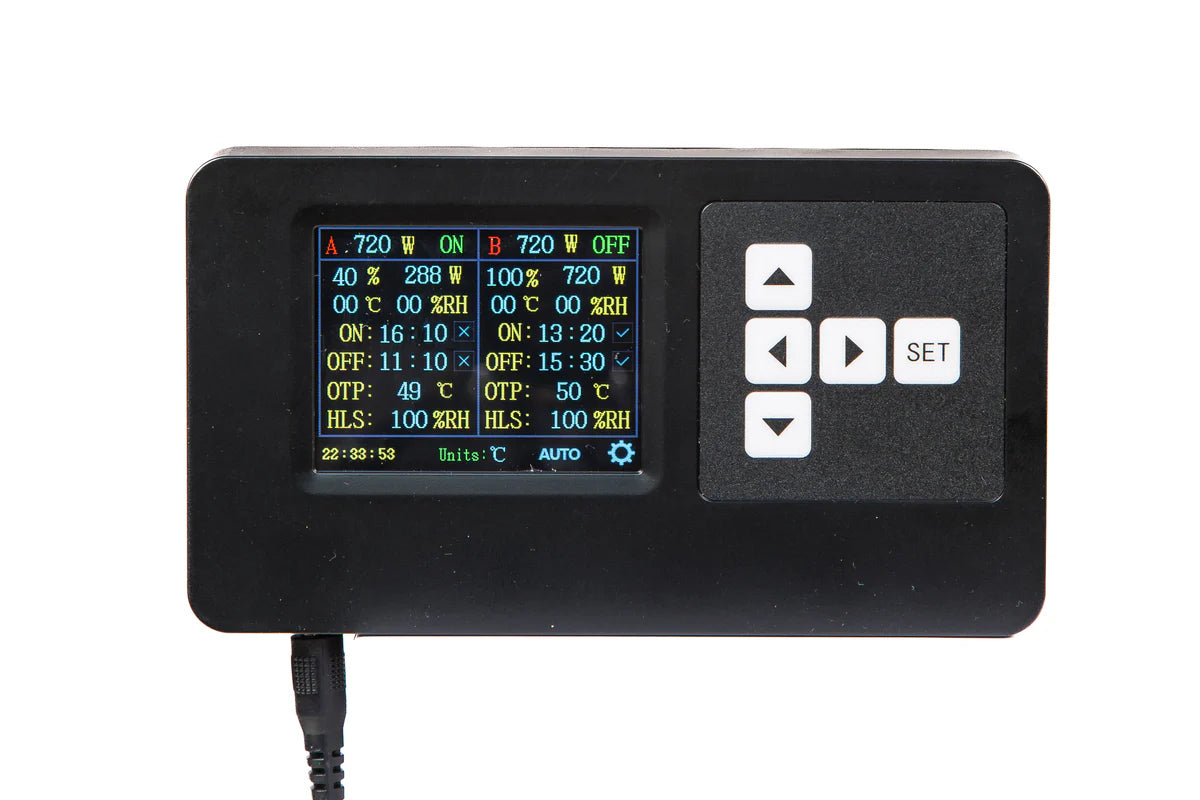

Touch Screen and App Control
The controller features a built in touch screen for fast, simple setup and day to day control. A dedicated smartphone application connects via Bluetooth, allowing growers to monitor and adjust settings directly from their phone.

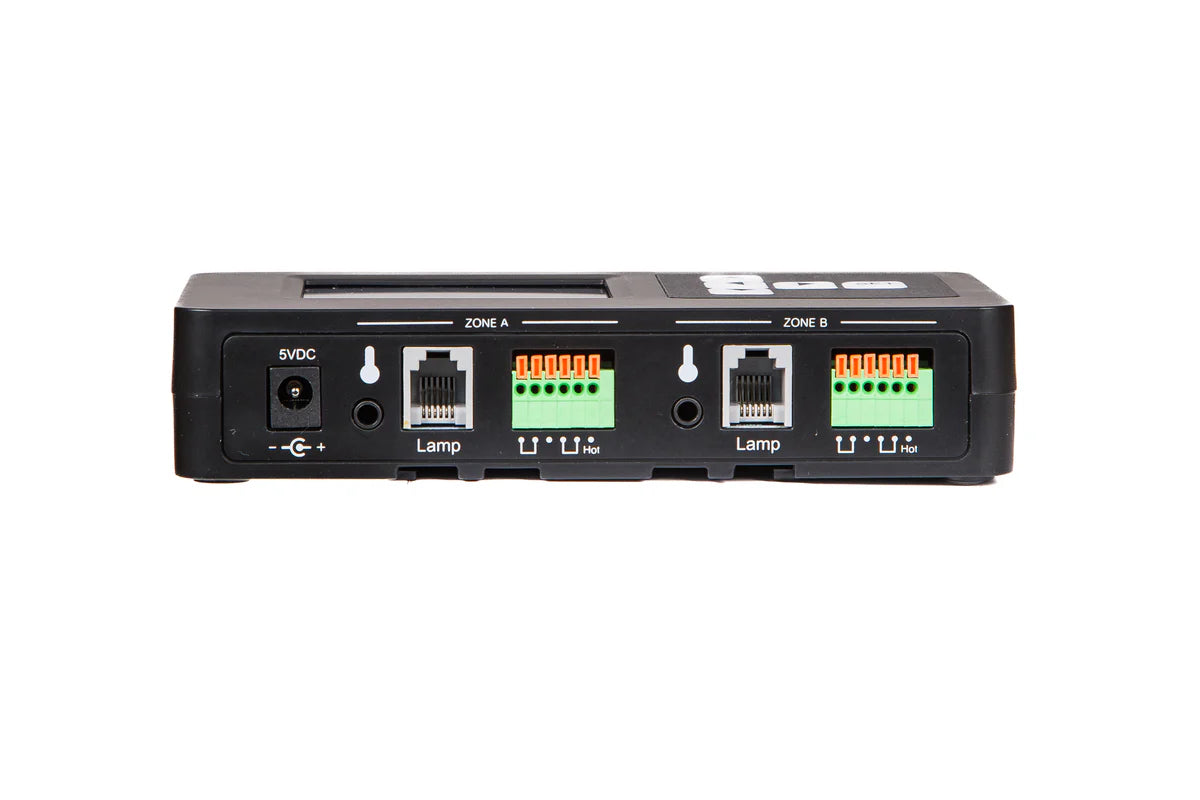

Dual Room Control (Zone A / Zone B)
The ControlLED Controller can manage two independent grow spaces, displayed as Zone A and Zone B. This allows users to run separate rooms with different schedules or flip flower rooms efficiently.
If both zones are configured with the same parameters, the controller can operate as a single large grow room, simplifying control across larger installations.
Lighting Control and System Scaling
The controller supports automated dimming, sunrise and sunset simulation, and real time lighting adjustment. A single controller can manage up to 150 ControlLED fixtures across two rooms using standard RJ control cables.
This makes it ideal for expanding Dio-Tech systems while keeping all fixtures synchronised from one control point.
Optional Temperature and Humidity Control
The ControlLED Controller can also monitor and control temperature and humidity when used with external relay units. These relay boxes are sold separately and are required to enable environmental control functionality.
Once installed, the controller provides real time monitoring and automated environmental management, helping maintain stable grow room conditions.
Key Features
- Designed specifically for the ControlLED lighting range
- Touch screen control interface
- Smartphone application with Bluetooth connectivity
- Controls up to 150 fixtures across two rooms
- Zone A / Zone B dual room functionality
- Automated dimming with sunrise and sunset simulation
- Optional temperature and humidity control (relay units sold separately)
- Real time environment monitoring
- Supplied with all required control cables
- Compatible with 0–10V ControlLED fixtures
- ROHS, CE, and EMC certified
The ControlLED Lighting & Environment Controller is the ideal solution for growers running Dio-Tech systems who want scalable lighting control, clean installation, and optional environmental automation.
