Air Locks in Drip Irrigation: Causes, Fixes & Pro Tips

Do Your Drippers Keep Clogging?

Tried swapping out emitters, flushing the lines, and still no water coming through? You might not actually have a blockage at all — it could be an air lock in your irrigation line.

Air locks are sneaky pockets of trapped air inside drip irrigation pipework. They act like invisible plugs, stopping water from flowing even though everything looks fine from the outside. If left unchecked, they cause uneven feeding, stressed plants, and hours wasted chasing “clogs” that aren’t really there.

Why Air Locks Happen in Hydroponic Irrigation

• Pump intake & low reservoir levels: When the reservoir drops too low, the pump can draw air along with water.

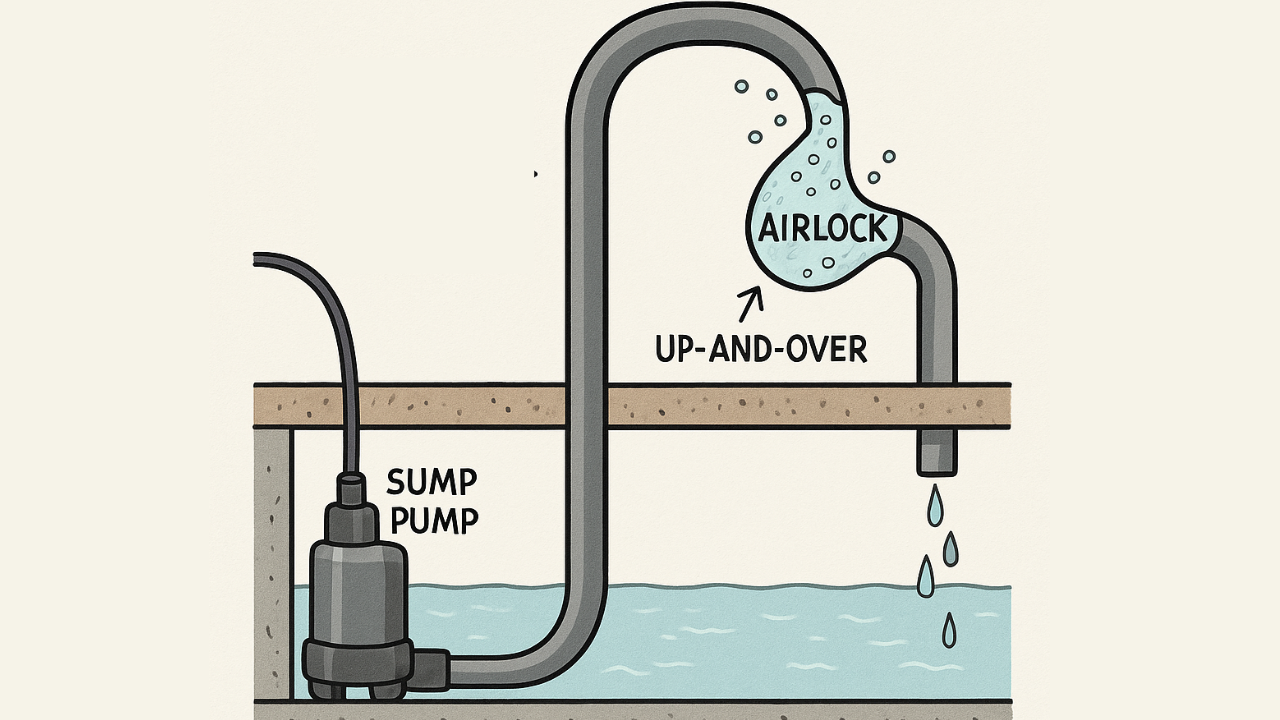

• Up-and-over pipe runs: Lines that go above tank level (over the lip) trap air at the highest point — a classic grow room issue.
• Micro-leaks on suction side: Tiny gaps in fittings or joints can admit air under suction.
• System drain-down between cycles: If laterals empty between feeds, refilling can trap air pockets.
• Rapid pressure changes: Hard starts/stops or quick valve closures can pull air into the line.
• Poor priming: If you don’t bleed lines on setup, air gets locked in from day one.

Fixing Air Locks (and Preventing Clogs)

Here’s how to keep hydroponic irrigation clean, consistent, and free-flowing:

• FloraFlex Flush Valve: One twist purges trapped air along with salts, sediment, and debris. Install at the low point or end of line for quick bleeding and line maintenance.
• Netafim DNL (Drainage No-Leak Valve): A check/anti-drain valve that holds the line closed until opening pressure is reached. This helps prevent siphoning and backflow after shut-off, reducing the chance of air being pulled in.
• Anti-Siphon Valves: Break the siphon when tanks or lines are elevated (e.g., attic installs). They stop water from continuing to run — and pulling air behind it — once the pump is off.

Do DNLs do the same job as anti-siphon valves? They overlap. A DNL is primarily an anti-drain/anti-backflow check valve (it prevents line emptying and flow reversal), while a dedicated anti-siphon valve is designed to break a siphon path when there’s height difference. Many growers use one or both depending on layout.

Attic Tanks & Siphoning (Even with Pressure-Compensated Drippers)

If your reservoir or header tank is in the attic (or otherwise higher than your emitters), gravity can create a siphon after shut-off. That can continue flow unintentionally and pull air into lines once they empty — even with pressure-compensated drippers. Adding an anti-siphon valves and/or a DNL near the riser or manifold helps break the siphon and keep laterals primed.

Don’t Forget the Connections (Leak-Free = Air-Free)

Reliable connections reduce suction leaks (a common air lock trigger) and make maintenance faster:

• Tap Connectors — tidy, leak-free links from mains/taps to your system.
• Quick-Fit Hose Connectors — snap on/off when moving lines or tools.
• Hosetails and Sockets — secure transitions between pumps, hoses, manifolds, and filters.

Recommended Order & Basic Layout Tips

• Filter placement: Upstream of valves/emitters (right after the pump or source) to protect drip irrigation components.
• Anti-siphon vs non-return (check) valves: Place the anti-siphon where a siphon could form (often at a high point/riser). Place the check valve/DNL downstream to enforce one-way flow and anti-drain behaviour.
• Flush points: End-of-line or low-point FloraFlex Flush Valve make bleeding and salt removal quick.

Why It’s Worth It

• Stops air locks before they wreck feed cycles.
• Prevents salt build-up and clogged drippers in coco, soil, rockwool, and DWC side-lines.
• Keeps flow rates even across your canopy for healthier roots and growth.
• Saves troubleshooting time so you can focus on plants, not pipework.

Plug-and-Play: Start Clean

Want a smoother build from day one? Our Complete Whip Kit gives you a neat, consistent feed to each site. Pair it with a flush valve and the right DNL / anti-siphon valves for a low-maintenance, pro-level setup.
