Description
NOTE: This unit operates on 220–240V and is supplied with a UK 3-pin plug. Must be fed from a break tank or cold water storage cistern — direct mains connection is not permitted under UK Water Regulations.

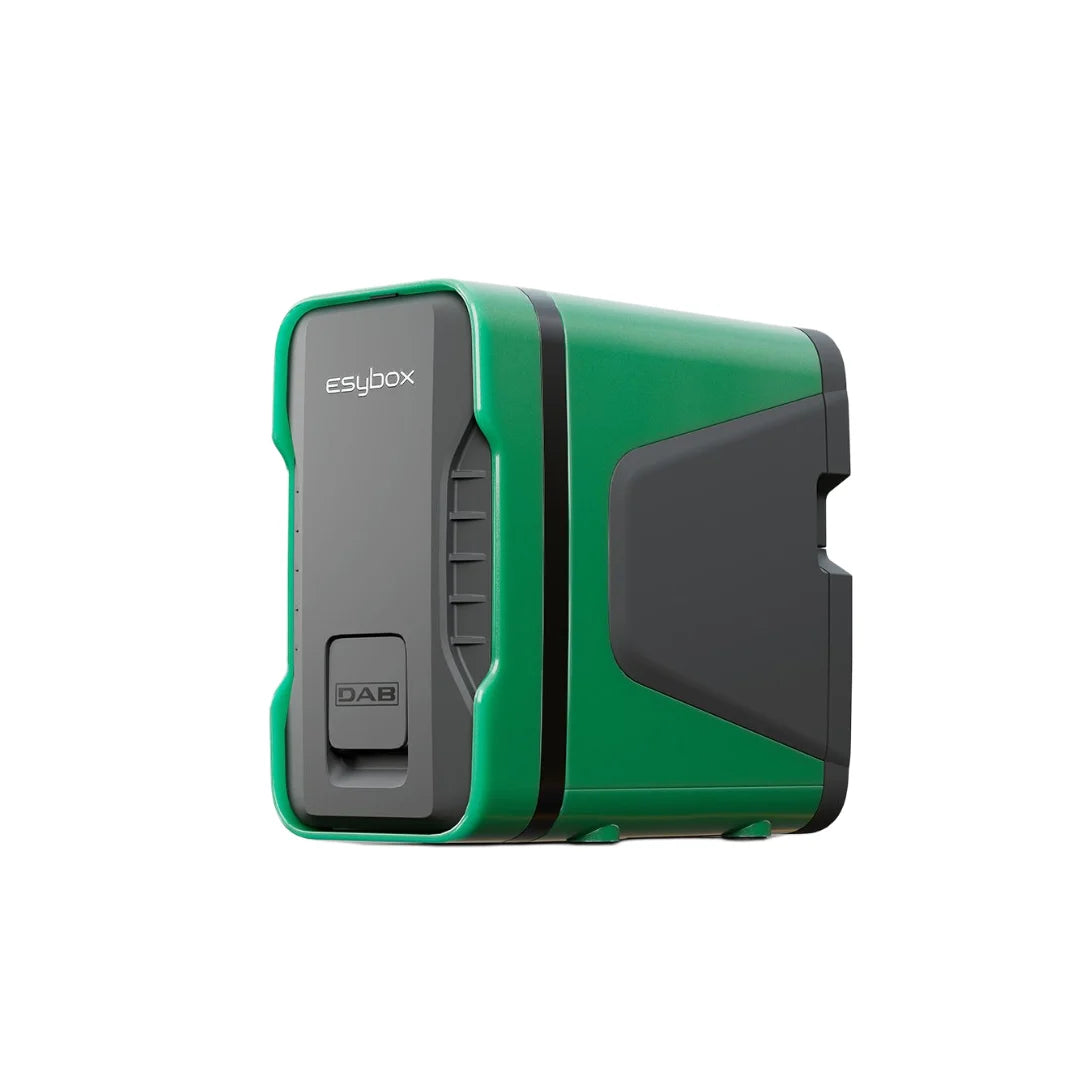

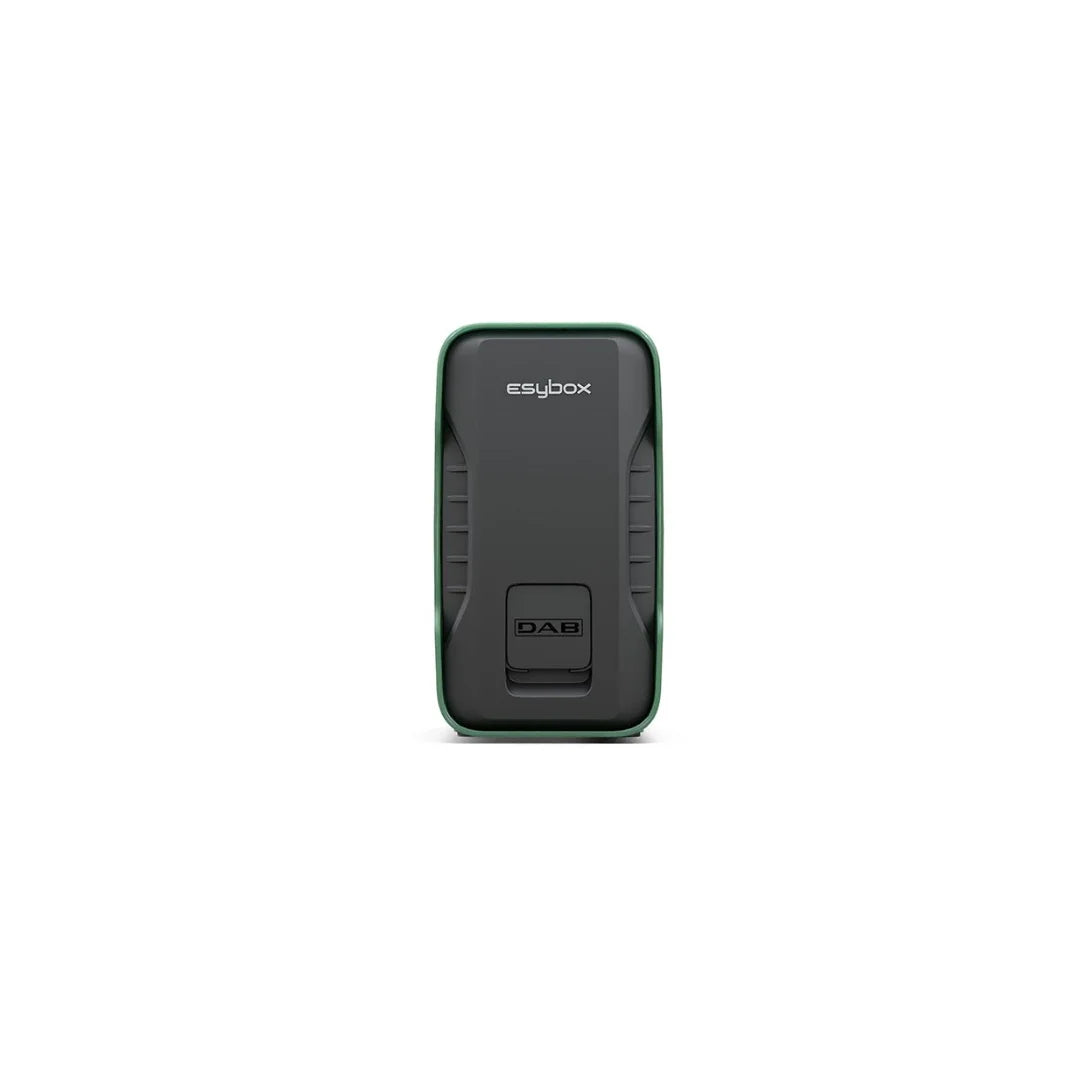

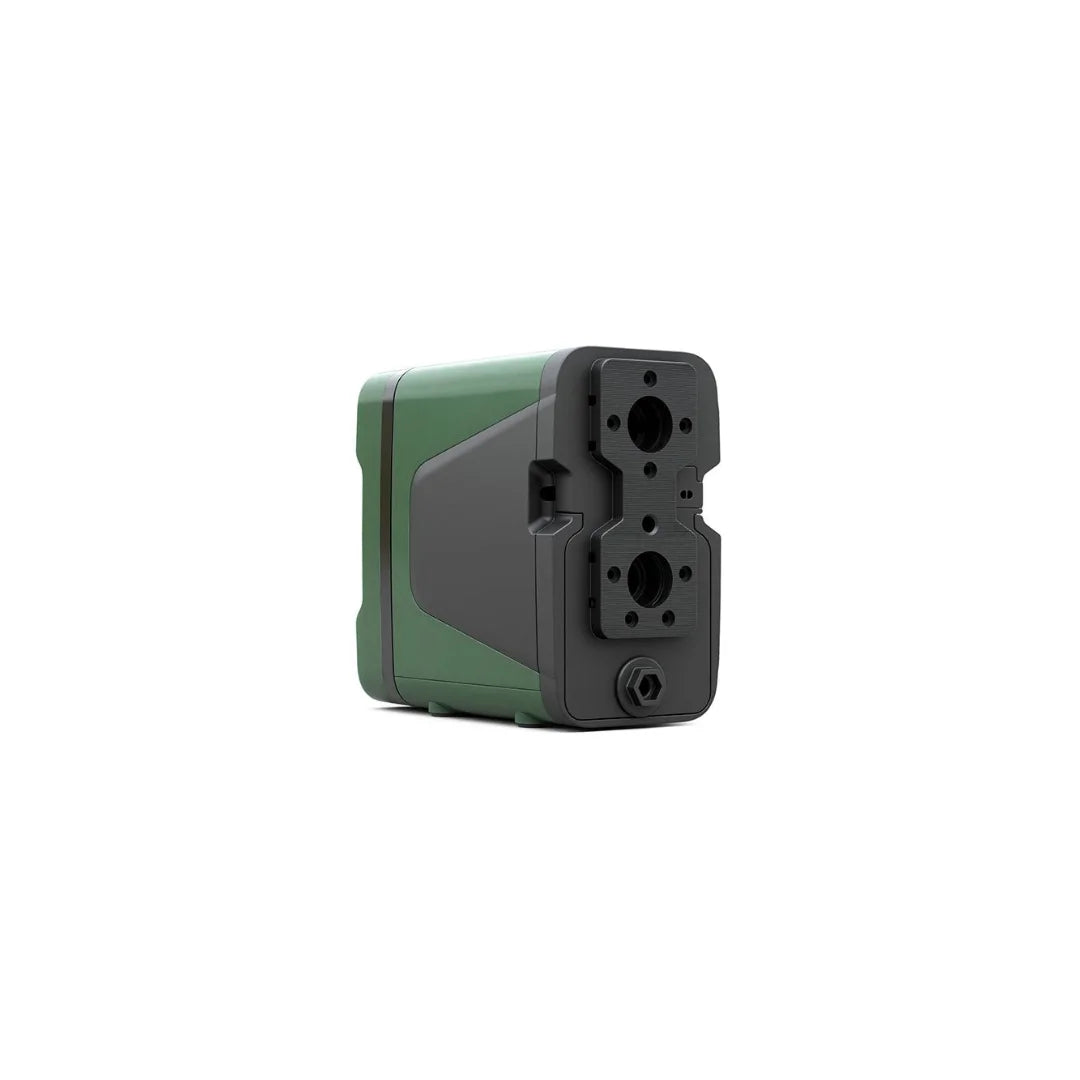

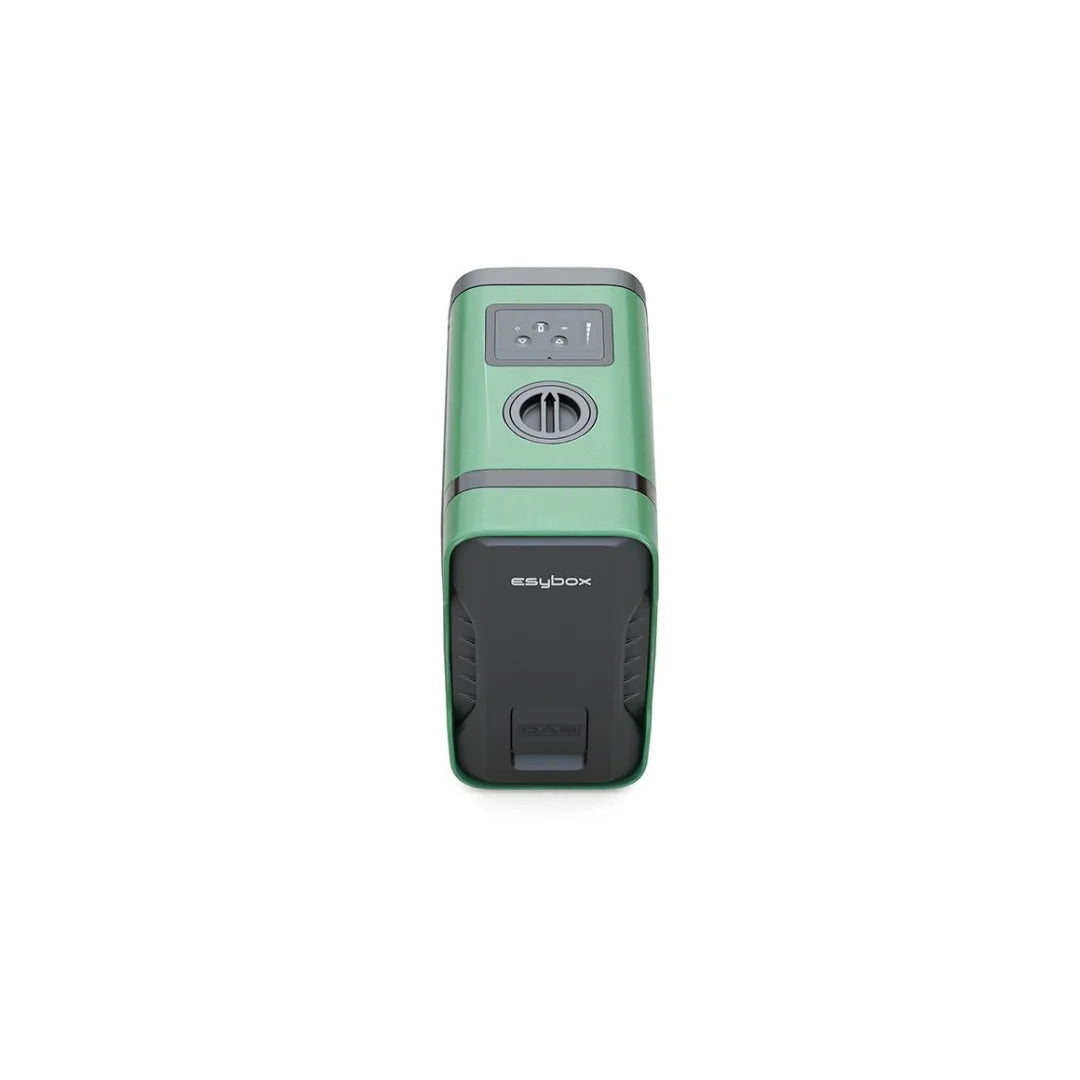

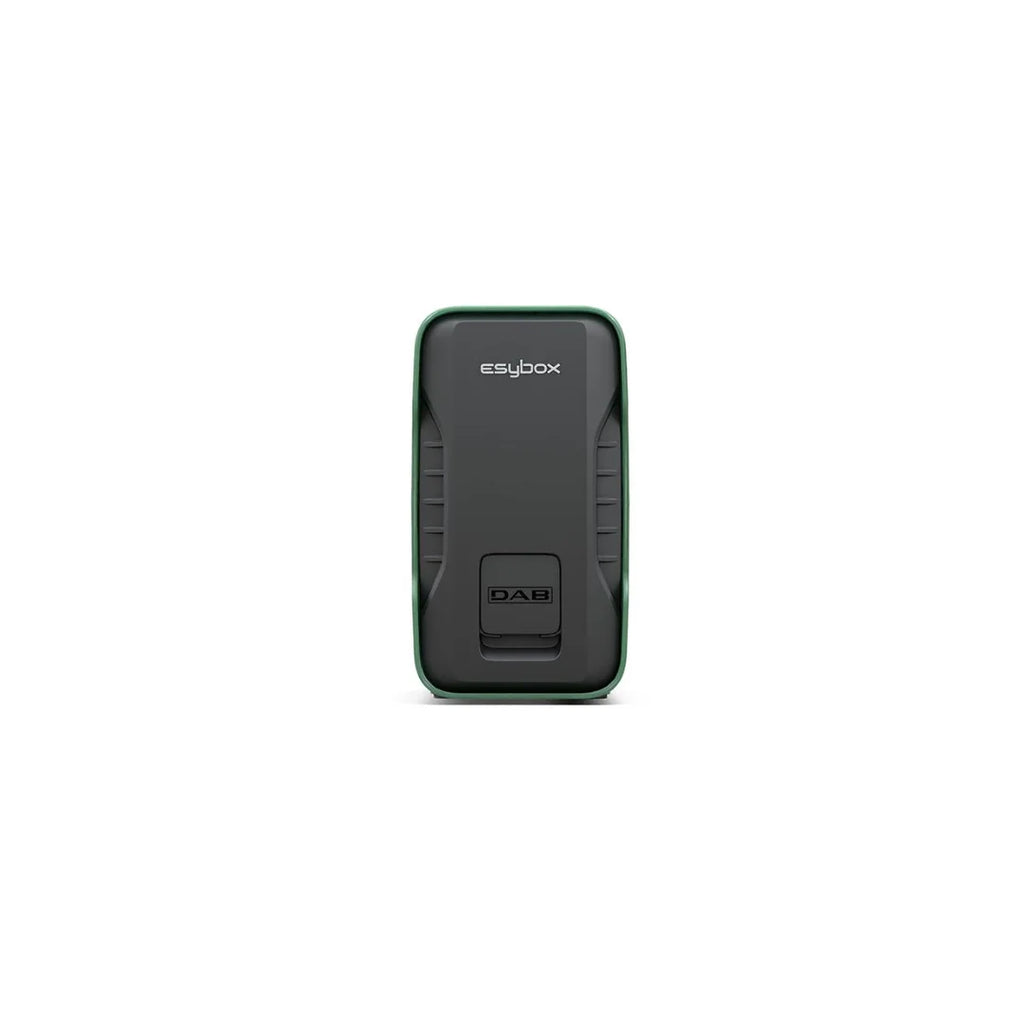

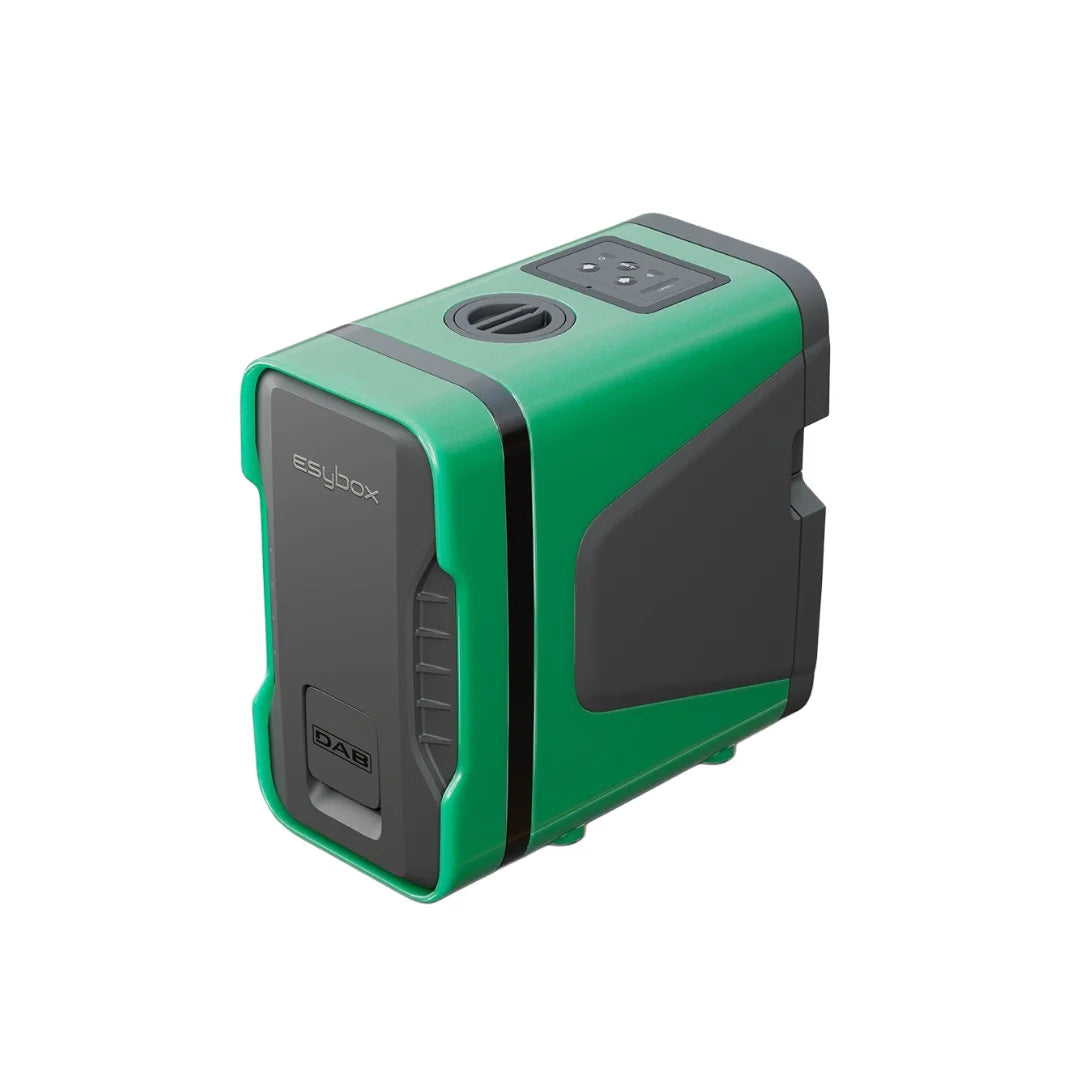

The DAB Esybox Pop is the latest revolution in the Esybox line — DAB's most compact all-in-one pressurisation system. A lightweight, plug-and-play housing measuring just 122 × 209 × 225mm and weighing only 9 kg, delivering up to 65 L/min (3,900 L/hr) at a maximum of 3.2 bar.
Permanent magnet motor with electronic inverter, integrated pressure and temperature sensors, flow meter, non-return valve, and rotatable fittings — all fully assembled out of the box. Smart connectivity via the new DAB H2D app brings remote monitoring, Power Shower comfort mode, and consumption tracking. IPX5 rating allows indoor or outdoor installation.
Certified for drinking water. iF Design Award 2025 winner. Supplied with a 3-year DAB manufacturer warranty. Ideal for 1-2 bathroom homes, apartments (especially upper floors), bathroom and whole-house renovations, and replacing noisy old pumps.
OVERVIEW
The DAB Esybox Pop is the latest revolution in the Esybox line — DAB's most compact all-in-one pressurisation system, with cutting-edge technology delivered in a lightweight, plug-and-play housing measuring just 122 × 209 × 225mm and weighing 9 kg. Designed for homes where every centimetre matters, it fits where no other pump can — under sinks, in cupboards, on walls, indoors or outdoors.
A permanent magnet motor with electronic inverter automatically adjusts speed to match water demand — delivering up to 3,900 L/hr (65 L/min) at a maximum of 3.2 bar, with constant, precise pressure regulation and minimal energy consumption. Integrated pressure sensor, temperature sensor, flow meter, non-return valve, and rotatable fittings come pre-fitted — no extra parts, no bulky accessories, just plug and play. IPX5 rating allows installation outdoors as well as indoors.
Smart connectivity via the H2D app brings remote monitoring, Power Shower comfort mode, and consumption tracking to your phone. Certified for drinking water to international standards. iF Design Award 2025 winner. Supplied with a 3-year DAB manufacturer warranty.
KEY FEATURES
TYPICAL APPLICATIONS
TECHNICAL SPECIFICATIONS
| Brand | DAB Water Technology — Esybox Pop |
| Motor type | Permanent magnet, inverter-controlled |
| Maximum flow rate | 65 L/min (3,900 L/hr) |
| Maximum pressure | 3.2 bar |
| Pressure regulation | Variable speed, constant pressure |
| Integrated sensors | Pressure, temperature, flow meter, non-return valve |
| Comfort modes | Power Shower (boost), standard, consumption tracking |
| Acoustics | Ultra-quiet operation |
| Liquid type | Clean water, non-aggressive, drinking water certified |
| Ingress protection | IPX5 — suitable for outdoor installation |
| Power supply | 240V 1Ph 50Hz |
| Motor size | 300W / 1.5A FLC |
| Cable length | 1.5m |
| Connections (inlet/discharge) | 3/4" rotatable — adapts to existing pipework |
| Max head | 32m |
| Max temperature | 50°C |
| Installation | Free-standing, or wall-mounted via dedicated dock (separate accessory) |
| Dimensions (W × H × D) | 122 × 209 × 225mm |
| Weight | 9 kg |
| Material | Plastic |
| Manufactured in | Italy |
| Design award | iF Design Award 2025 |
| Connectivity | DAB H2D app — iOS, Android, web portal |
| Drinking water | Certified to international standards for domestic potable water |
| Warranty | 3 years (DAB manufacturer warranty) |
HOW IT COMPARES
Three models in the DAB Esybox line. The Esybox Pop is the newest, smallest, and lightest — designed for 1-2 bathroom homes, apartments, and renovations where compactness matters most.
| Feature | ⭐ DAB Esybox Pop THIS PRODUCT |
DAB Esybox Mini 3 | DAB Esybox |
|---|---|---|---|
| Max flow rate | 65 L/min | 70 L/min (50 @ 3 bar) | 120 L/min (80 @ 3 bar) |
| Max pressure | 3.2 bar | 5.5 bar | 6.5 bar |
| Best for | 1-2 bathrooms, apartments | 2-3 bathrooms, small homes | 3-5 bathrooms, larger homes |
| Size (W × H × D) | 122 × 209 × 225mm | 263 × 439 × 236mm | 374 × 565 × 290mm |
| Weight | 9 kg ✓ | 16 kg | 26 kg |
| Ingress protection | IPX5 — outdoor capable | IPX4 | IPX4 |
| App / WiFi | H2D app (new) | DConnect | DConnect, H2D, Google, Alexa |
| Power Shower mode | ✓ Yes | ✗ No | ✗ No |
| Warranty | 3 years (DAB) | 3 years (DAB) | 3 years (DAB) |
Which should I choose?
DAB Esybox Pop — choose for compact installations, apartments, bathroom renovations, and replacing old noisy pumps. Smallest and lightest in the range with IPX5 outdoor capability and Power Shower mode. Best for 1-2 bathroom homes.
DAB Esybox Mini 3 — choose for 2-3 bathroom homes needing more pressure (5.5 bar) and self-priming capability from below-ground tanks or boreholes to 8m depth.
DAB Esybox — choose for 3-5 bathroom properties and light commercial premises needing the highest flow (120 L/min) and pressure (6.5 bar), with full smart home integration (Google Home, Alexa).
