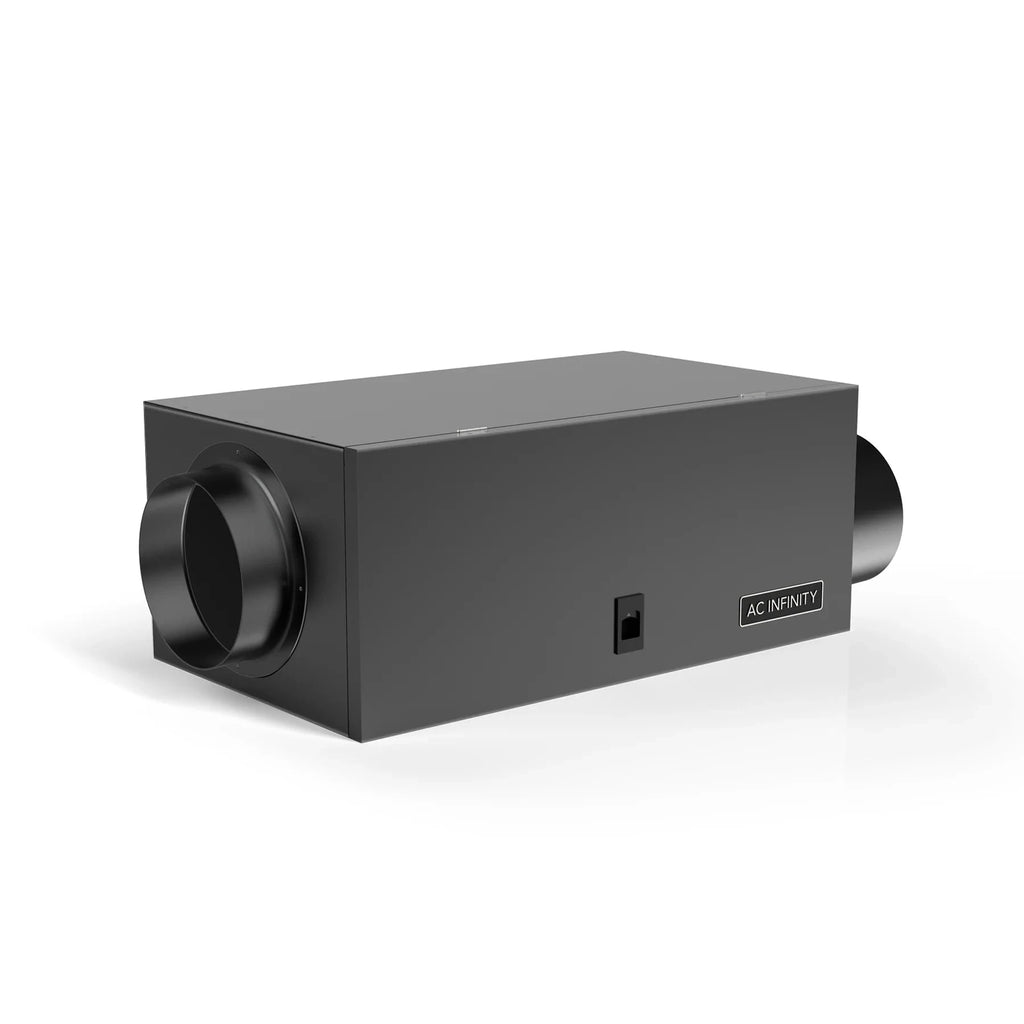

Heavy-Duty Inline Fan Filter Box – Ultra-Clean Air for Any Ventilation System

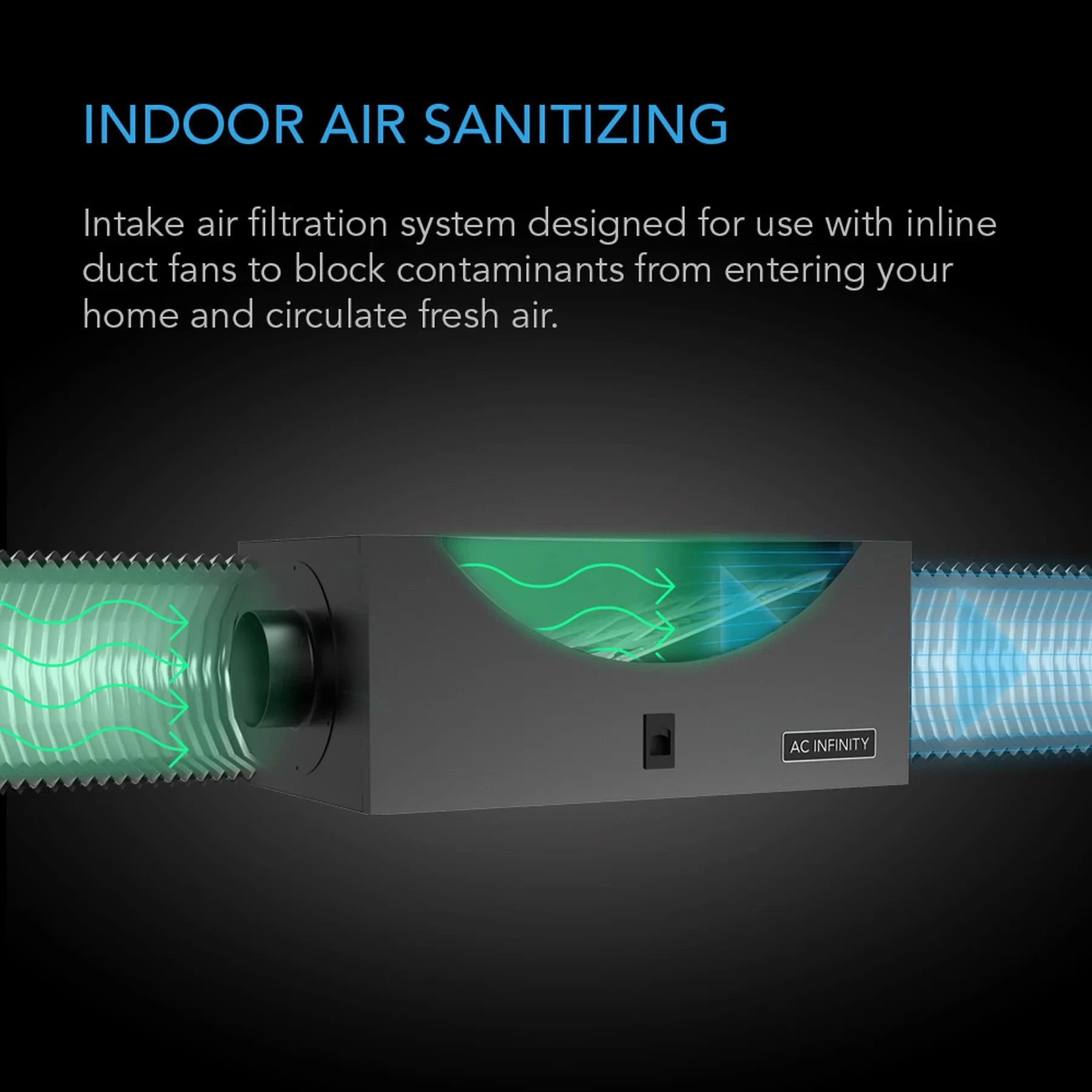

This high-performance inline duct filter box is engineered to trap airborne contaminants, ensuring fresh, clean airflow throughout your HVAC, workshop, or indoor environment. Whether you're maintaining air purity in a home setup or industrial environment, this filter box offers uncompromising protection and efficiency.
- Constructed from 1mm cold-rolled steel for maximum durability
- Matte black powder coating resists corrosion and harsh conditions
- Aluminium duct flanges ensure airtight compatibility with inline fans

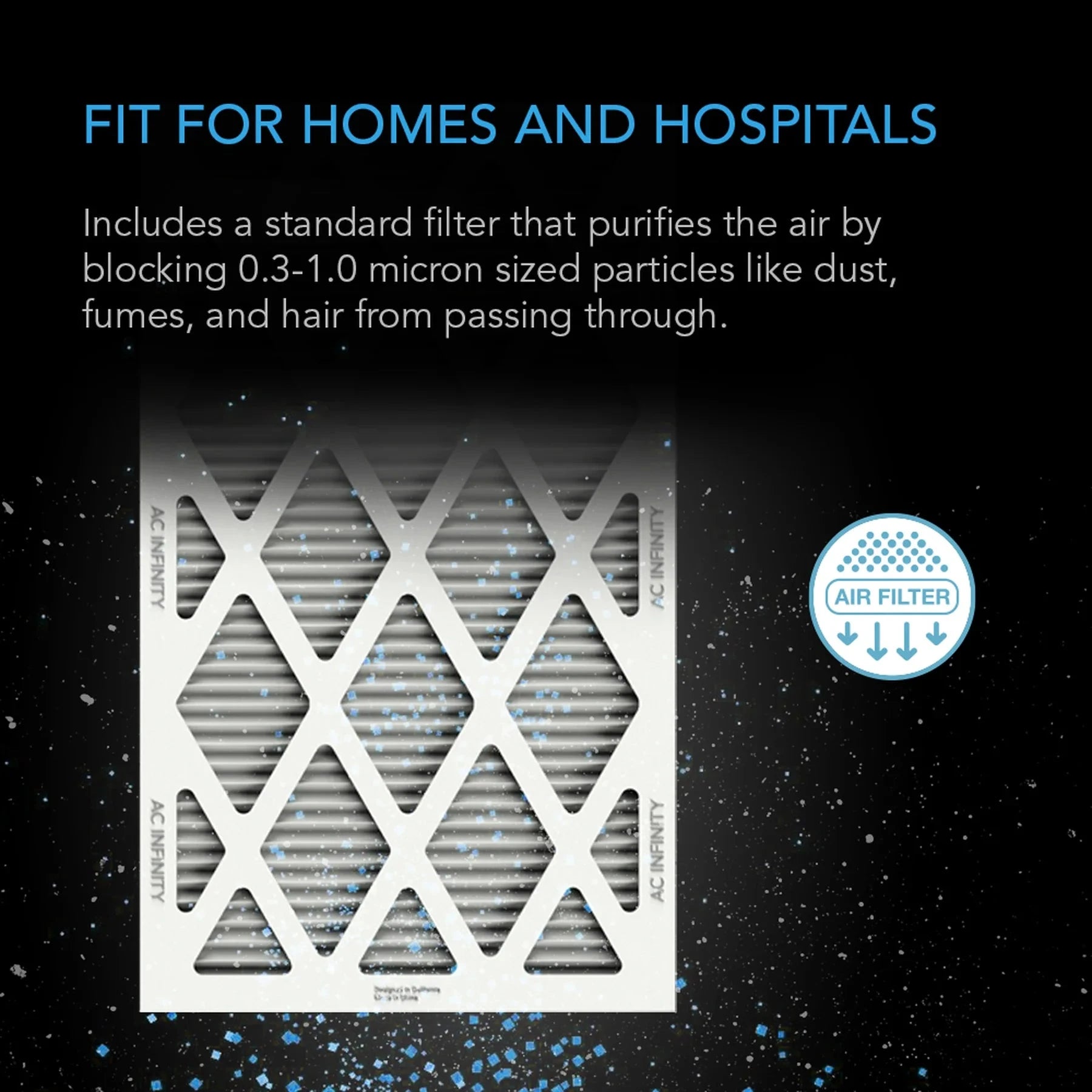

- Includes a high-efficacy pleated filter rated to capture 0.3 – 1.0 micron particles

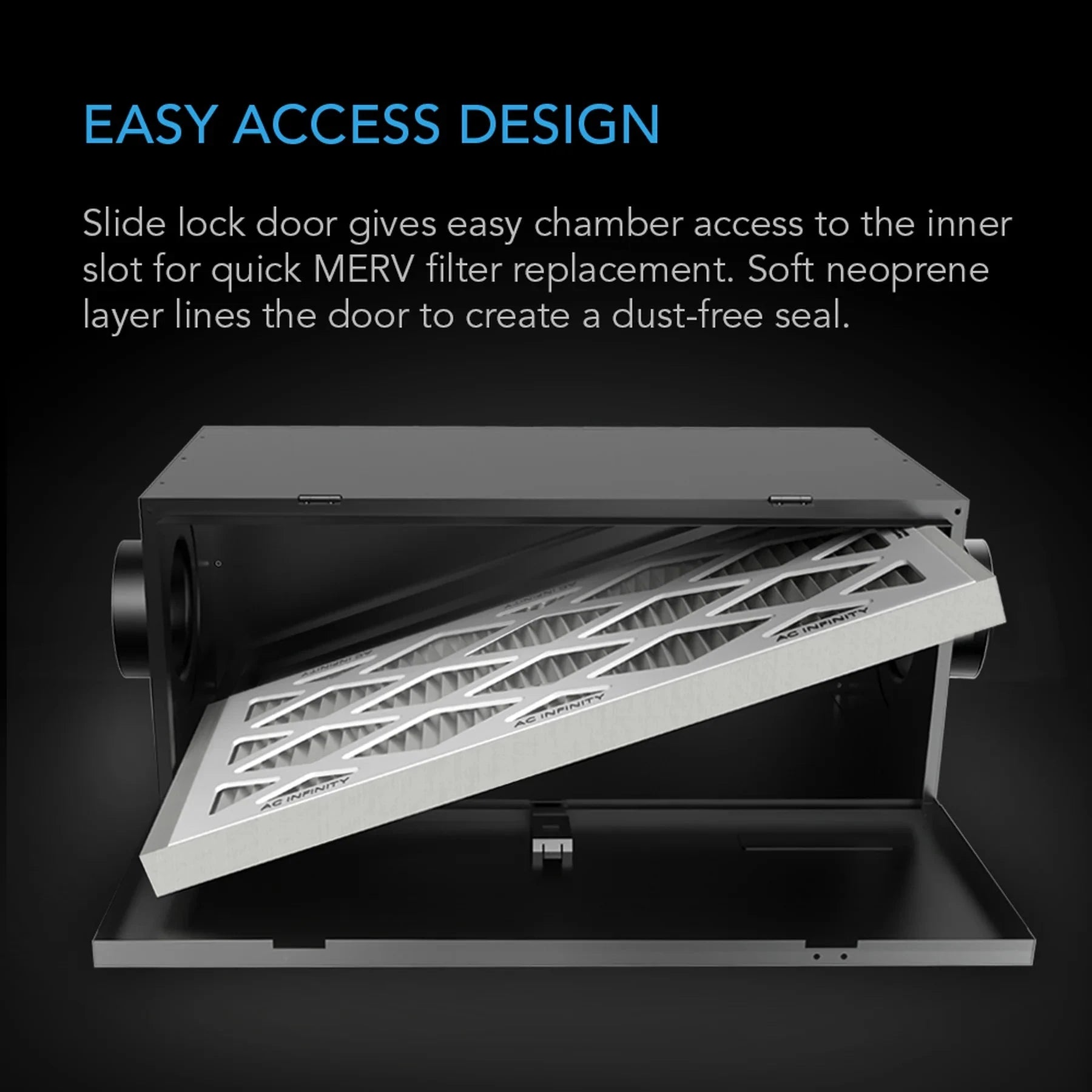

- Slide-lock door with neoprene lining for dust-free, secure seal
From dust and lint to workshop fumes and airborne allergens, this box-mounted filter system is your go-to solution for safe, breathable air.

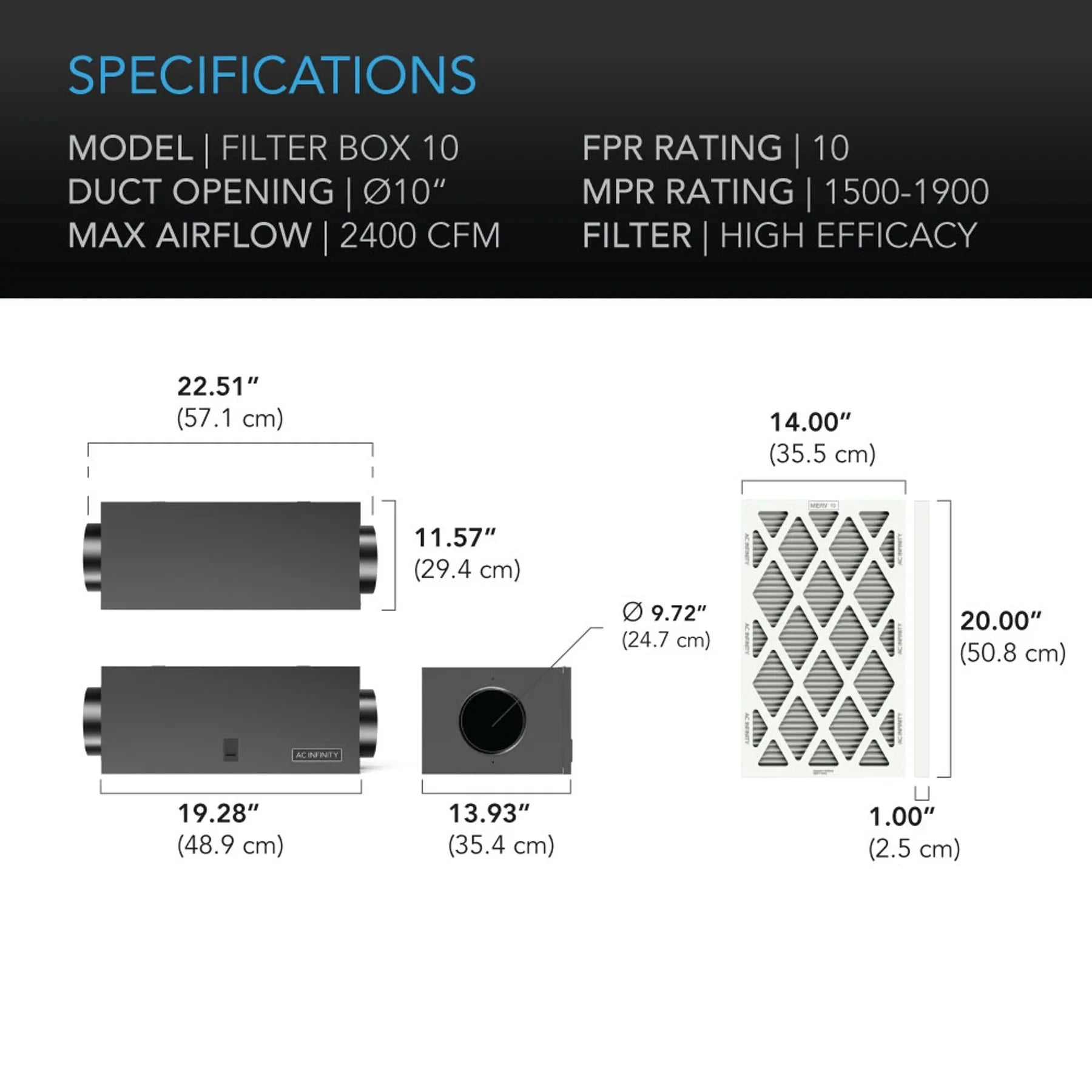

Sizes & Specifications
| Model | Dimensions (L x W x H) | Fan Size | Max Airflow | Filter Size |
|---|---|---|---|---|
| 4” Filter Box | 23.46" x 8.42" x 11.73" | 4” Inline Fans | 400 CFM | 12" x 20" x 1" |
| 6” Filter Box | 23.46" x 8.42" x 11.73" | 6” Inline Fans | 800 CFM | 12" x 20" x 1" |
| 8” Filter Box | 22.51" x 11.57" x 13.93" | 8” Inline Fans | 1600 CFM | 14" x 20" x 1" |
| 10” Filter Box | 22.51" x 11.57" x 13.93" | 10” Inline Fans | 2400 CFM | 14" x 20" x 1" |
🛠️ Key Applications
- Home HVAC air filtration
- Cleanroom or industrial workspace filtering
- Indoor grow tent filtration systems
- Welding fume and fine dust control
✅ Why Choose This Filter Box?
- Easy installation into new or existing ductwork
- Compatible with high-static pressure fans (like CLOUDLINE series)
- Supports MERV-rated filters for superior filtration performance
- Tool-free maintenance – simply open the slide door to replace filters
Upgrade your air circulation setup today with a professional-grade inline duct filter box that works just as hard as you do. Cleaner air starts here.
