Beschreibung
The AC Infinity CLOUDRAY S4 is an ultra-compact 4” grow tent clip fan engineered for serious airflow performance in tight grow spaces. Designed for growers who demand precision, power, and total environmental control, this high-velocity circulation fan delivers targeted airflow exactly where it is needed.
Built with a long-life EC motor and high static pressure design, the CLOUDRAY S4 outperforms many larger clip fans while maintaining an ultra-compact footprint. Whether you are supporting seedlings or pushing strong vegetative growth, this fan adapts to every stage.
Simple Mans Definition Of What This Does: Moves air properly so your plants grow stronger, healthier, and without weak stems or stagnant hotspots.
Why Choose the CLOUDRAY S4?
- Ultra-compact 4” impeller for tight grow tents
- 204 CFM maximum airflow for powerful circulation
- 10 digital speed levels for precise airflow control
- 10 dynamic wind modes to simulate natural outdoor breeze
- 10 automatic oscillation settings for targeted or wide coverage
- High static pressure design for superior performance in restricted spaces
- Miniaturised EC motor with dual ball bearings for extended lifespan
- IP54 rated for protection against humidity and dust
- Part of the UIS platform for smart controller and app integration
Tailored, Custom Airflow Control

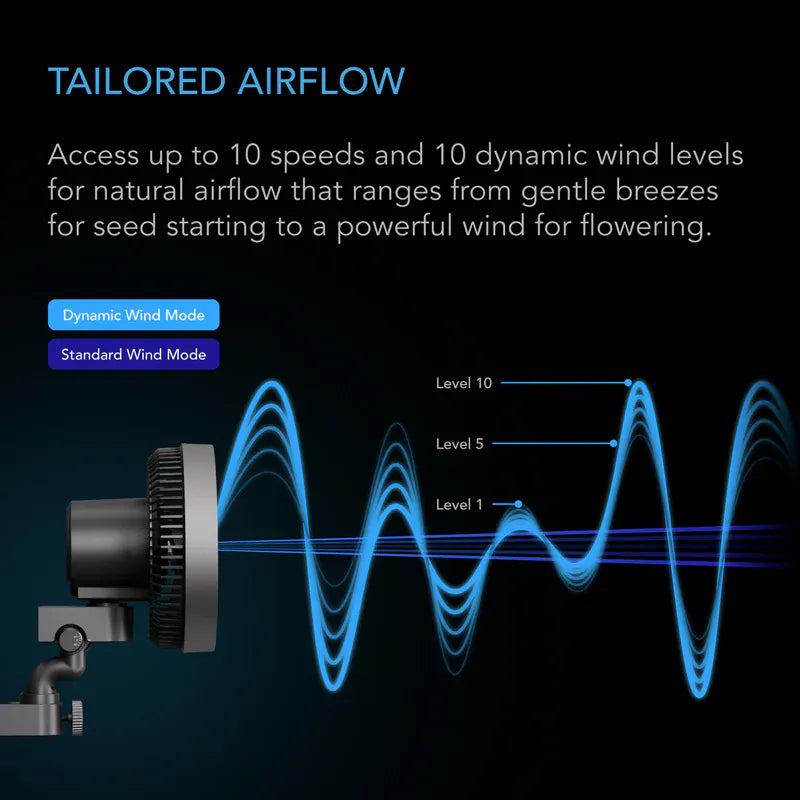

The CLOUDRAY S4 offers unmatched airflow customisation. Choose from ten fixed speed levels or activate one of ten dynamic wind modes that fluctuate automatically to simulate natural outdoor conditions. This reduces plant stress and promotes stronger stem development.

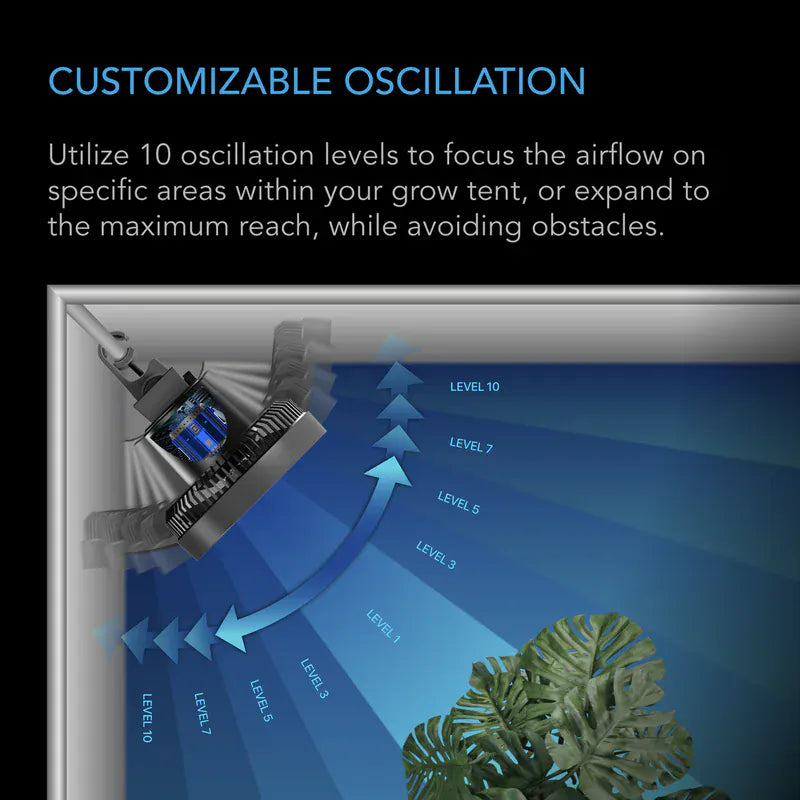

With ten oscillation ranges, you can focus airflow on a specific canopy area or achieve wider circulation while avoiding obstructions. Perfect for every growth stage from delicate seedlings to heavy vegetative and flowering cycles.
Compact Engineering. Serious Output.

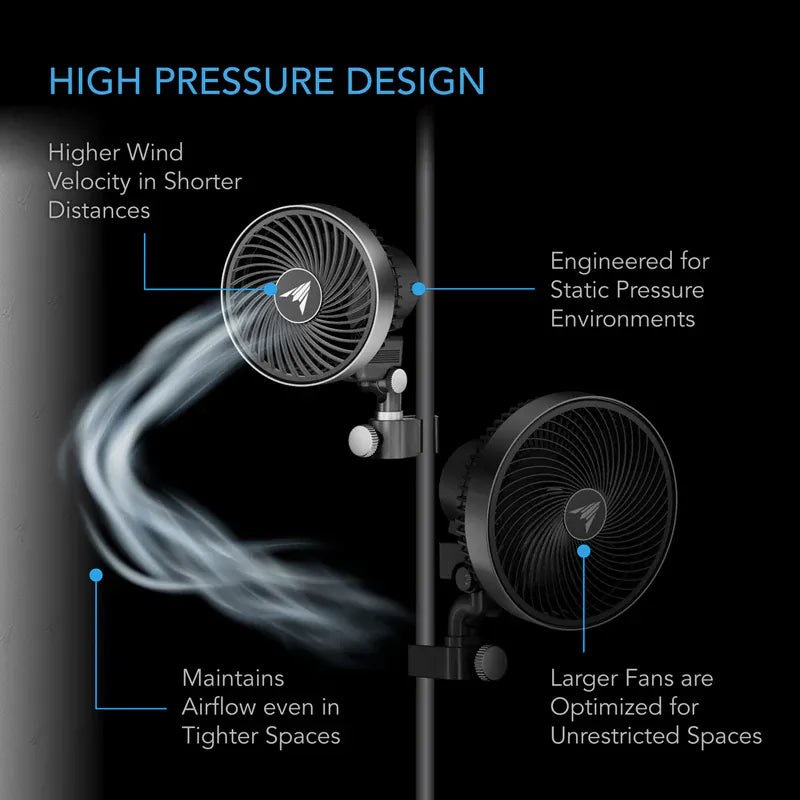

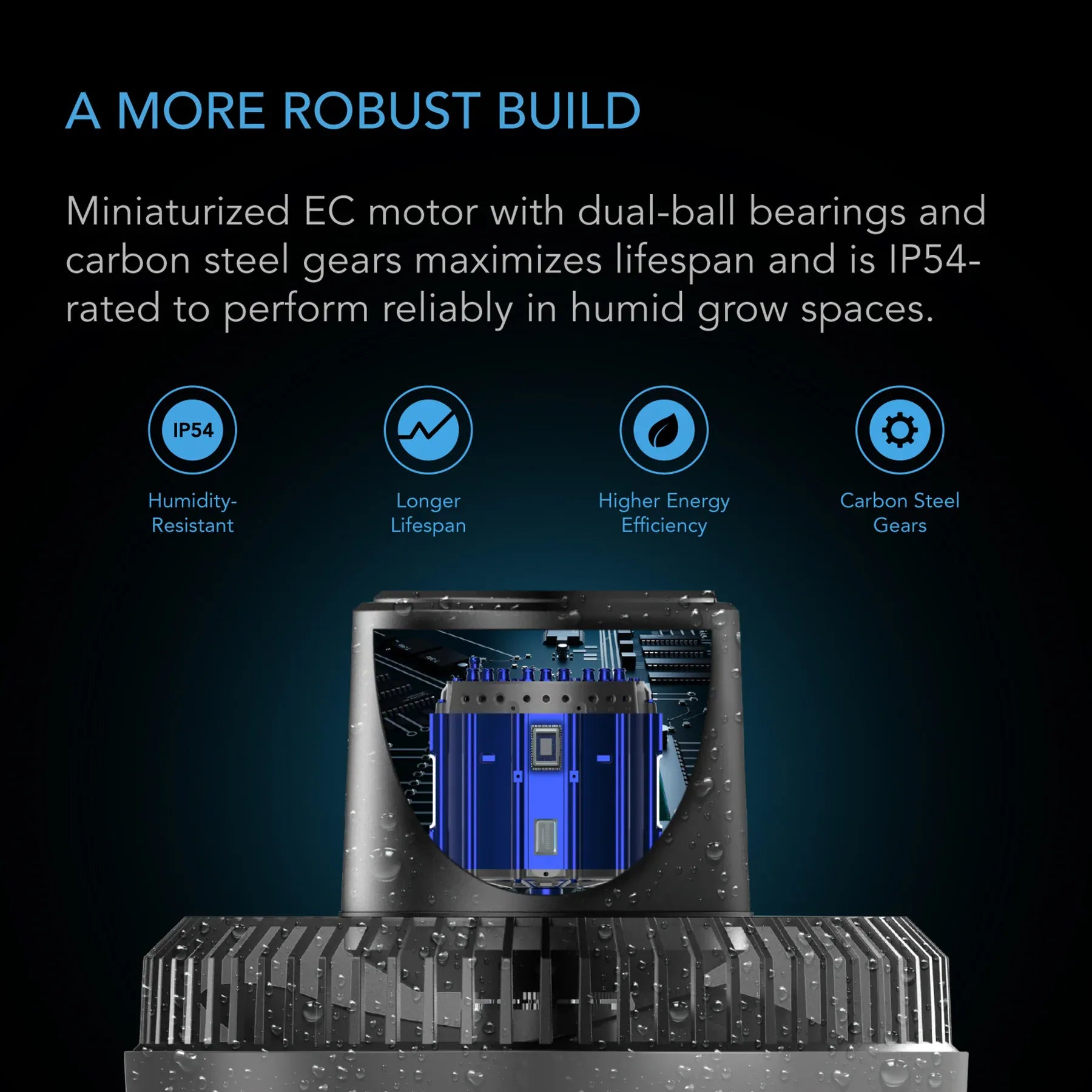

Despite its small size, the specialised high static pressure motor generates greater wind velocity than many larger clip fans. The EC motor with carbon steel gears and dual-ball bearings ensures consistent performance, efficiency, and an impressive 67,000-hour life expectancy.
The heavy-duty metal clamp uses a vise-grip style design to secure firmly to grow tent poles, whether mounted horizontally or vertically.

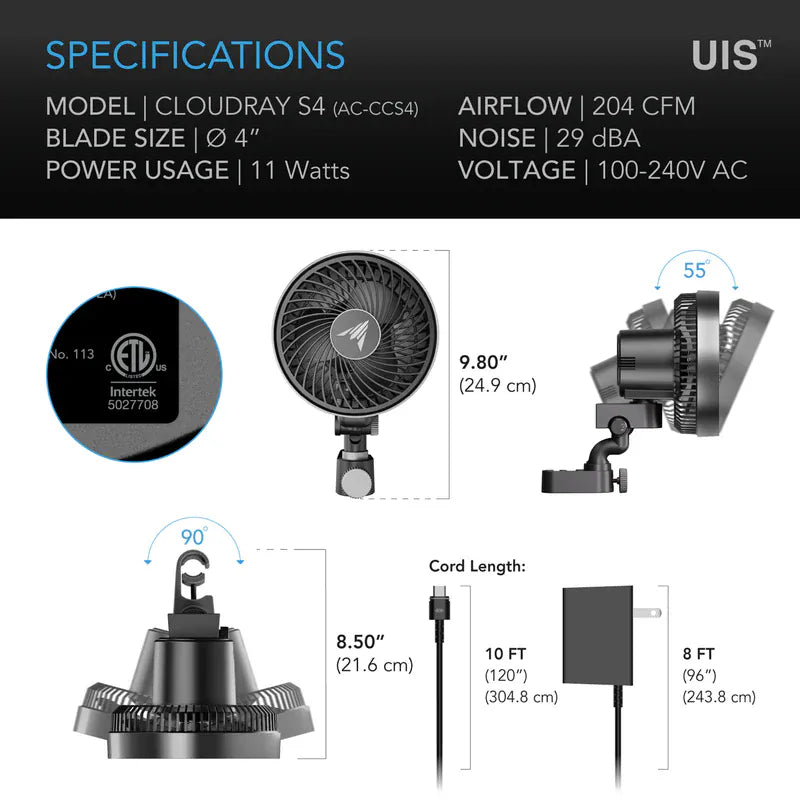

Technical Specifications
| Model | CLOUDRAY S4 (AC-CCS4) |
| Impeller Size | 4.0 inches |
| Total Dimensions | 24.7 x 30.0 cm (9.73 x 11.82 in.) |
| Cord Length | 2.4 m (8 ft) |
| Maximum Airflow | 204 CFM |
| Noise Level | 29 dBA |
| Static Pressure | 23 Pa |
| Power | 11 W |
| Voltage | 100 to 240V AC |
| Current | 0.16 A |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Water Resistance | IP54 Rated |
| Oscillation | Automatic, 10 Levels |
| Tilt Angle | 55° |
| Rotation Range | 90° |
| Bearings | Dual Ball Bearing |
| Life Expectancy | 67,000 Hours |
Built for Modern Growers

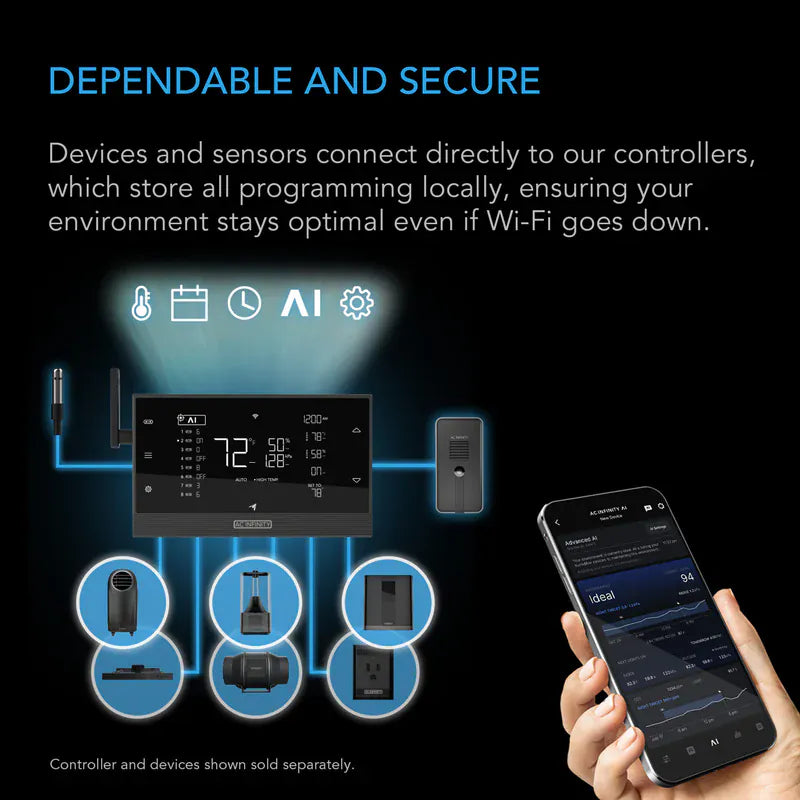

As part of AC Infinity’s UIS ecosystem, the CLOUDRAY S4 integrates with compatible smart controllers and the AC Infinity app over WiFi. This allows complete environmental automation and remote airflow control.
If you are running a serious indoor setup and want stable airflow without bulky equipment, this is one of the most advanced compact clip fans available today.
