UK/EU STOCK AVAILABLE TODAY.
The World’s First True HPS + LED Hybrid Grow Light.
IMPORTANT – CONTROLLER REQUIRED: The Matrix Hybrid 1000W requires the Matrix MC5 Lighting Controller to unlock dimming, spectrum control, UV and far-red scheduling.
Without the MC5 controller connected, this fixture will only operate in basic ON or OFF mode (0% or 100%). There is no built-in dimming or spectrum adjustment without the MC5.

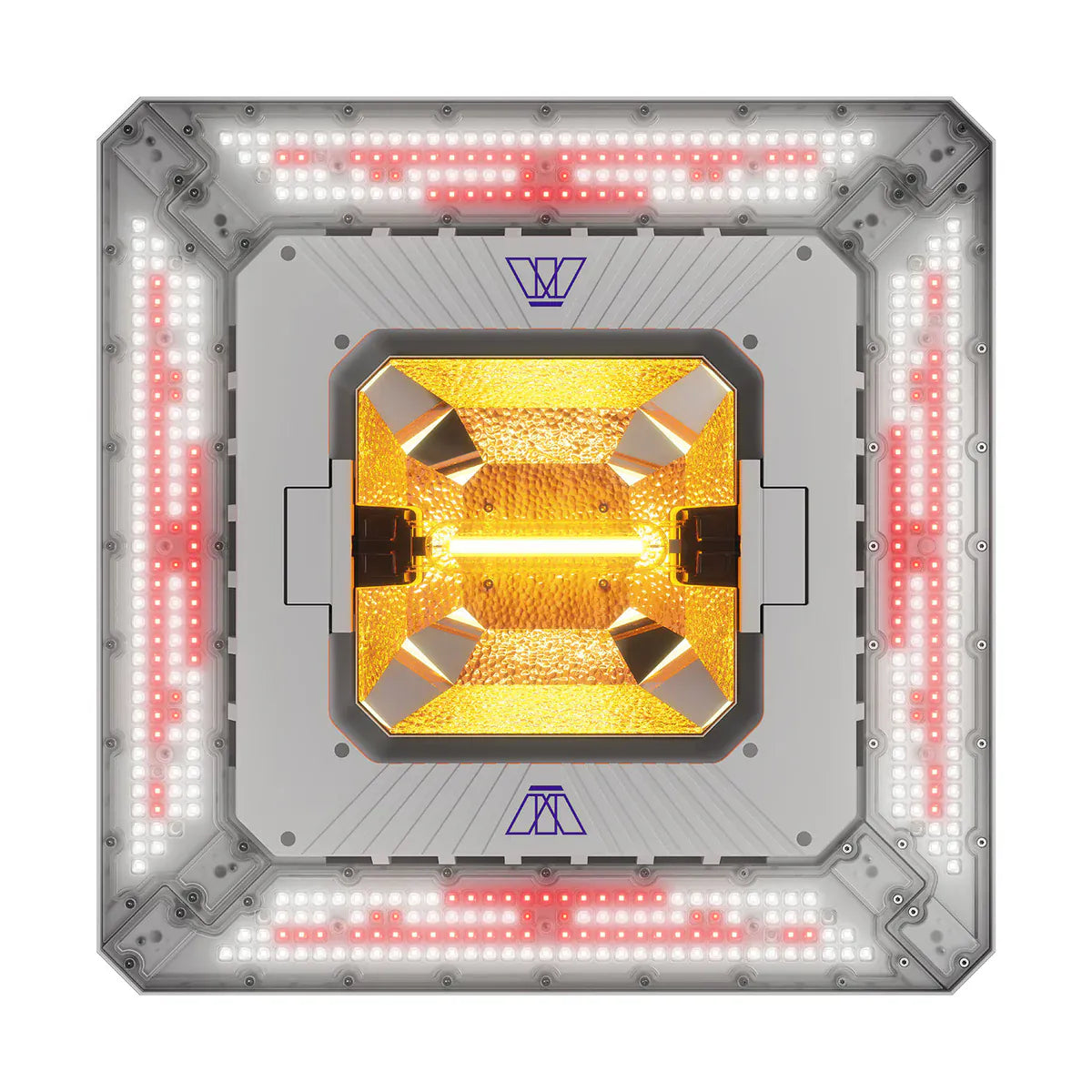

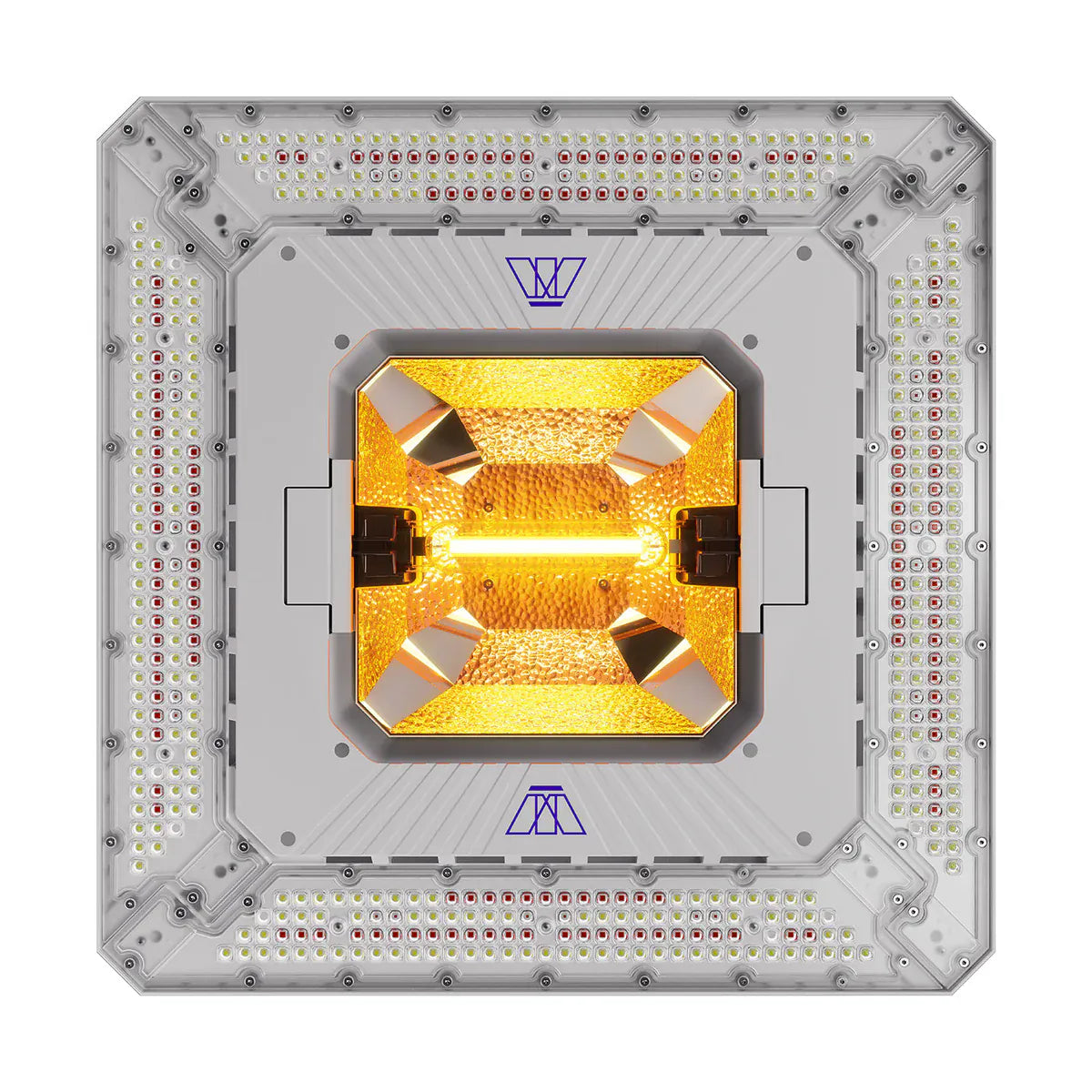

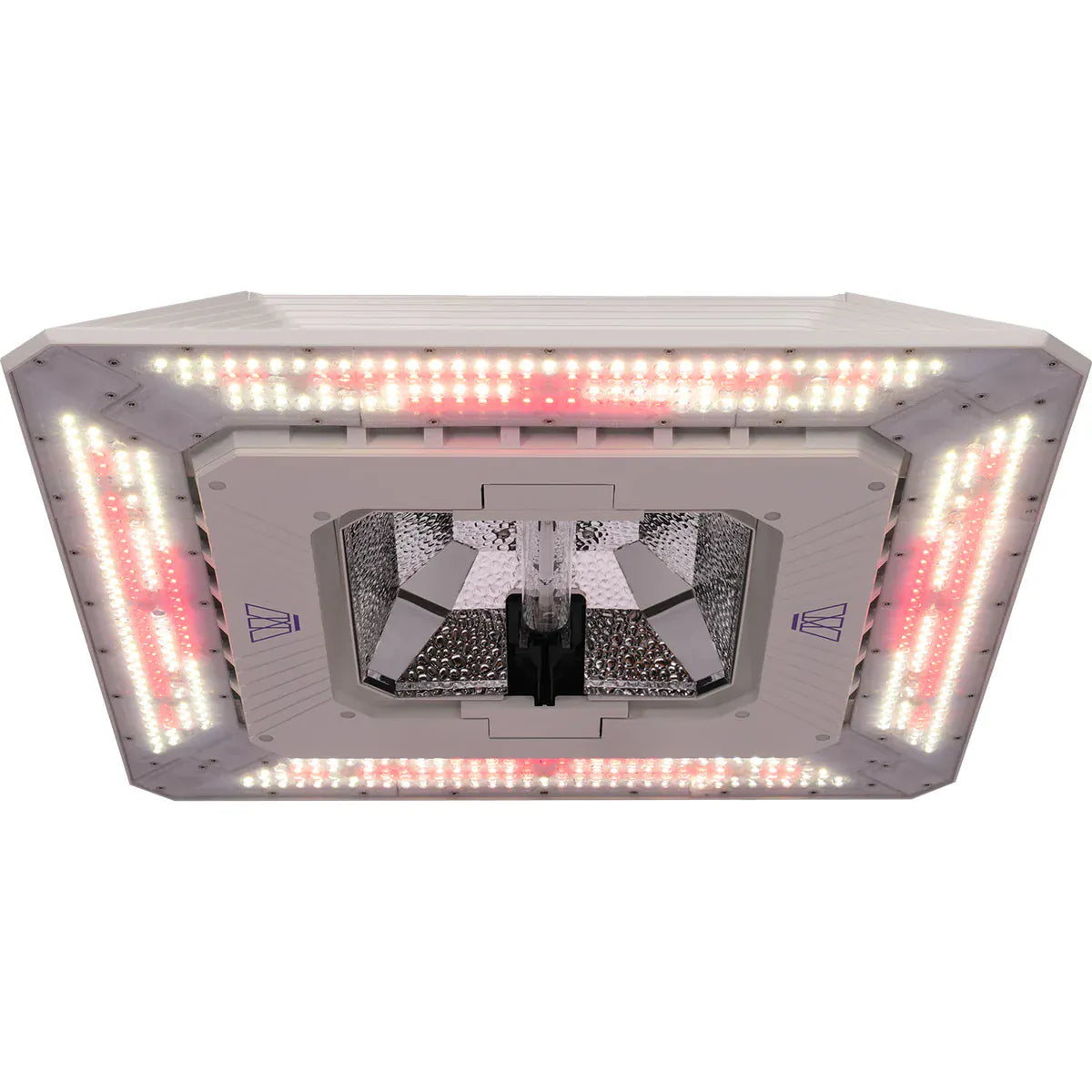

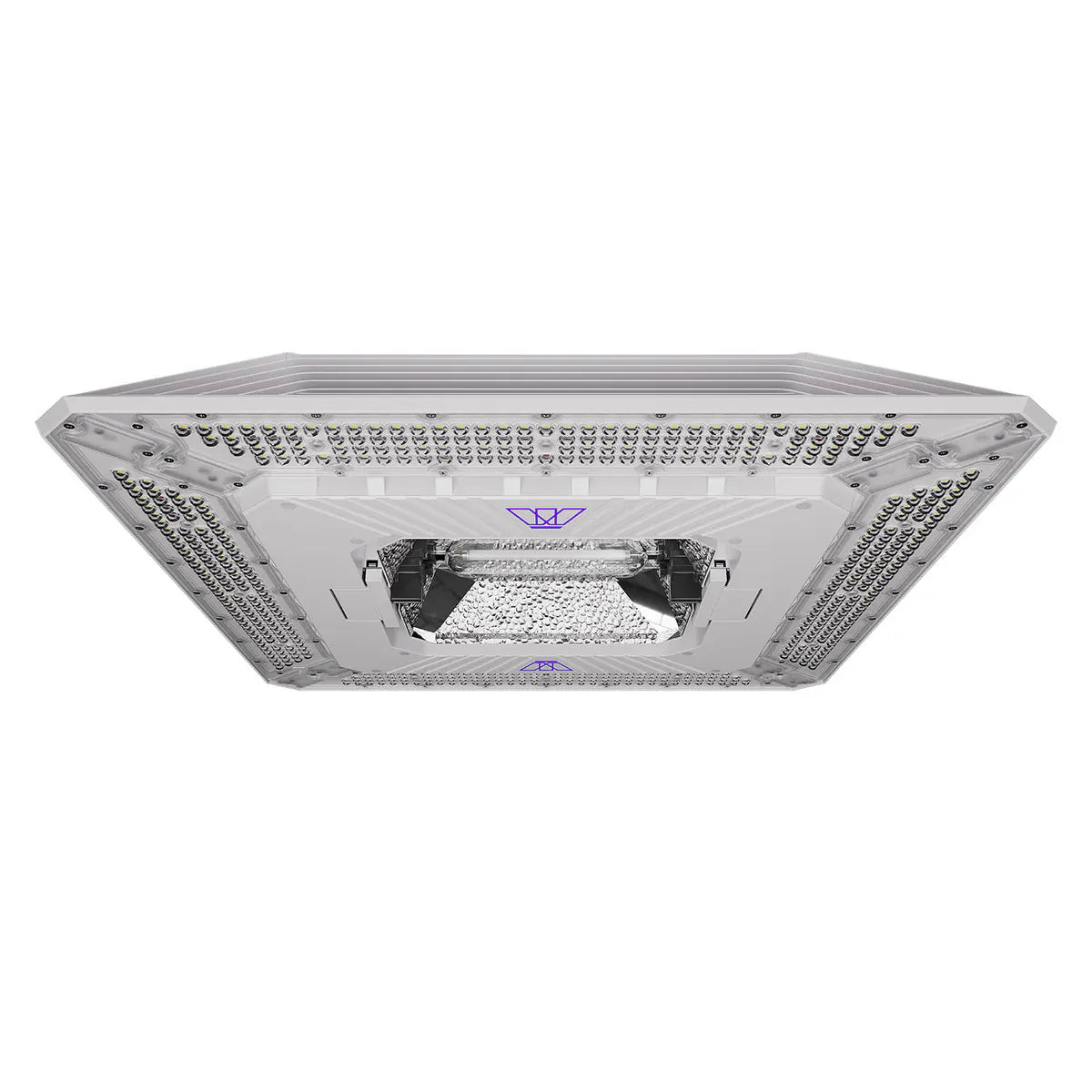

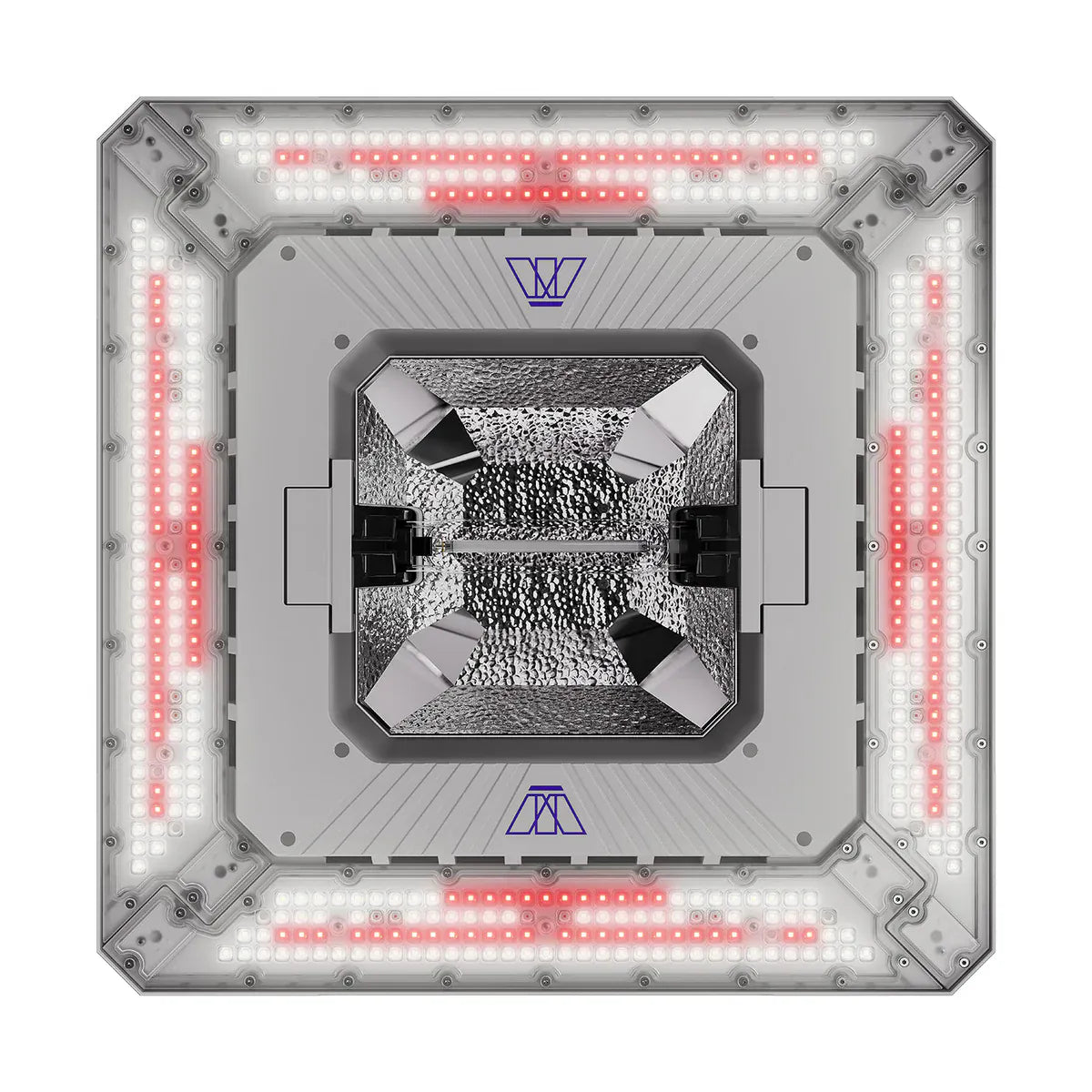

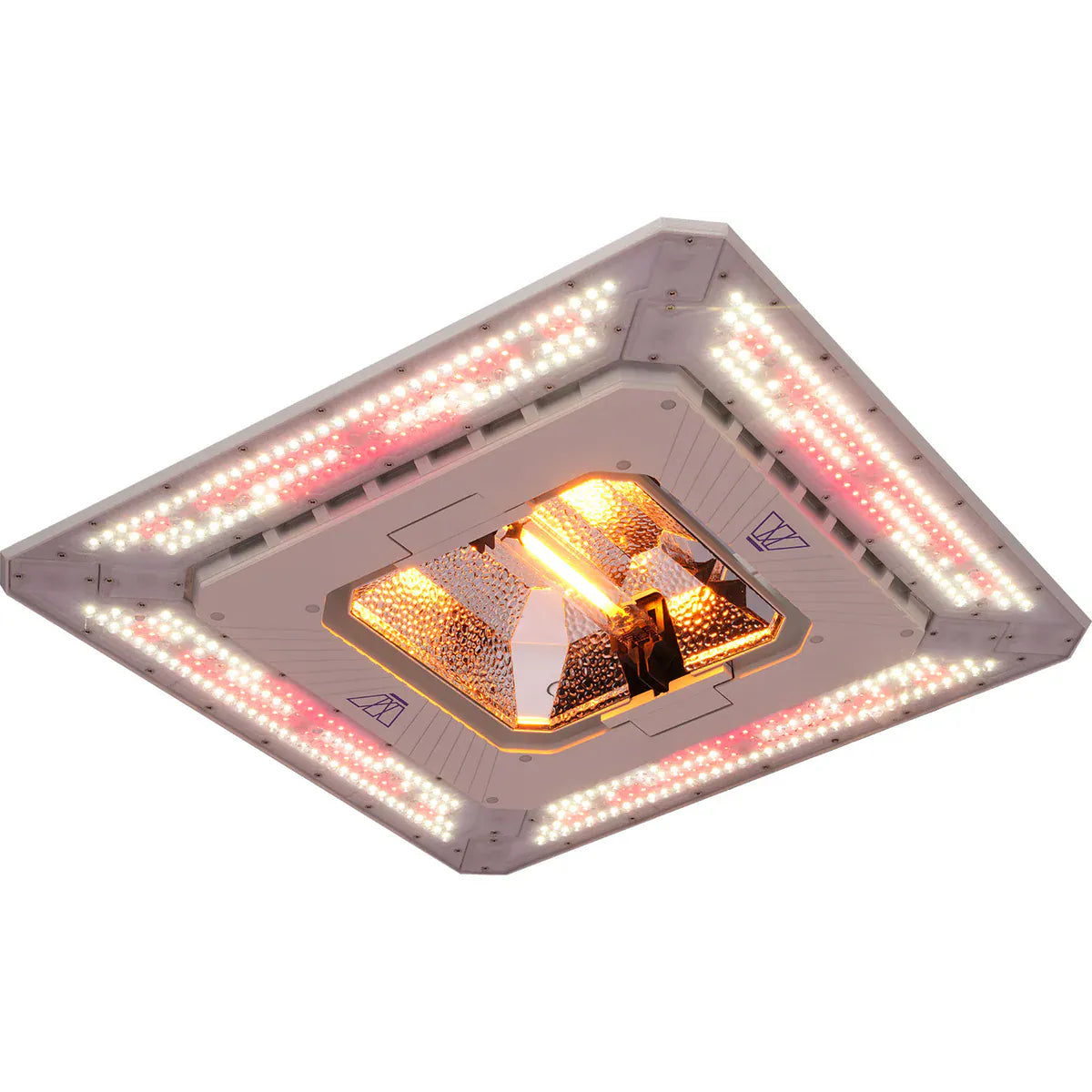

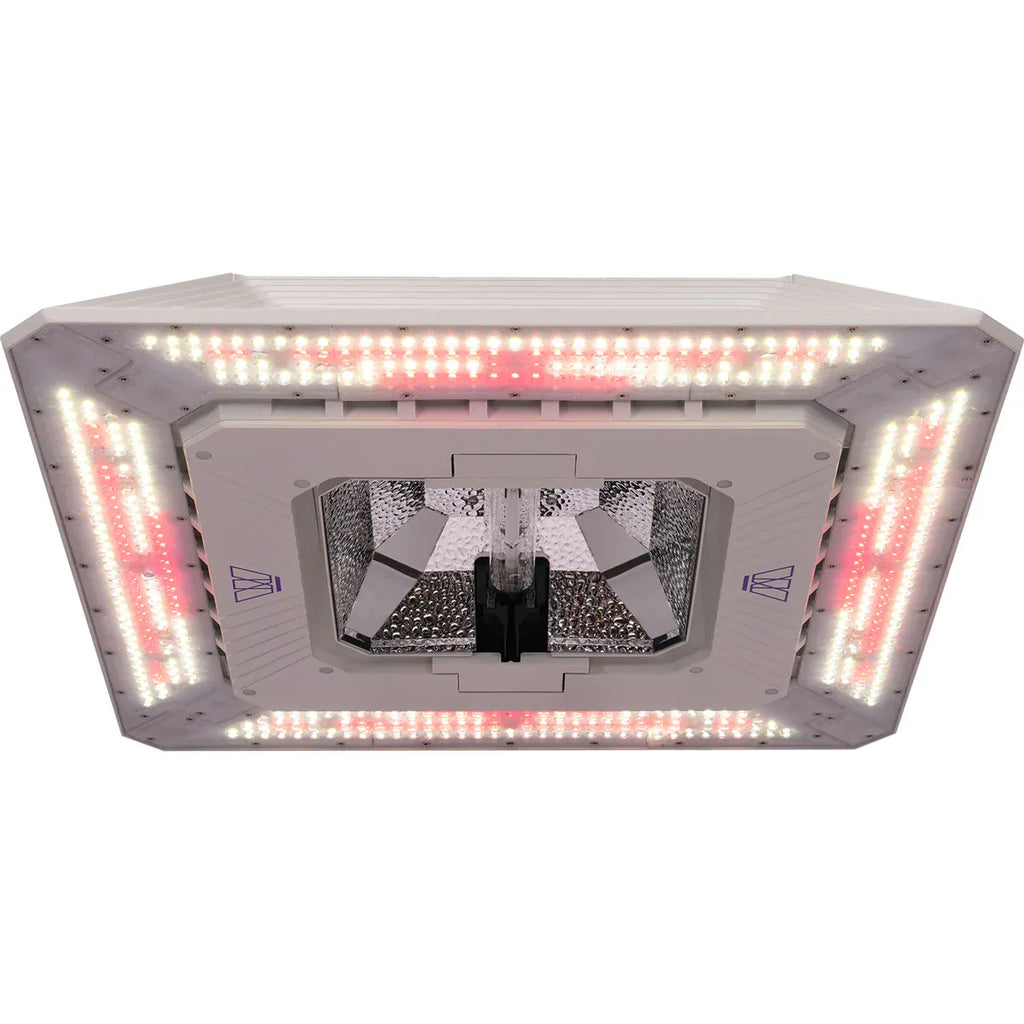

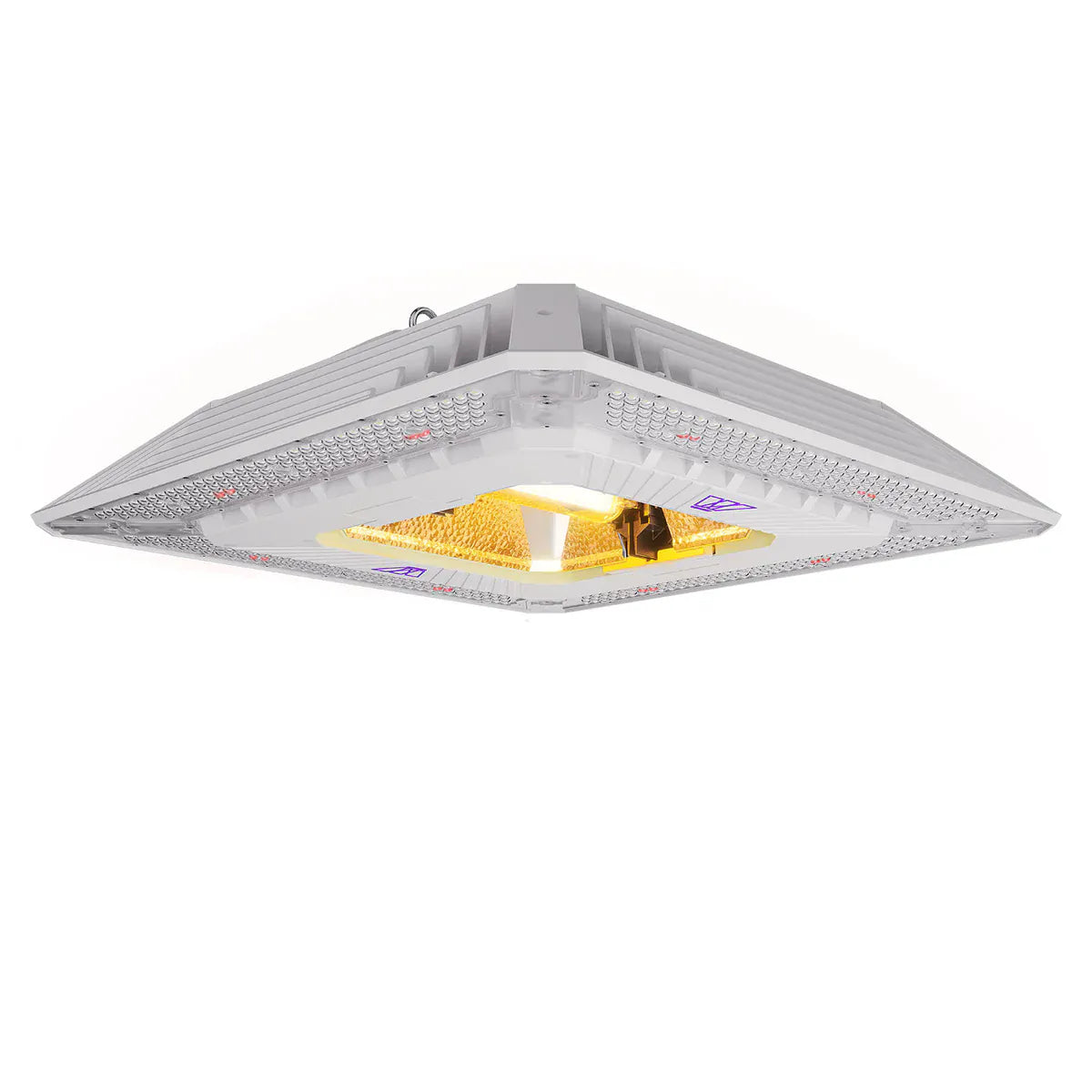

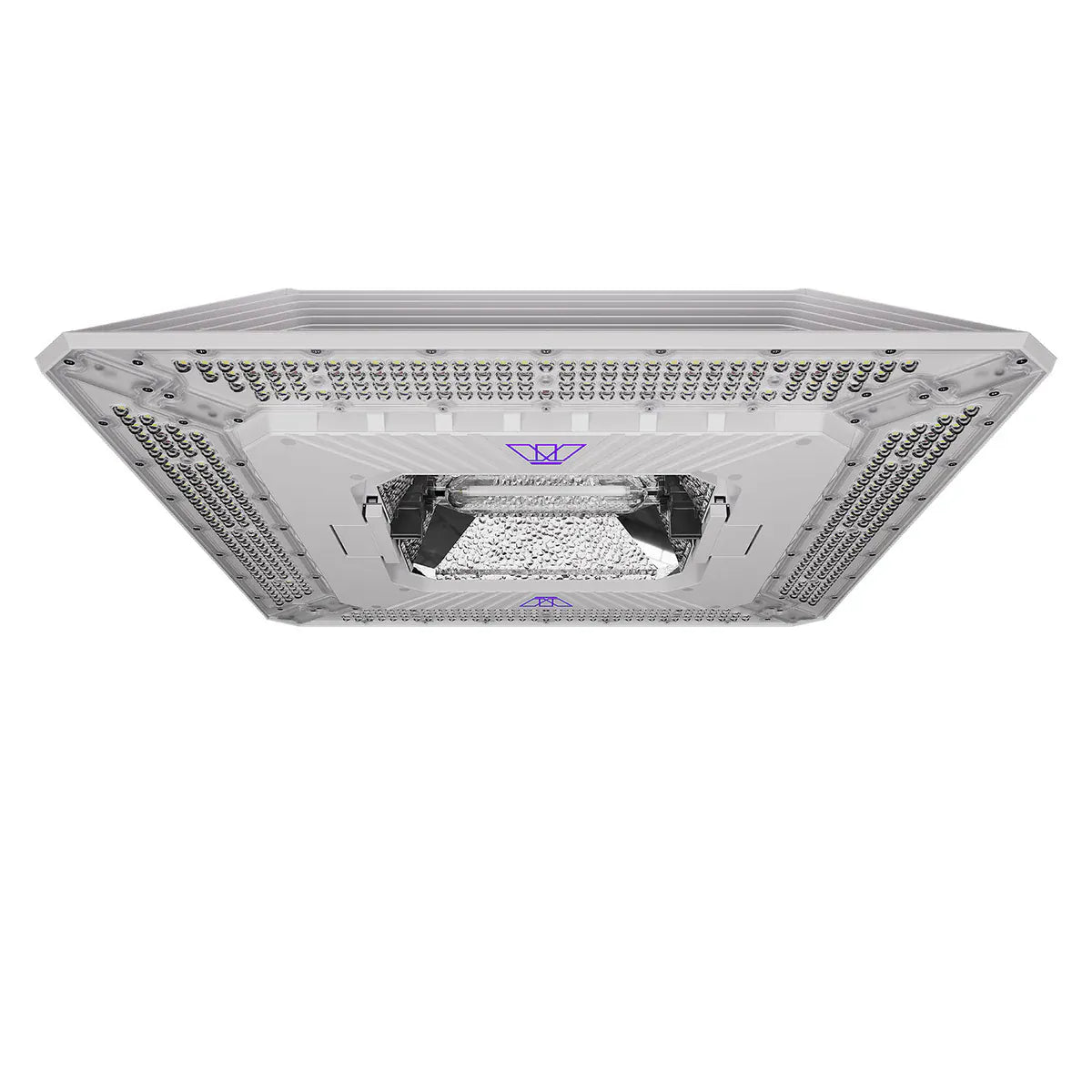

The Matrix Hybrid 1000W merges high-intensity HPS power with precision LED technology in one low-profile fixture. Designed to simulate the sun indoors, it delivers a nature-like canopy environment that drives richer terpene expression, denser flowers, and serious biomass production.
Fixture Mounting & Control Recommendations
Based on current R&D testing, the recommended mounting height for these fixtures is approximately 1.2 m above the canopy, with fixtures spaced around 1.2 m centre-to-centre. This configuration provides balanced light distribution across the canopy and helps achieve consistent PPFD levels throughout the grow area.
These recommendations may vary depending on your room dimensions and the target PPFD at canopy level. If needed, a custom light map can be created to optimise fixture layout and spacing for your specific grow environment.
Power & Controller Compatibility
- Fixtures ship with UK power cords as standard.
- The controller uses a US 120V plug and will require a simple plug adapter when used in the UK.
- Full dimming and channel control is available when using the Matrix MC5 Lighting Controller.
Dimming & Channel Control
Using the MC5 controller allows independent control over the three lighting channels, enabling growers to fine-tune intensity and spectrum for different stages of plant development.
- Main Red + White spectrum – Dims down to 25% (10% when using spray mode on the controller).
- Far Red (FR) – Dims down to 25%.
- HPS channel – Dims down to 50%.
Advanced Scheduling
The MC5 controller allows independent scheduling for each channel (Main, Far Red, and HPS). This means growers can program specific lighting behaviours throughout the photoperiod.
- Run the Far Red channel for a set number of minutes at lights-on or lights-off.
- Schedule different intensity levels during the day.
- Create custom lighting strategies to optimise plant responses and canopy development.
This level of control gives growers the flexibility to experiment with advanced lighting techniques and refine their cultivation strategy.
Using Far Red Lighting for Advanced Grow Strategies
The separate Far Red (FR) channel allows growers to take advantage of advanced lighting techniques that can influence plant morphology and development. When controlled using the Matrix MC5 Lighting Controller, the Far Red channel can be scheduled independently from the main lighting spectrum.
End-of-Day Far Red (EOD FR)
Many growers use End-of-Day Far Red by running the FR channel for a short period at lights-off. This technique can help plants transition more quickly into their night cycle by signalling sunset to the plant’s phytochrome system.
- Typical EOD Far Red duration: 5–15 minutes after lights off
- Encourages faster photoperiod response
- Can improve flowering efficiency in some cultivars
The Emerson Effect
When red and far-red light are used together, plants can sometimes photosynthesise more efficiently due to a phenomenon known as the Emerson Effect. This occurs when both photosystem I and photosystem II are stimulated simultaneously.
With the MC5 controller, growers can experiment with different strategies such as:
- Running Far Red briefly at lights-on
- Adding short FR pulses during the photoperiod
- Using FR during lights-off transitions
This level of control allows growers to fine-tune light signals and experiment with advanced cultivation techniques to optimise plant structure and flowering performance.
Power ready for UK and EU, but comes supplied with a UK 3-pin plug. For EU, you just need to run with a travel adaptor or rewire the UK 3 pin to the EU plug.
Why the Matrix Hybrid Is a Game Changer
- True Dual Spectrum Power – The 400W HPS delivers warm-spectrum intensity and radiant heat for deep canopy penetration and explosive flowering.
- Precision LED Output – 560W full-spectrum LED promotes strong structure, tight internodes, and enhanced flavour compounds.
- Integrated 40W Far-Red Channel – Supports the Emerson Effect and can be used for End of Day (EOD) flowering initiation.

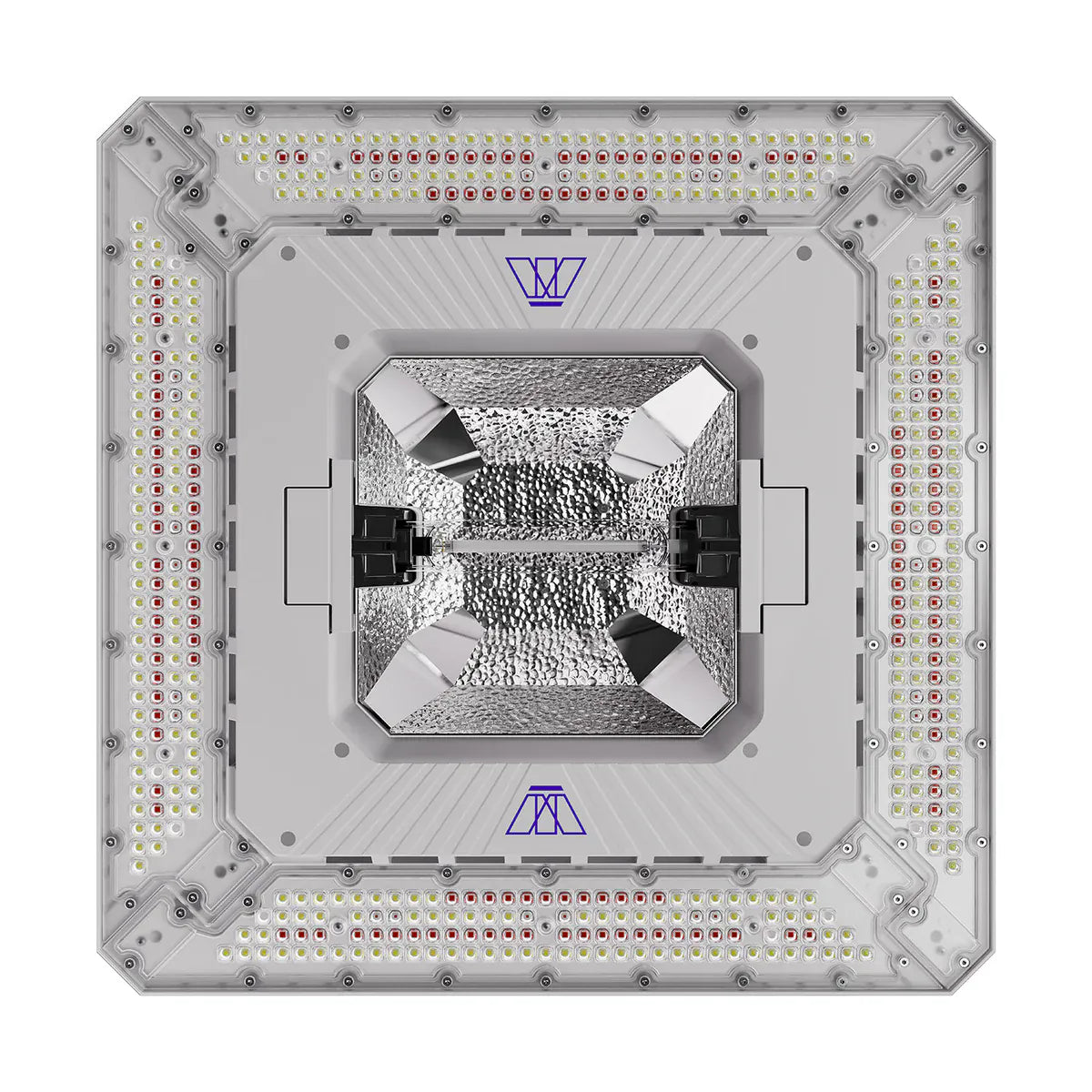

- Triple Uniformity Technology – Advanced LED micro-lenses combined with HPS optical distribution ensure uniform PPFD, spectrum and temperature across the canopy.
- Smart Tri-Channel Control (MC5 Required) – Independently adjust LED, HPS and Far-Red outputs to dial in veg, bloom or advanced spectrum strategies when paired with the Matrix MC5 Controller.
- Liquid Optics Cooling Design – Sealed LED system protects diodes from dust and moisture while stabilising operating temperatures.
- Optimised Microclimate – Radiant HPS heat balanced with LED cooling helps create an ideal leaf VPD, supporting faster photosynthesis and reduced mould risk.
The Ultimate Lighting Strategy
LED Spectrum (560W)
Primary daily light source throughout the cycle. Supports efficient photosynthesis, balanced morphology and stable canopy development.
HPS Spectrum (400W)
Best deployed during flowering. Enhances biomass accumulation, canopy penetration and radiant heat input for bigger, fuller blooms.

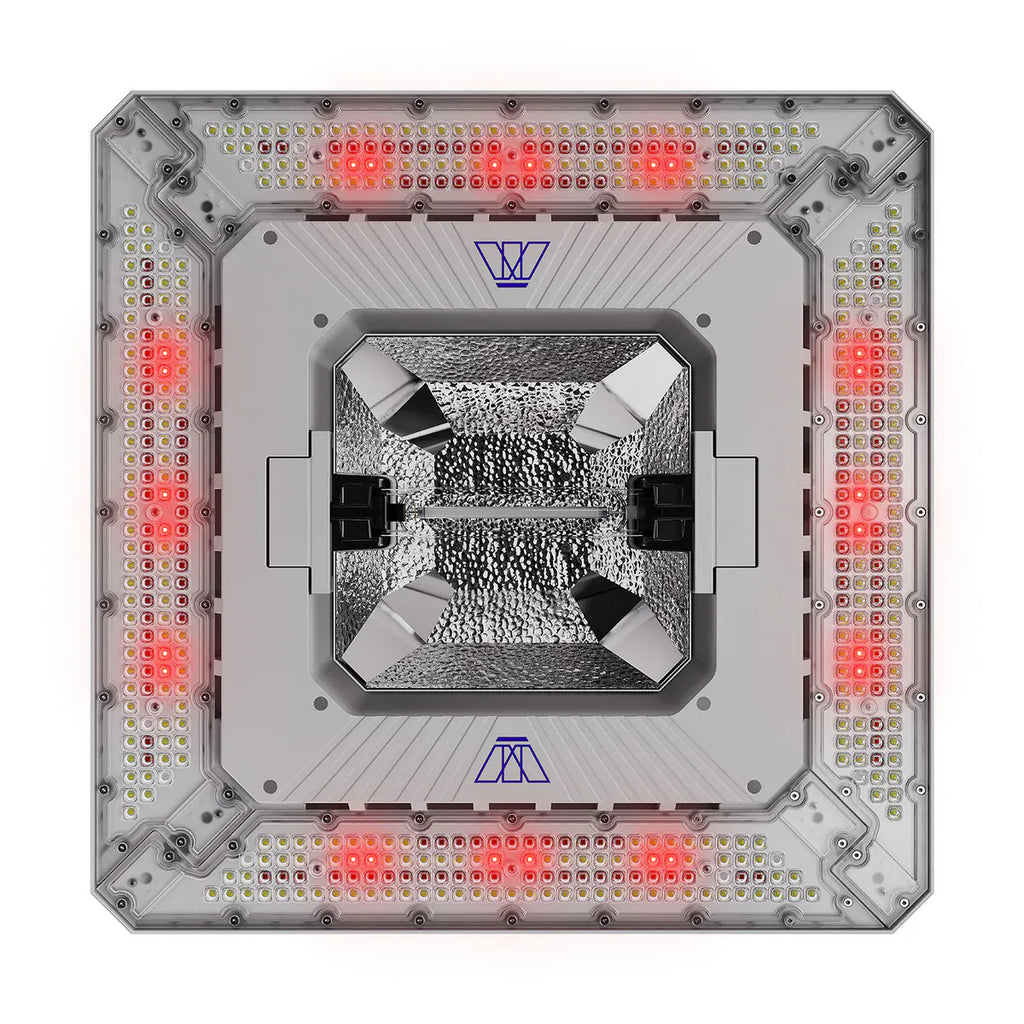

Far-Red Spectrum (40W)
Use during flowering to improve photosynthetic efficiency or apply at End of Day (EOD) to accelerate flowering response.
Combined Spectrum (LED + HPS + FR)
Creates a high-photon-density, sun-like environment with integrated radiant heat and broad spectral coverage for maximum flower quality.
Reminder: To control and schedule these individual channels, the Matrix MC5 Controller is required. Without it, the fixture runs only at full power or completely off.
Sealed Build. Commercial Durability.
The fully enclosed Liquid Optics LED design protects internal components from dust and moisture while delivering precise passive cooling. This extends diode lifespan, ensures stable performance, and keeps maintenance minimal in demanding grow environments.
Technical Specifications
| Model | Matrix Hybrid 1000W |
| Total Input Power | 1000W (560W LED + 400W HPS + 40W Far-Red) |
| Control | RS485 Tri-Channel Control (Requires MC5 Controller) |
| Thermal Management | Passive Cooling with Liquid Optics LED Design |
| Dimensions | 550mm x 550mm x 119mm |
| Weight | 14.9kg |
| HPS Lamp | 400W DE HPS (2000K) |
| Warranty | 5-Year Fixture Warranty (1-Year on HPS Lamp) |
| Certifications | CE, DLC, FCC |
| Plug Type | UK 3-Pin Plug (Supplied Fitted) |
Who Is It For?
- Growers who want HPS flower density with LED efficiency
- Commercial rooms seeking uniform canopy penetration
- Advanced growers using spectrum manipulation strategies
- Facilities looking to optimise VPD and terpene production
Checkerboard inspired. Matrix perfected.
Bring the power of the sun indoors.
