AC Infinity ionGrid T22 – 130W LED Grow Light
The ionGrid T22 brings cutting-edge halo lighting to compact grow spaces. With its circular design, Samsung LM301H diodes, and full-spectrum output, it delivers uniform coverage and deeper canopy penetration — boosting yields for herbs, botanicals, and aromatic crops at every stage.
Why Choose the T22?
- Innovative halo form factor spreads light evenly across 2×2 ft (≈60×60 cm) spaces
- Full-spectrum blend (white, red, IR) for germinación, vegetative growth, and floración (germination → flowering)

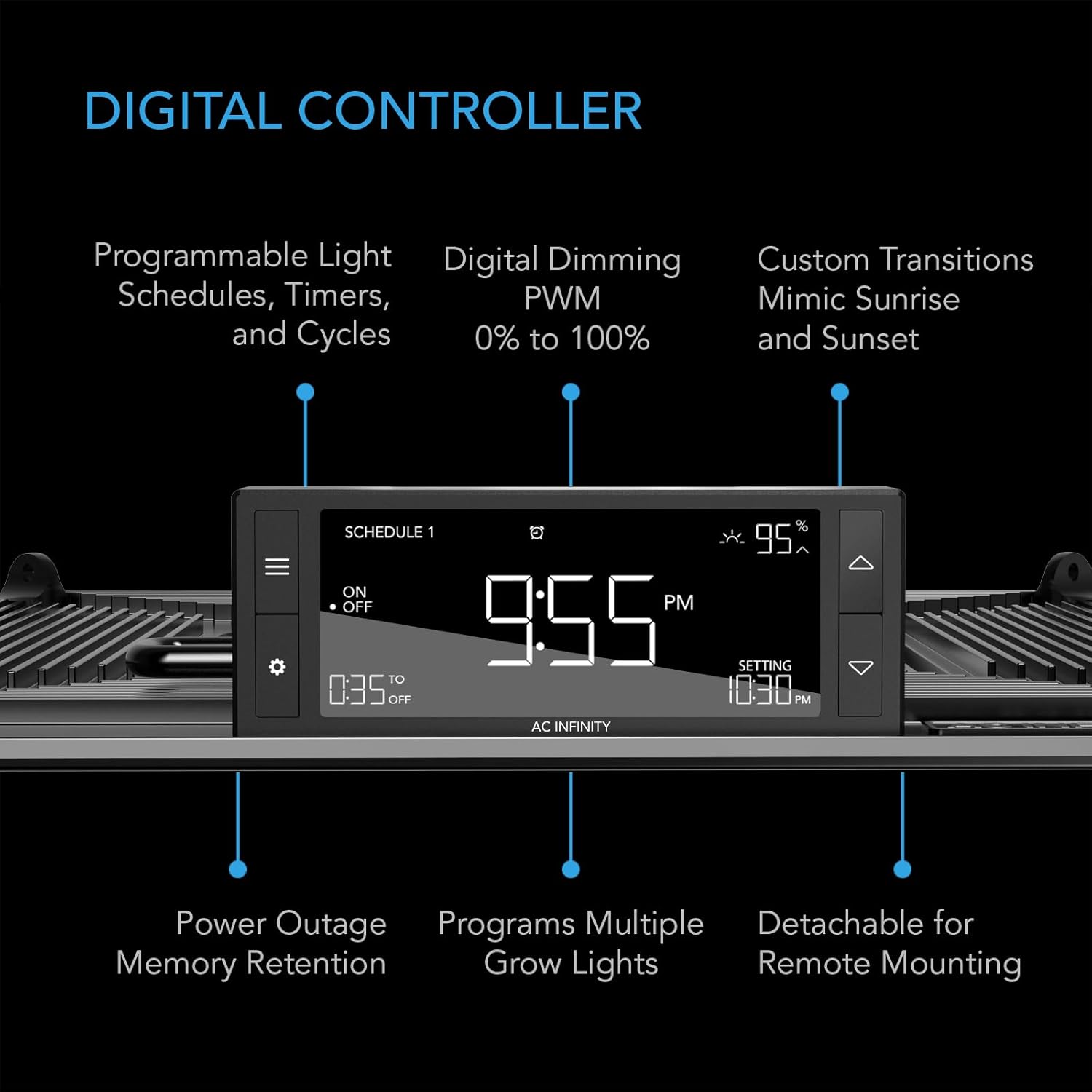

- Digital controller with 0–100% PWM dimming, timers, cycles, and sunrise/sunset transitions
- Daisy-chain ports let you sync multiple units together

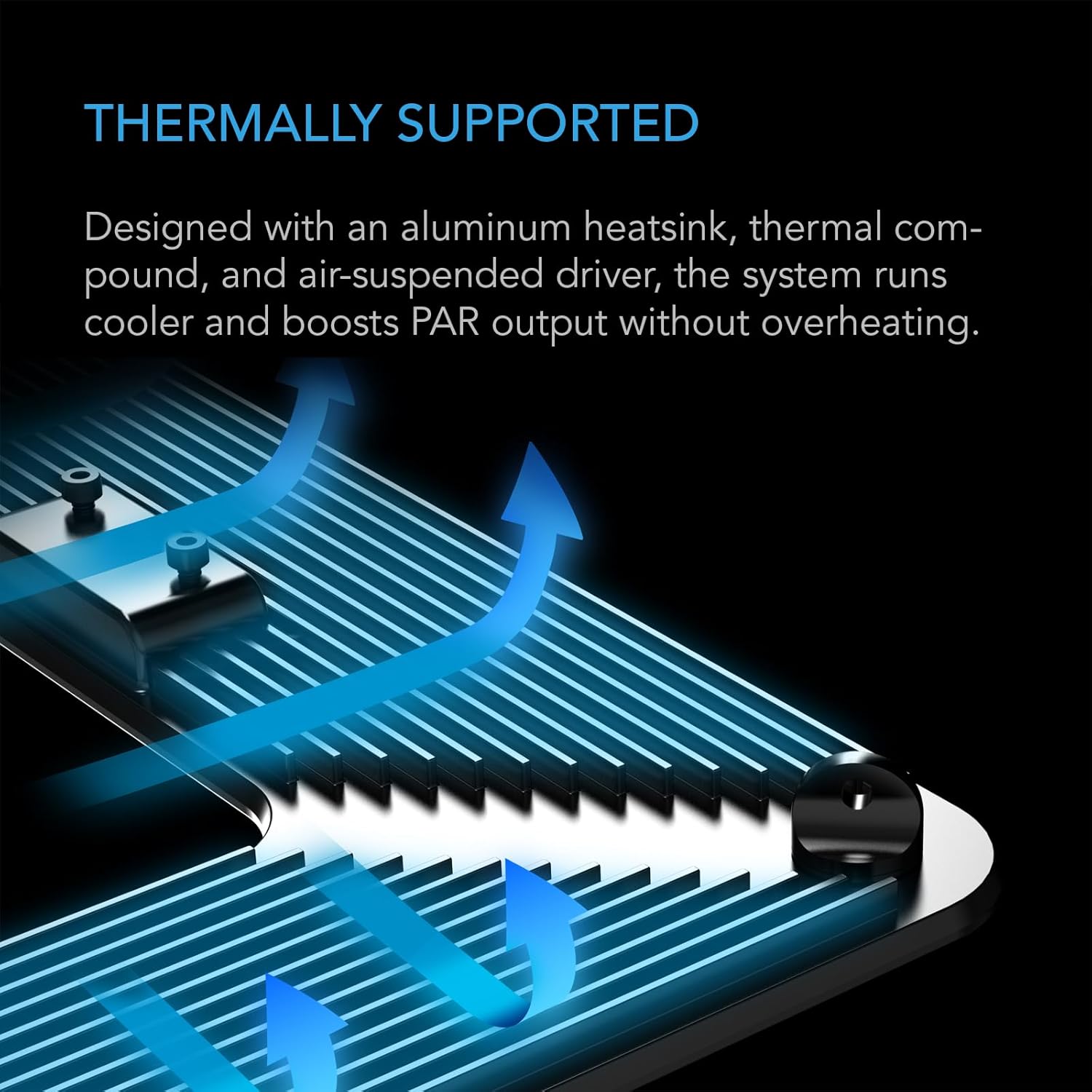

- Air-suspended driver and aluminium heatsink = silent, passive cooling and extended diode life
- Part of the UIS™ ecosystem — integrate with smart controllers for full Umweltsteuerung (environmental control)

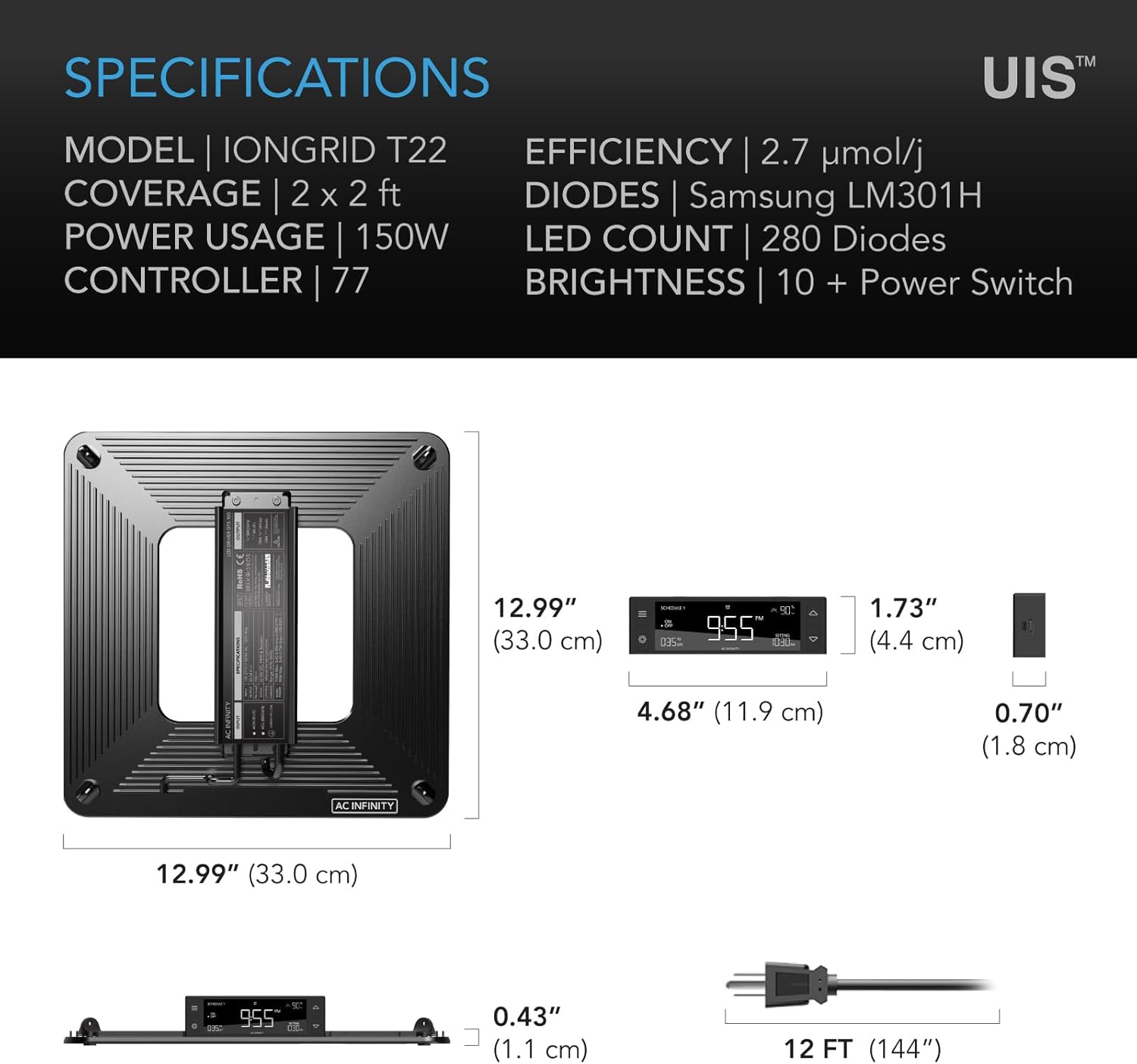

Technical Specs
| Specification | Value |
|---|---|
| Wattage | 130 W |
| LEDs | Samsung LM301H (280 diodes) |
| Spectrum | 3000K, 5000K, 660nm red, 730nm IR |
| Efficiency | 2.7 µmol/J |

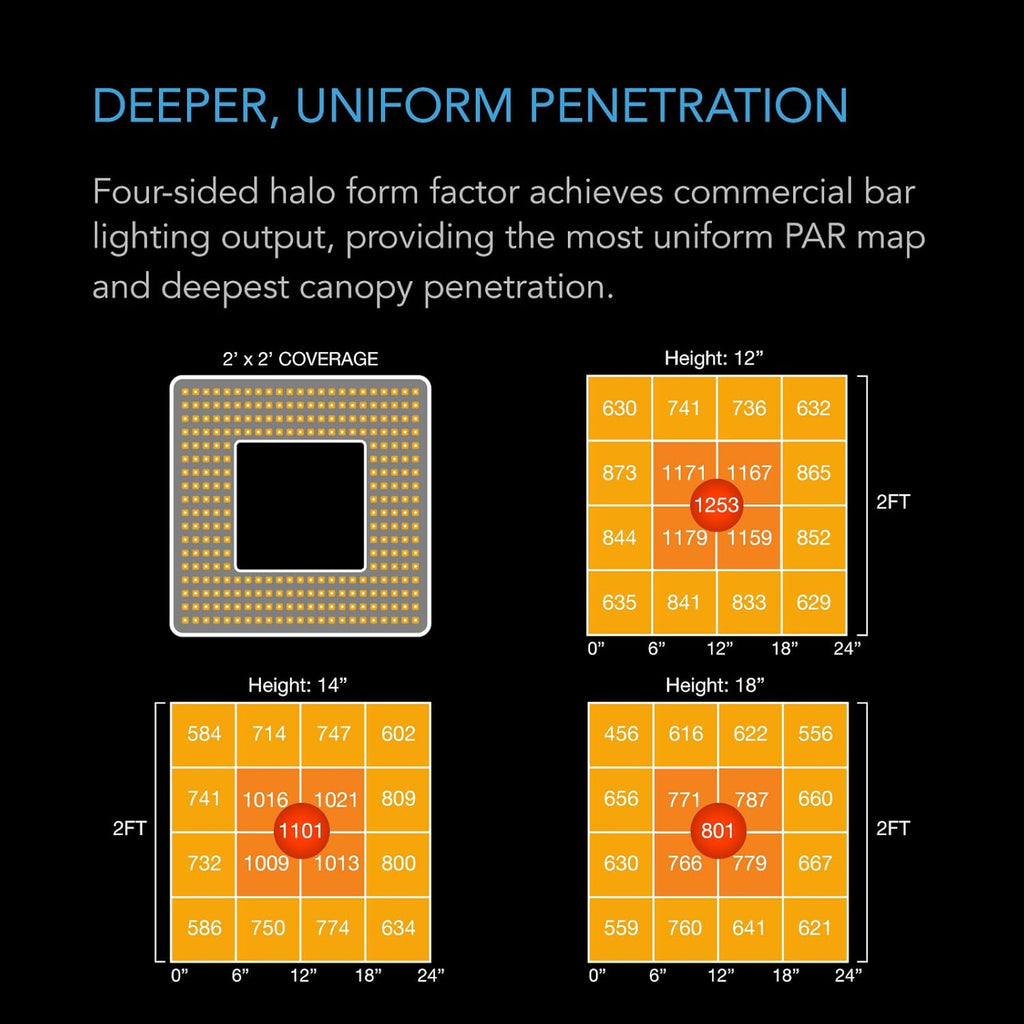

| PPFD | 1253 µmol/m²/s (at centre, 2×2 ft coverage) |
| Coverage | 2 × 2 ft (≈60 × 60 cm) |
| Voltage | 100–277 V AC, 50/60 Hz |
| Amps | 1.17 A @120 V • 0.58 A @240 V • 0.51 A @277 V |
| Operating Temp | 0–40 °C (32–104 °F) |
| Operating Humidity | 35–85% RH |
| Life Expectancy | 50,000 hours |
| Dimensions | 33 × 33 × 1.1 cm |
| Controller | Digital with detachable mount |
T22 vs S22 – What’s the Difference?
Both the ionGrid T22 and S22 share the same halo design, built for uniform coverage in tight grow spaces. The difference comes down to power and control:
| Feature | ionGrid T22 | ionGrid S22 |
|---|---|---|
| Wattage | 130 W | 100 W |
| Controller | Digital (PWM, timers, cycles, sunrise/sunset) | Onboard dimming knob (UIS compatible) |
| Coverage | 2×2 ft, stronger canopy penetration | 2×2 ft, lighter intensity |
| Best For | Growers wanting full scheduling & daisy-chain control | Entry-level setups or pairing with external UIS controller |
