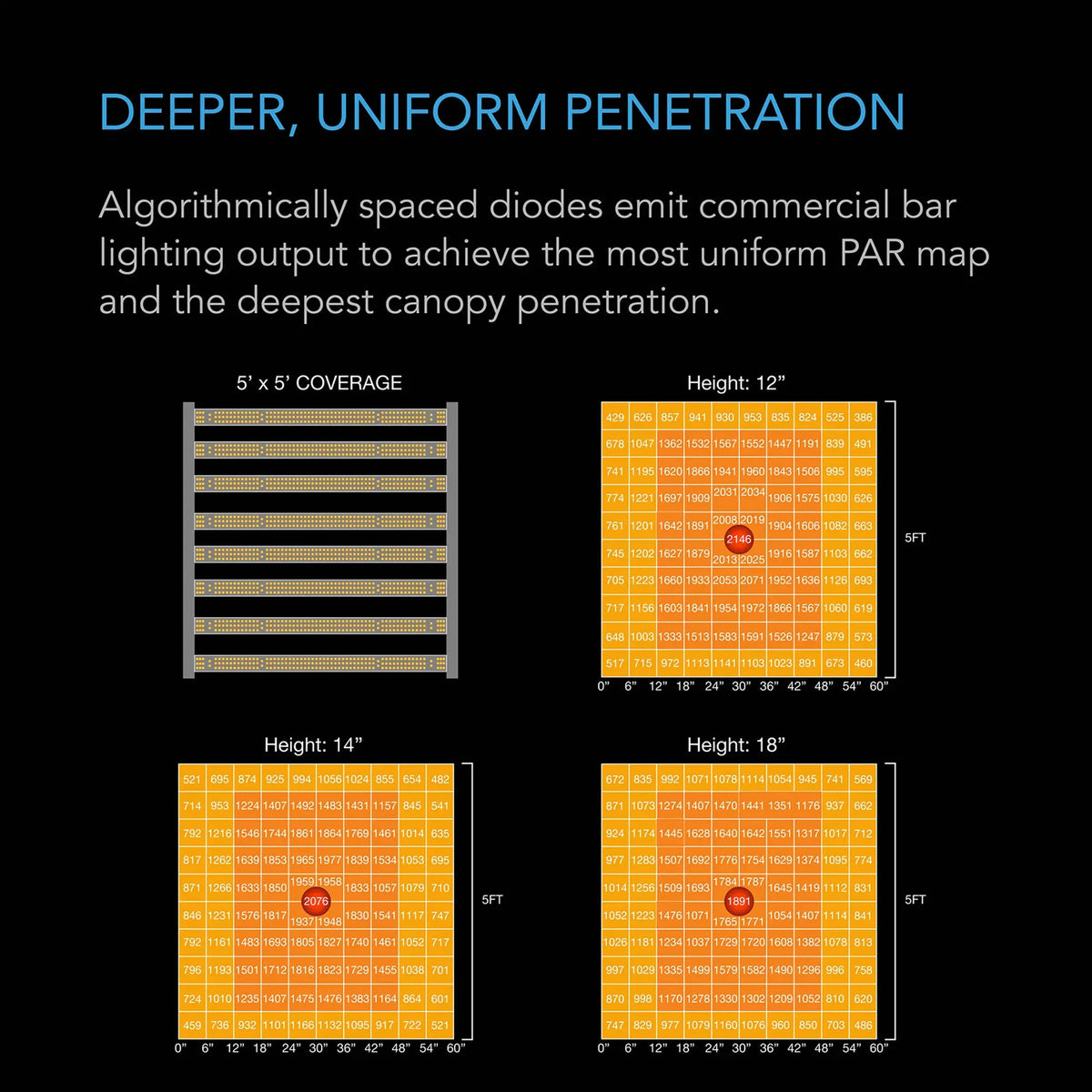

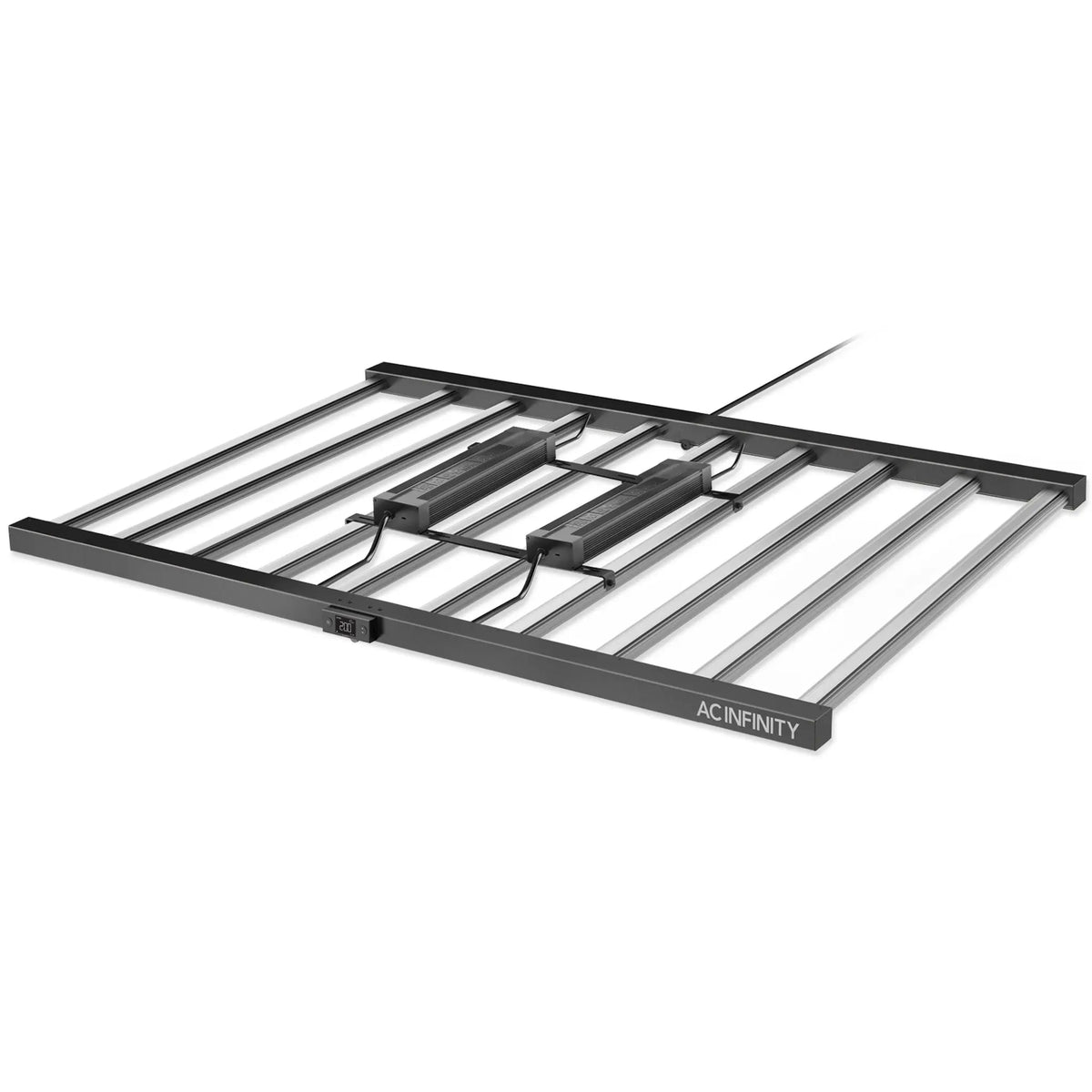

The AC Infinity IonFrame EVO10 is the largest fixture in the IonFrame EVO range — a 1000W commercial-grade LED grow light built for growers who need real coverage across a 6x6ft flowering footprint (7x7ft in veg). It runs genuine Samsung LM301H EVO diodes — the most efficient horticulture chip in AC Infinity's line-up, ahead of standard LM301H, LM301B, and Bridgelux 3030 generations — laid out on an algorithmically spaced bar fixture that kills hotspots and pushes light deep into the canopy.
Flagship Commercial Output: 3710 diodes, 2146 PPFD and a full 395–730nm spectrum (including dedicated UV and far-red) in one fixture — enough output to run a full 6x6ft commercial-scale room from a single light.
Why growers choose the EVO10:
- Genuine Samsung LM301H EVO diodes rated at 3.14 µmol/J — the highest efficiency chip AC Infinity offers

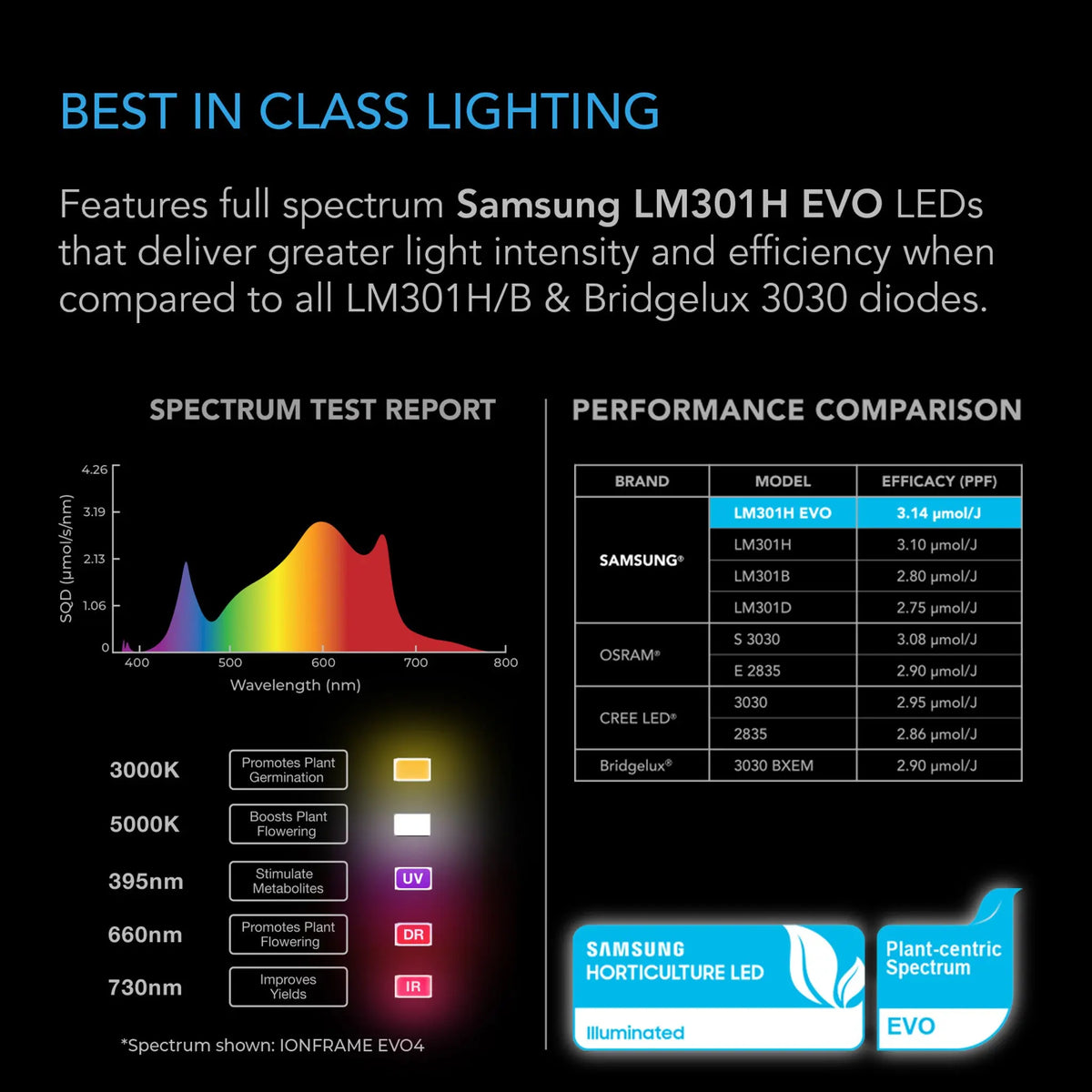

- Full spectrum output: (2360) EVO 3000K, (1200) EVO 5000K, (10) 395nm UV, (130) 660nm red, and (10) 730nm far-red diodes

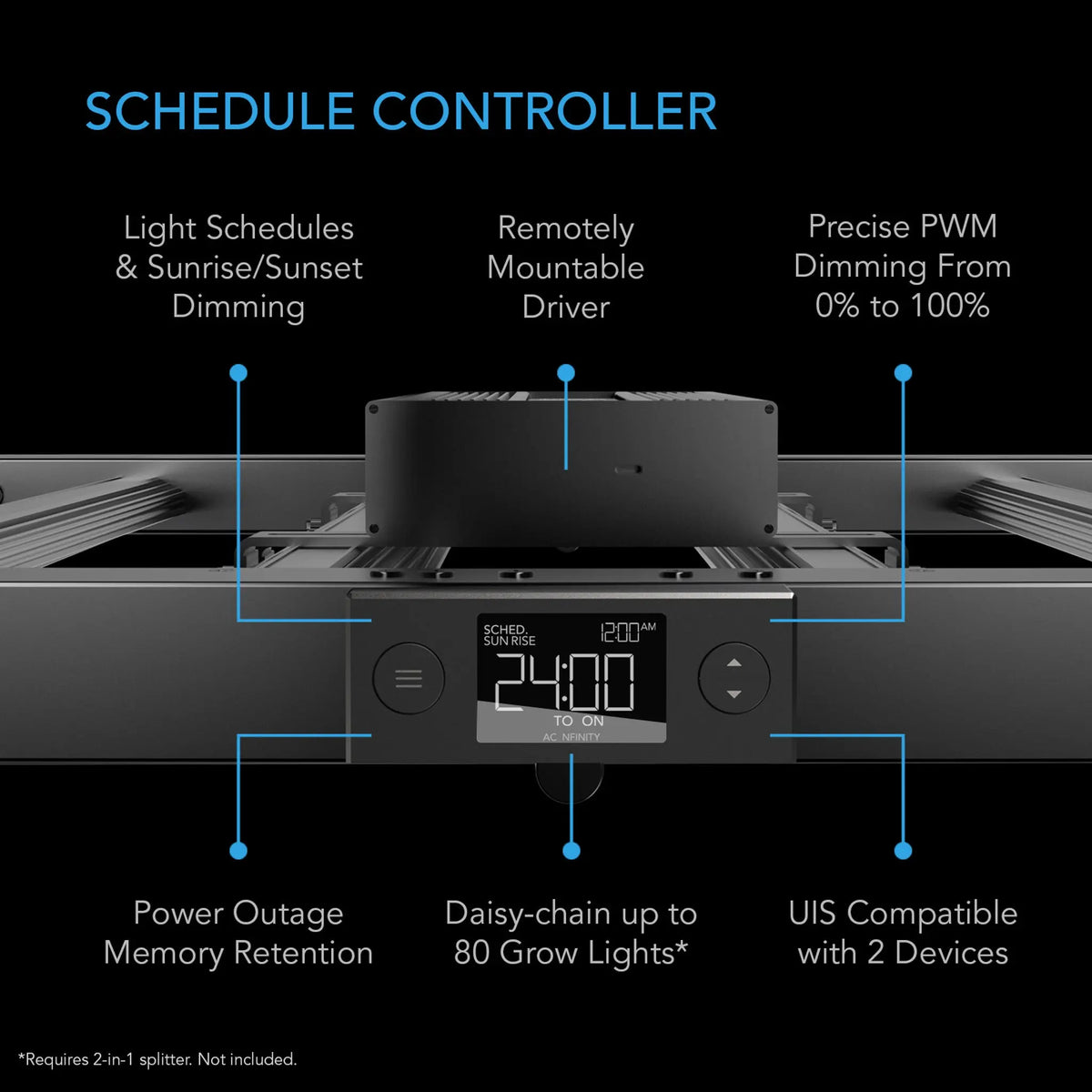

- Built-in schedule controller with sunrise/sunset dimming and 10 brightness levels
- UIS™ platform compatible — pair with a UIS controller for full WiFi app control, automation and grow recipes
- Removable passive-cooling driver for flexible mounting and heat management; daisy-chain up to 80 fixtures
- IP-65 rated, steel and aluminium build for humid grow room environments
- ETL Certified (#5021417) for electrical safety
| Full Specifications | |
| Model | AC-IF10K |
| Coverage | 6 x 6 ft (Flower) / 7 x 7 ft (Veg) |
| Light Dimensions | 112.0 x 113.0 x 8.6 cm |
| Driver Dimensions | 18.2 x 4.0 cm (removable) |
| Diodes | Samsung LM301H EVO – 3710 total |
| Spectrum | 395nm, 660nm, 730nm, 3000K, 5000K |
| Efficiency | 3.14 µmol/J |
| PPFD | 2146 |
| Wattage | 1000W |
| Voltage / Frequency / Amps | 100-277V AC / 50-60Hz / 5.0A x2 |
| Controller | Built-in Schedule Controller (UIS-compatible for upgrade) |
| Waterproof Rating | IP-65 |
| Operating Range | 32-140°F, 35-85% RH |
| Life Expectancy | 50,000 hours |
| Certification | ETL Certified #5021417 |
Add a Smart Controller: The EVO10 ships with a built-in schedule controller, but it's also fully UIS™ platform compatible. Upgrade to a UIS Controller 69 Pro, 69 Pro Plus, or the AI+ Controller for full WiFi app control, automated schedules and grow recipes. Browse the full range in AC Infinity UIS Controllers.
Compare the IonFrame EVO Range
| Model | Coverage (Flower) | Wattage | Price |
| IonFrame EVO3 | 2 x 4 ft | 280W | £339.00 |
| IonFrame EVO4 | 3 x 3 ft | 300W | £369.00 |
| IonFrame EVO6 | 4 x 4 ft | 500W | £559.00 |
| IonFrame EVO8 | 5 x 5 ft | 730W | £799.00 |
| IonFrame EVO10 (this light) | 6 x 6 ft | 1000W | £1,059.00 |
Build Your Complete Grow Setup: Pair the EVO10 with a properly sized Grow Tent, keep it running clean with an AC Infinity Extraction Kit, and dial in your room with our Climate Control range (heaters, humidifiers & dehumidifiers).
FAQs
- Does it come with a controller? Yes — a built-in schedule controller with sunrise/sunset dimming is included. A UIS smart controller is optional for WiFi control.
- Is it dimmable? Yes, 10 brightness levels via the built-in controller (or app control with a UIS controller).
- What plug does it use? UK 3-pin plug, 100-277V AC, so it's ready to use straight out of the box in the UK.
- Can I link multiple lights together? Yes, the EVO10 supports daisy-chaining up to 80 fixtures using splitter dongles (sold separately).
