The Dosatron DMIX25 Dynamic Mixer is designed to be installed inline after a Dosatron injector to maximise the homogenisation of the water/concentrate mixture. Recommended for use with the Dosatron D25WL2IEVVFPO polymer dosing unit, and also suitable for other applications where dynamic in-line mixing is required.

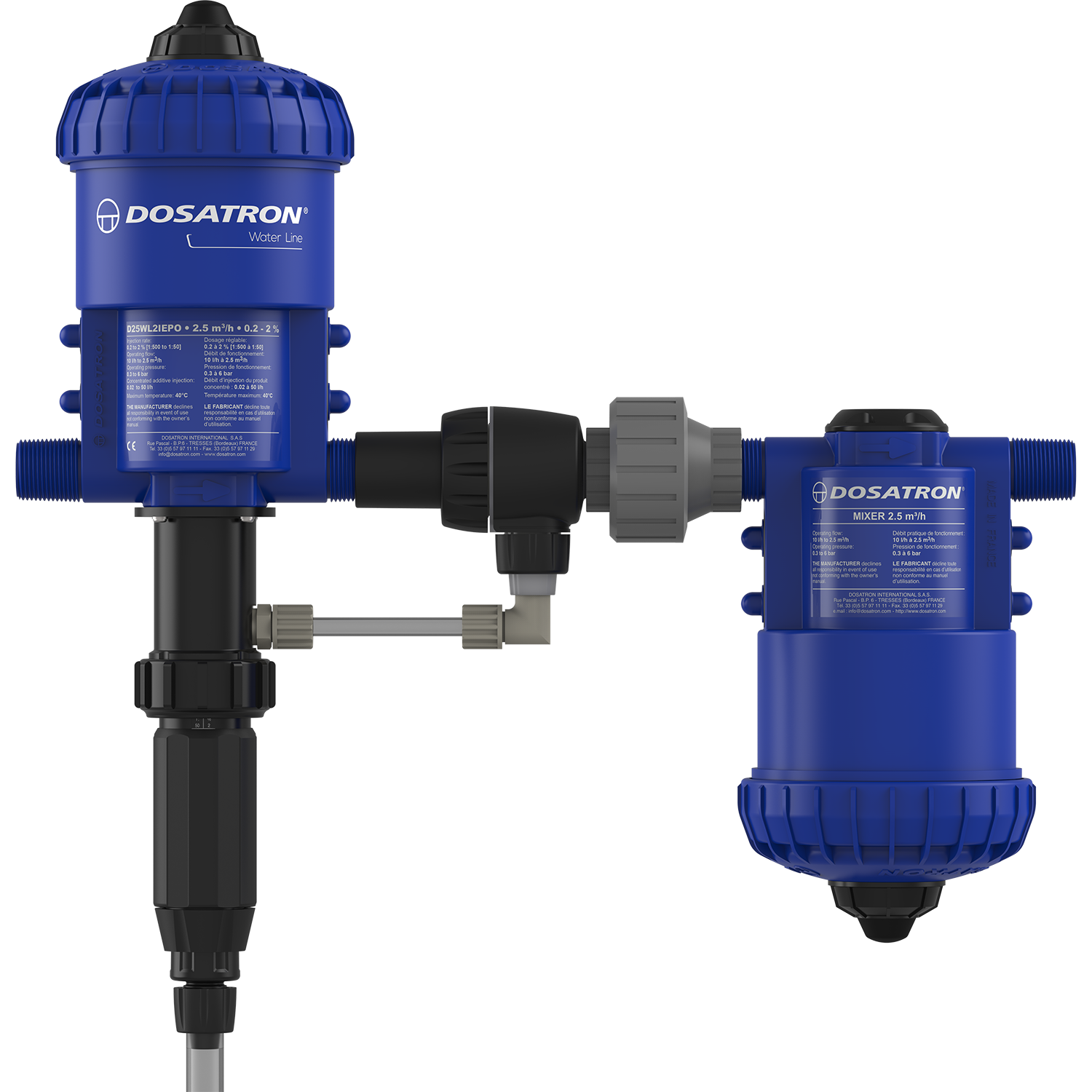

Powered entirely by water flow — no electricity required. When used with the D25WL2 polymer dosing injector, the DMIX25 provides maximum homogenisation of the water/polymer mixture, optimising the separation of solid and liquid particles and improving overall system performance.
Easy to install and compatible with standard ¾" BSP fittings.
Specifications
| Model | DMIX25 |
| Compatible With | Dosatron D25WL2IEVVFPO, D25WL2IEPO, and other D25WL applications |
| Flow Rate | 10 to 2,500 litres per hour |
| Working Pressure | 0.3 to 6 bar |
| Connections | ¾" BSP male threaded inlet & outlet |
| Maximum Temperature | 40°C |
| Seals | VF / Viton |
| Power Source | Water powered — no electricity required |
| Weight | 1.5 kg |
